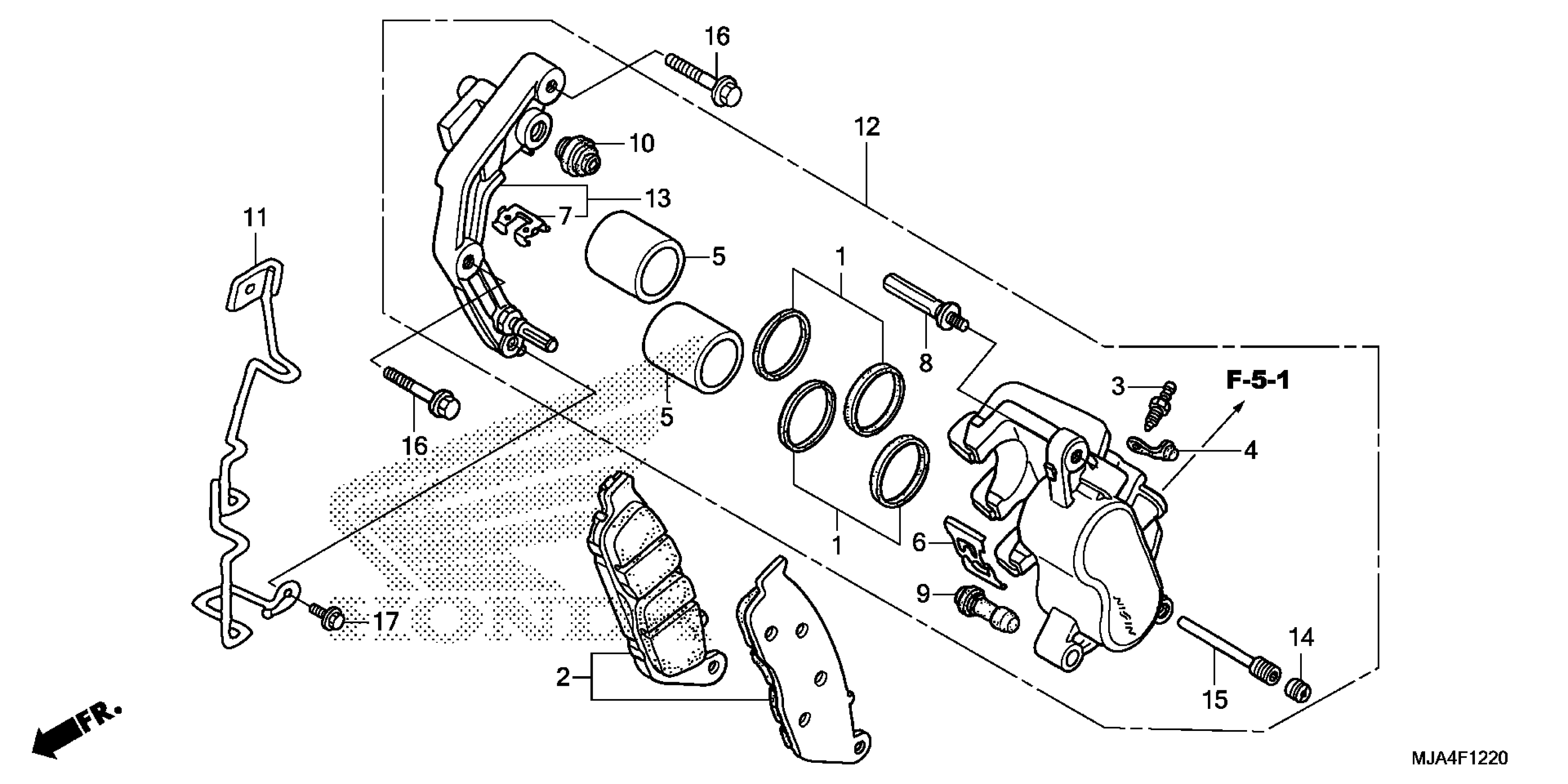

Honda VT750RSAC (12) SHADOW RS, JPN, VIN# JH2RC581-CK200001 FRONT BRAKE CALIPER (3) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.24

PAD SET, FR.

06455-MCK-A02

$37.20

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PISTON (NISSIN)

45107-MN5-006

$34.00

SPRING, PAD (NISSIN)

45108-ML7-922

$5.75

RETAINER

45112-MT4-006

$5.41

BOLT A, PIN (NISSIN)

45131-ML7-921

$13.86

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

GUIDE, SPEED SENSOR CORD

45136-MCL-000

$18.80

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MEG-006

$299.00

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MEG-006

$103.39

PLUG, PIN

45203-MG3-016

$4.76

PIN, HANGER (NISSIN)

45215-ML7-922

$9.51

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.29

BOLT, FLANGE (6X12)

90130-ML0-730

$2.77
