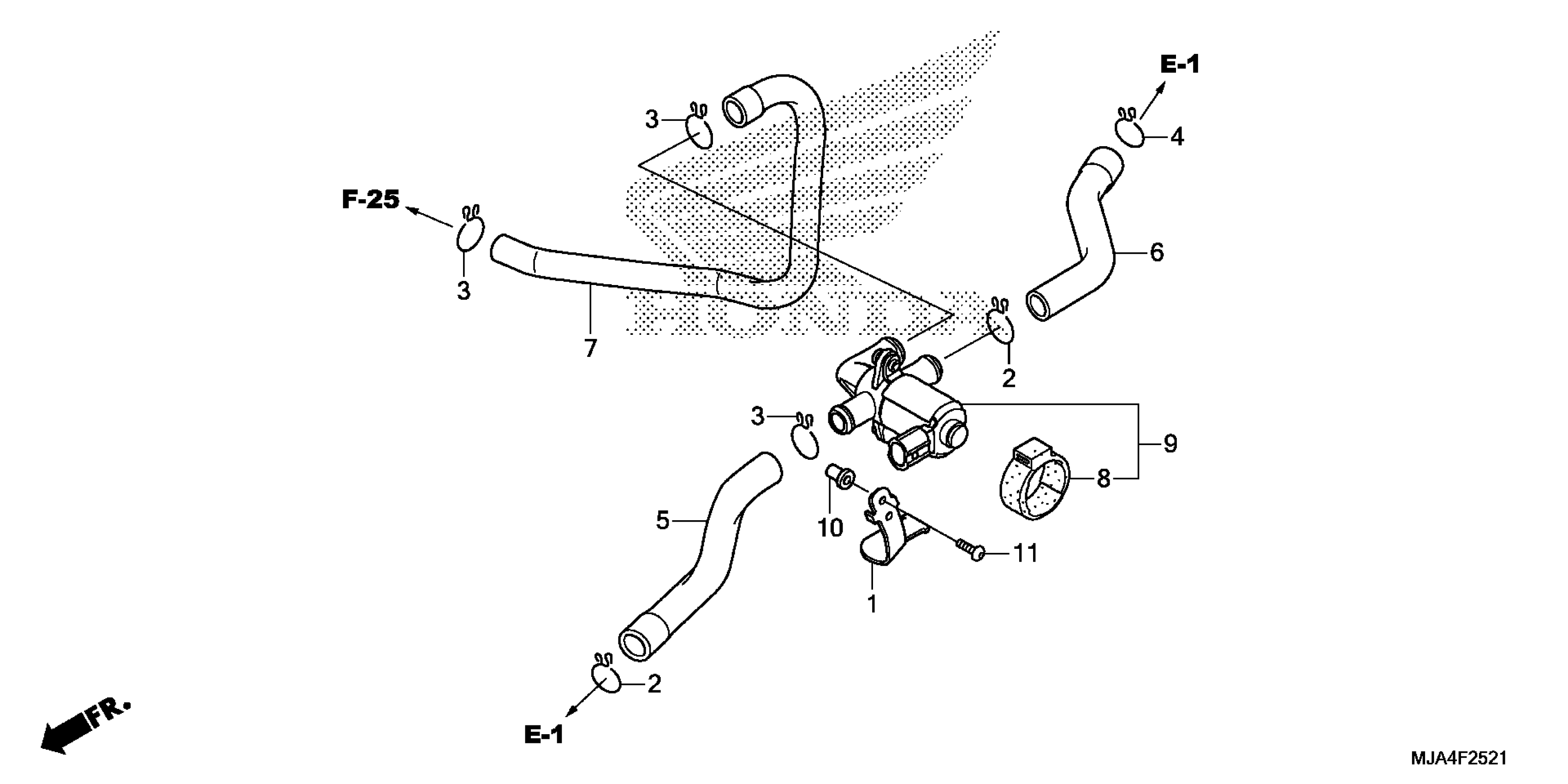

Honda VT750RSAC (12) SHADOW RS, JPN, VIN# JH2RC581-CK200001 AIR INJECTION VALVE (2) Diagram

#

Description

Price

1

STAY, EX. AIR INJECTION VALVE

17269-MGR-670

$4.72

2

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

3

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

4

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

5

TUBE A, AIR INJECTION SOLENOID VALVE

18651-MGR-670

$7.69

6

TUBE B, AIR INJECTION SOLENOID VALVE

18652-MGR-670

$16.59

7

TUBE C, AIR INJECTION SOLENOID VALVE

18653-MGR-670

$13.31

8

SUSPENSION, SOLENOID VALVE

36172-MCA-A61

$3.26

9

VALVE ASSY., EX. AIR INJECTION This part replaces 36450-MCA-A62.

36450-MCA-A63

$65.38

9

VALVE ASSY., EX. AIR INJECTION

36450-MCA-A63

$65.38

10

NUT, COWL SETTING (6MM)

90114-KAS-900

$5.04

11

SCREW, PAN (6X20)

90118-MEJ-J00

$2.13
