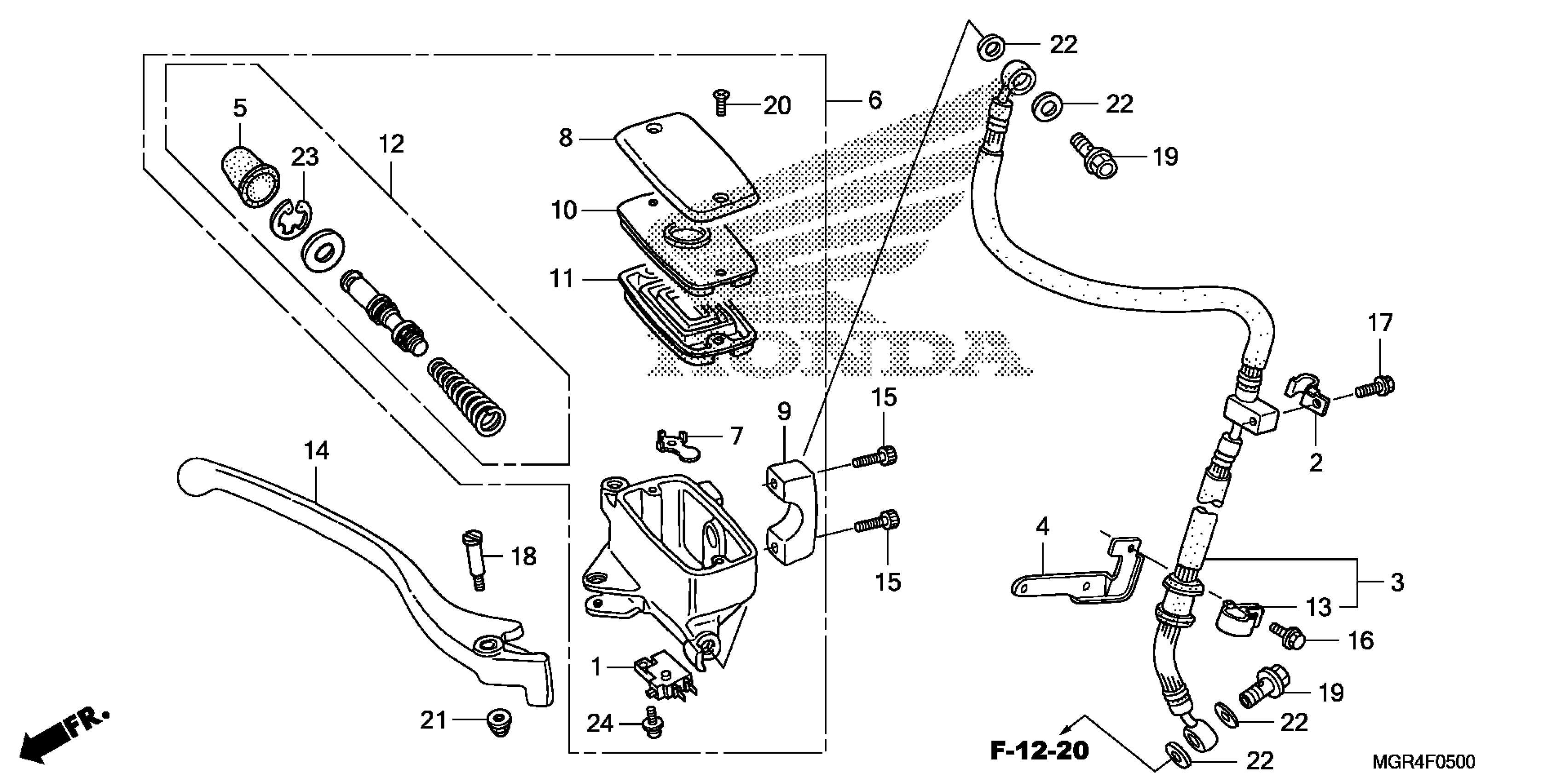

Honda VT750RSAC (10) SHADOW RS, JPN, VIN# JH2RC581-AK000001 TO JH2RC581-AK099999 FRONT BRAKE MASTERCYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.26

HOSE, FR. BRAKE

45124-MGR-671

$98.66

BRACKET, L. FR. HOSE CLIP

45138-MCL-J00

$5.23

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MEG-006

$203.82

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MEG-305.

45510-MEG-006

$203.82

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM4-016

$18.48

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.80

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$50.74

CLAMP A, BRAKE HOSE

52115-MCA-A20

$4.03

LEVER, R. HANDLE (COO)

53175-MR1-305

$14.79

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.79

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

BOLT, FLANGE (6X25)

90106-MEJ-D00

$2.05

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

SCREW, FLAT (4X12)

90158-MT7-000

$2.15

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
