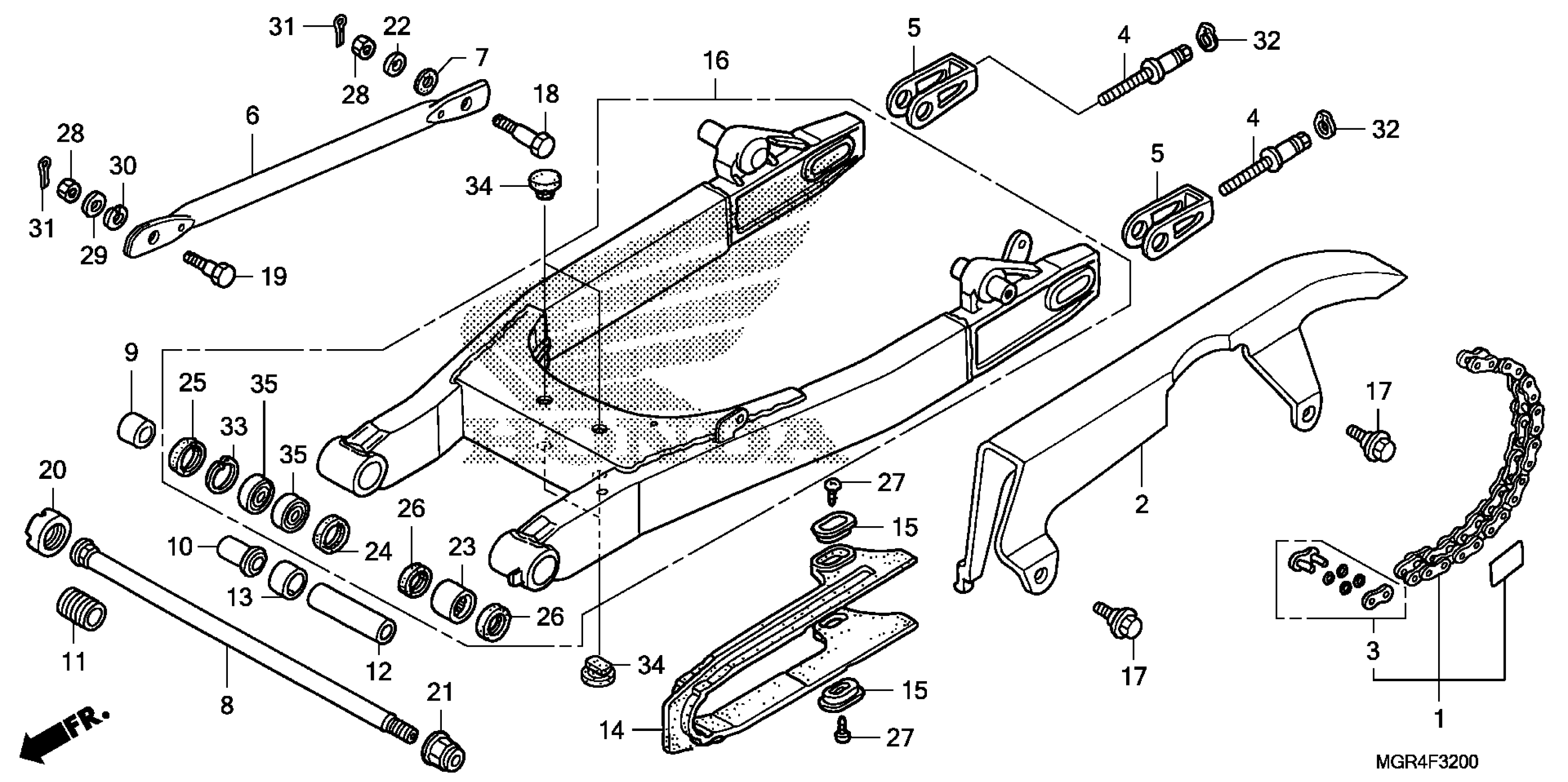

Honda VT750RSA (10) SHADOW RS, JPN, VIN# JH2RC580-AK000001 TO JH2RC580-AK099999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (DID525V8-120ZB) (DAIDO) (STANDARD LINK 112L)

40540-MY5-G31

Unavailable

1

CHAIN, DRIVE (RK EXCEL) (RK525SMOZ5-120LJ FZ) (STANDARD LINK 112L)

40540-MY5-306

$150.63

2

CASE, DRIVE CHAIN

40510-MBV-000

$63.43

3

MASTER LINK SET (RK EXCEL)

40535-MY5-306

$7.04

3

MASTER LINK (DAIDO)

40545-MY5-G31

$8.03

4

BOLT, CHAIN ADJUSTING

40542-KV3-700

$7.71

5

ADJUSTER, CHAIN

40543-MAS-010

$15.91

6

ARM, RR. BRAKE STOPPER

43431-MGR-670

$25.07

7

RUBBER, STOPPER ARM

43434-ME1-670

$3.31

8

BOLT, SWINGARM PIVOT

52101-MGR-670

$32.40

9

COLLAR, R. SWINGARM PIVOT

52106-MBA-000

$9.56

10

COLLAR, R. SWINGARM

52106-MR1-000

$21.43

11

BOLT, PIVOT ADJUSTING

52109-MBA-000

$27.31

12

COLLAR, L. PIVOT DISTANCE

52143-MBA-000

$22.53

13

BUSH, DISTANCE COLLAR

52144-MBA-000

$5.18

14

SLIDER, CHAIN

52170-MGR-670

$32.81

15

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

16

SWINGARM SUB-ASSY.

52200-MGR-670

$628.16

17

BOLT, FLANGE (6MM)

90116-ME9-000

$3.19

18

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.65

19

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.28

20

NUT, LOCK (26X1.5)

90301-KT7-000

$12.54

21

NUT, U (14MM)

90305-GE8-003

$3.69

22

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.28

22

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

23

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$33.83

23

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$33.83

24

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.54

25

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.12

26

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.65

27

SCREW, TAPPING (5X12)

93901-25280

$0.90

28

NUT, HEX. (8MM)

94001-08000-0S

$1.31

29

WASHER, PLAIN (8MM)

94101-08000

Unavailable

30

WASHER, SPRING (10MM)

94111-10000

$1.24

31

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.01

31

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.01

31

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.01

31

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.01

31

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.01

31

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.01

31

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.01

31

PIN, COTTER (2.0X22)

94201-29220

$1.01

32

CIRCLIP (OUTER) (10MM)

94511-10000

$0.85

33

CIRCLIP (INNER) (35MM)

94520-35000

$2.32

34

RUBBER C, STAND STOPPER

95011-63000

$3.73

35

BEARING, RADIAL BALL (6202)

96100-62020-10

$13.36
