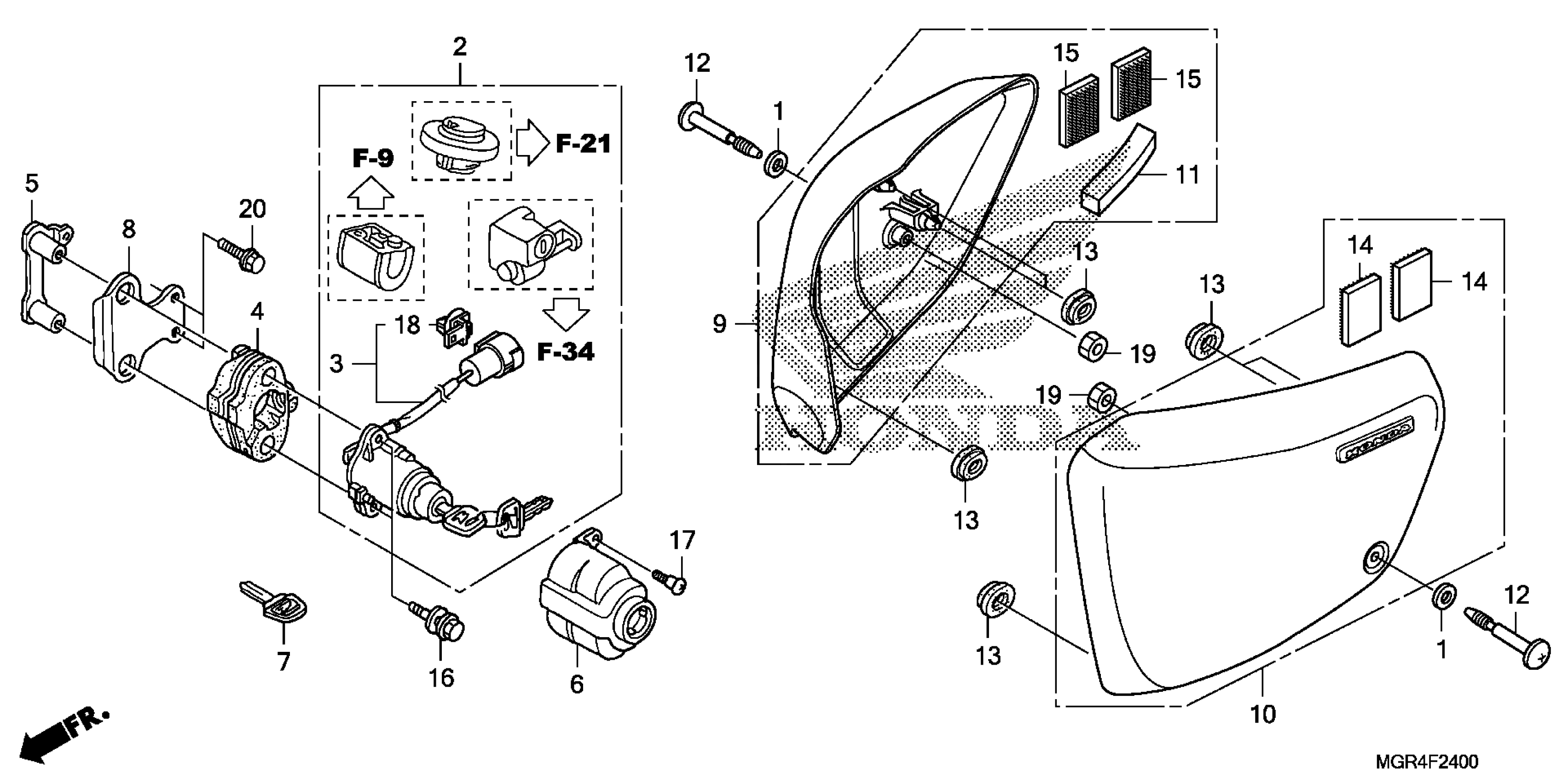

Honda VT750RSA (10) SHADOW RS, JPN, VIN# JH2RC580-AK000001 TO JH2RC580-AK099999 SIDE COVER Diagram

#

Description
Price

1

WASHER, BODY COVER SETTING

90401-KM1-000

$1.03

2

KEY SET This part replaces 35010-MGR-670.

35010-MGR-671

$247.69

3

SWITCH ASSY., COMBINATION (HONDALOCK)

35100-MGR-671

$91.68

4

BASE, COMBINATION SWITCH

35102-MR1-000

$12.60

5

COLLAR, COMBINATION SWITCH

35103-MBA-000

$15.16

6

COVER, COMBINATION SWITCH

35110-MZ5-000

$18.68

7

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$8.97

7

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$8.97

8

STAY, IGNITION SWITCH

50177-MBA-000

$9.18

9

COVER SET, R. SIDE *NHB01* (WL) (GRAPHITE BLACK)

63000-MGR-670ZA

$134.74

10

COVER SET, L. SIDE *NHB01* (WL) (GRAPHITE BLACK)

63100-MGR-670ZA

$134.74

11

CUSHION, SIDE COVER

64321-MGR-670

$3.13

12

LATCH, TOOL BOX

83550-MGR-670

$4.91

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

14

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

15

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

15

TAPE, MAGIC (25X50) (MALE)

83644-355-300

$3.82

16

BOLT, BREAK OFF (6MM)

90107-KR3-630

$9.13

17

SCREW, RR. COVER

90114-GB6-920

$1.46

18

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

19

NUT, HEX. (6MM)

94001-06200-0S

$1.31

20

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03
