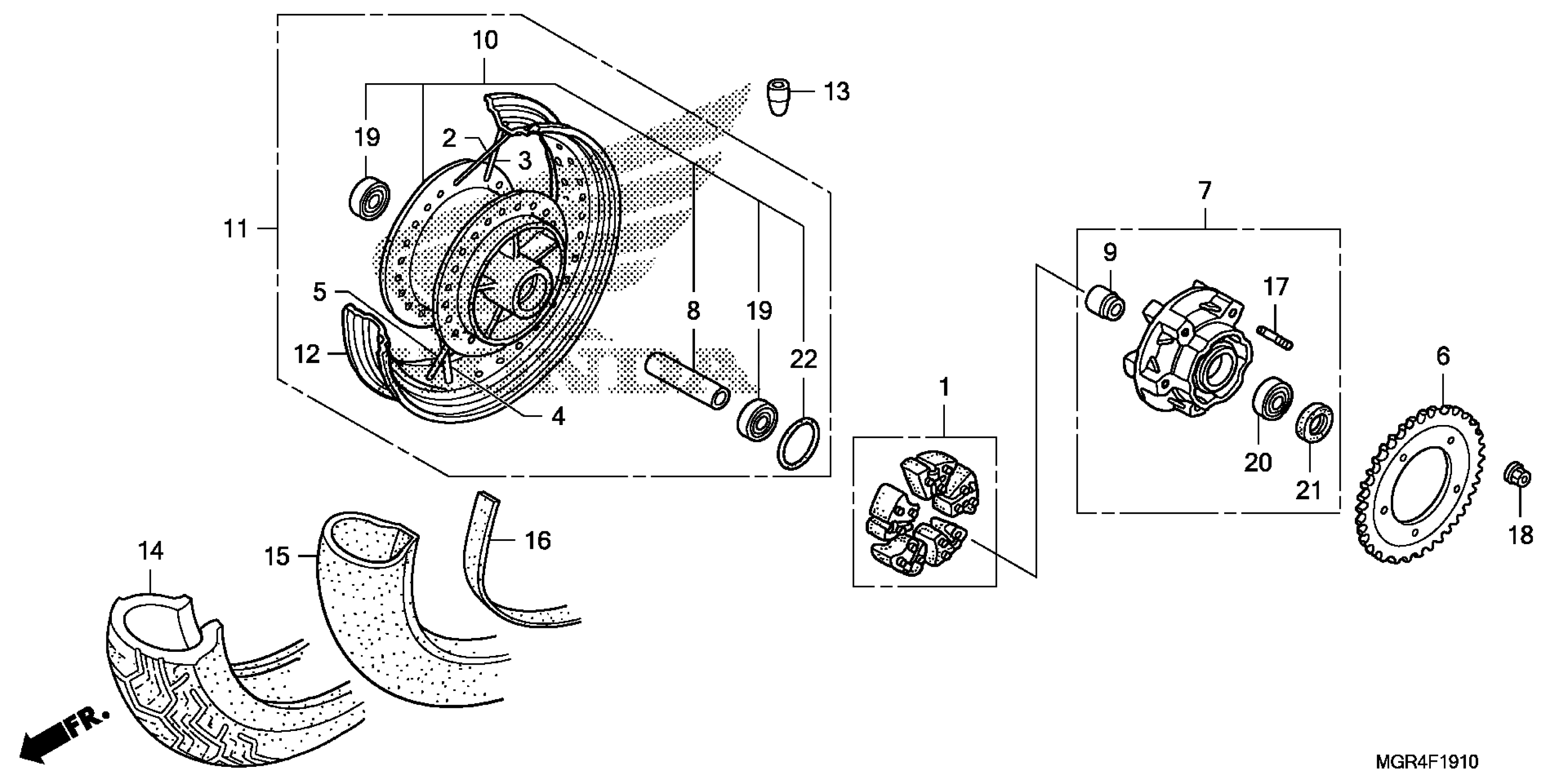

Honda VT750RSA (10) SHADOW RS, JPN, VIN# JH2RC580-AK000001 TO JH2RC580-AK099999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBA-000

$30.62

2

SPOKE SET A, RR. (R. INSIDE)

06420-MGR-670

$4.69

3

SPOKE SET B, RR. (R. OUTSIDE)

06421-MGR-670

$4.69

4

SPOKE SET C, RR. (L. INSIDE)

06422-MGR-670

$4.69

5

SPOKE SET D, RR. (L. OUTSIDE)

06423-MGR-670

$4.69

6

SPROCKET, FINAL DRIVEN (38T)

41201-MGR-670

Unavailable

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MBA-000

$247.21

8

COLLAR, RR. AXLE DISTANCE (FR.)

42620-MW0-010

$34.02

9

COLLAR B, RR. WHEEL DISTANCE

42625-MV4-000

$26.67

10

HUB SUB-ASSY., RR.

42635-MBA-000

$471.85

11

WHEEL SUB-ASSY., RR.

42650-MGR-670

$809.56

12

RIM, RR. WHEEL

42701-MGR-671

$216.56

13

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

13

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

14

TIRE, RR. This part replaces 42711-MGR-671.

42711-MGR-675

$218.07

14

TIRE, RR. (METZELER) (150/80 B 16 M/C 71H) (NA USE ALT:42711-MGR-671)

42711-MGR-672

Unavailable

14

TIRE, RR. This part replaces 42711-MGR-673.

42711-MGR-675

$218.07

14

TIRE, RR.

42711-MGR-675

$218.07

15

TUBE, TIRE (DUNLOP)

42712-MGR-671

$39.85

15

TUBE, TIRE (METZELER) (NA USE ALT:42712-MGR-671)

42712-MGR-672

Unavailable

16

FLAP, TIRE (DUNLOP)

42713-MGR-671

$6.59

16

BAND, RIM (METZELER)

42713-MGR-672

$13.59

17

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

18

NUT, U FLANGE (12MM)

90306-KTZ-D01

$3.31

19

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

19

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MZ2-A21.

91052-MAE-004

$27.50

20

BEARING, RADIAL BALL (62/22)

91073-MV4-782

$14.67

21

DUST SEAL (30X50X7.5)

91252-MAE-003

$16.97

22

O-RING (61X2)

91302-MA6-003

$5.17
