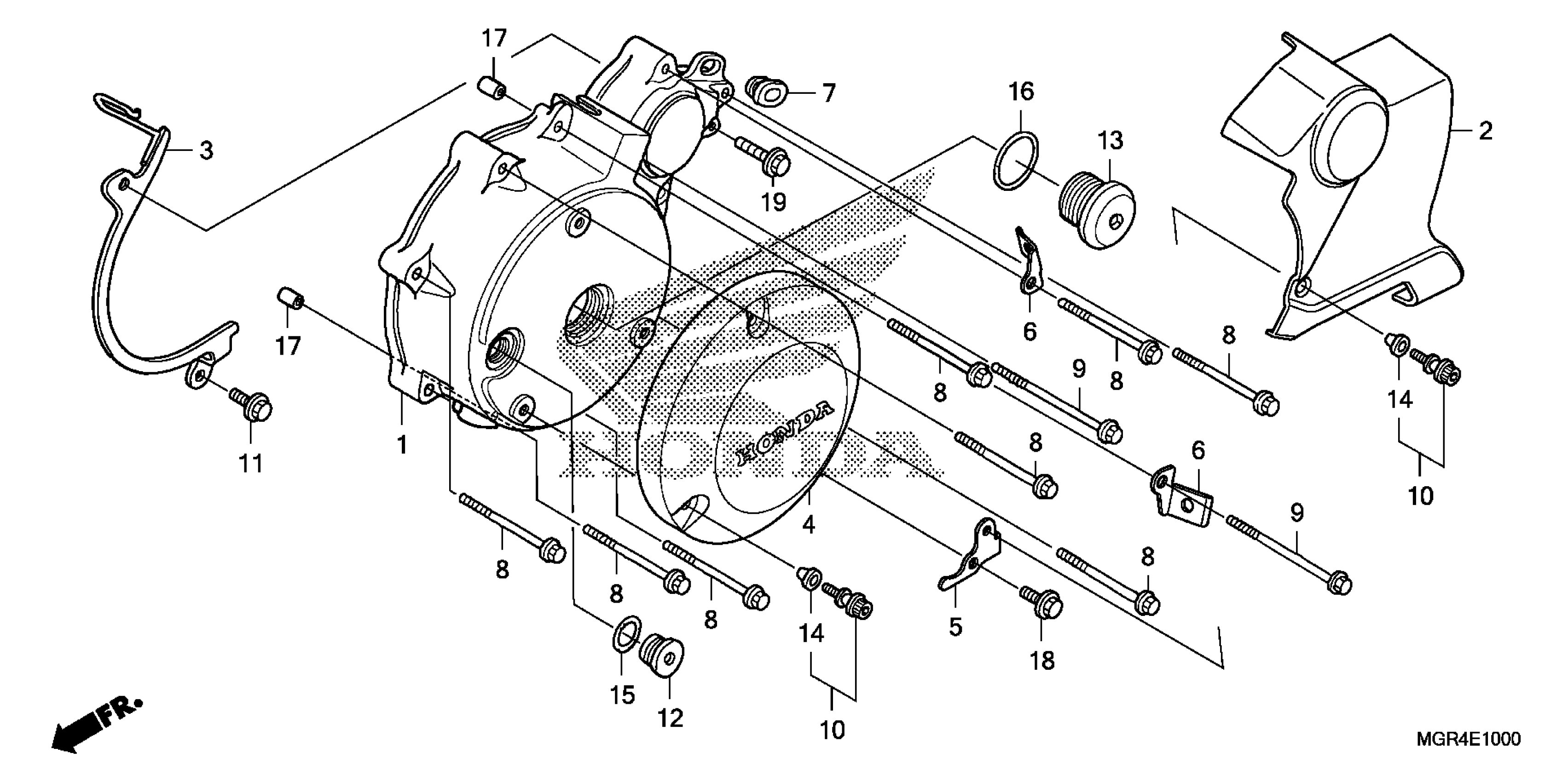

Honda VT750RSA (10) SHADOW RS, JPN, VIN# JH2RC580-AK000001 TO JH2RC580-AK099999 LEFT CRANKCASE COVER @ALTERNATOR COVER Diagram

COVER, L. CRANKCASE

11341-MGR-670

$185.69

COVER, L. RR.

11350-MGR-670

$47.23

PLATE, DRIVE CHAIN GUIDE

11355-MBA-000

$16.69

COVER, ALTERNATOR

11360-MEG-000

$83.81

STAY, L. RR. COVER

11380-MGR-670

$5.44

STAY, HARNESS CLIP

32158-MGR-670

$3.97

GROMMET, SIDE COVER

83551-MA6-000

$3.35

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X45) (NSHF)

90006-GHB-720

$1.87

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

BOLT, FLANGE (6X16) (CT200)

90029-888-000

$2.25

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-KT7-000

$19.74

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
