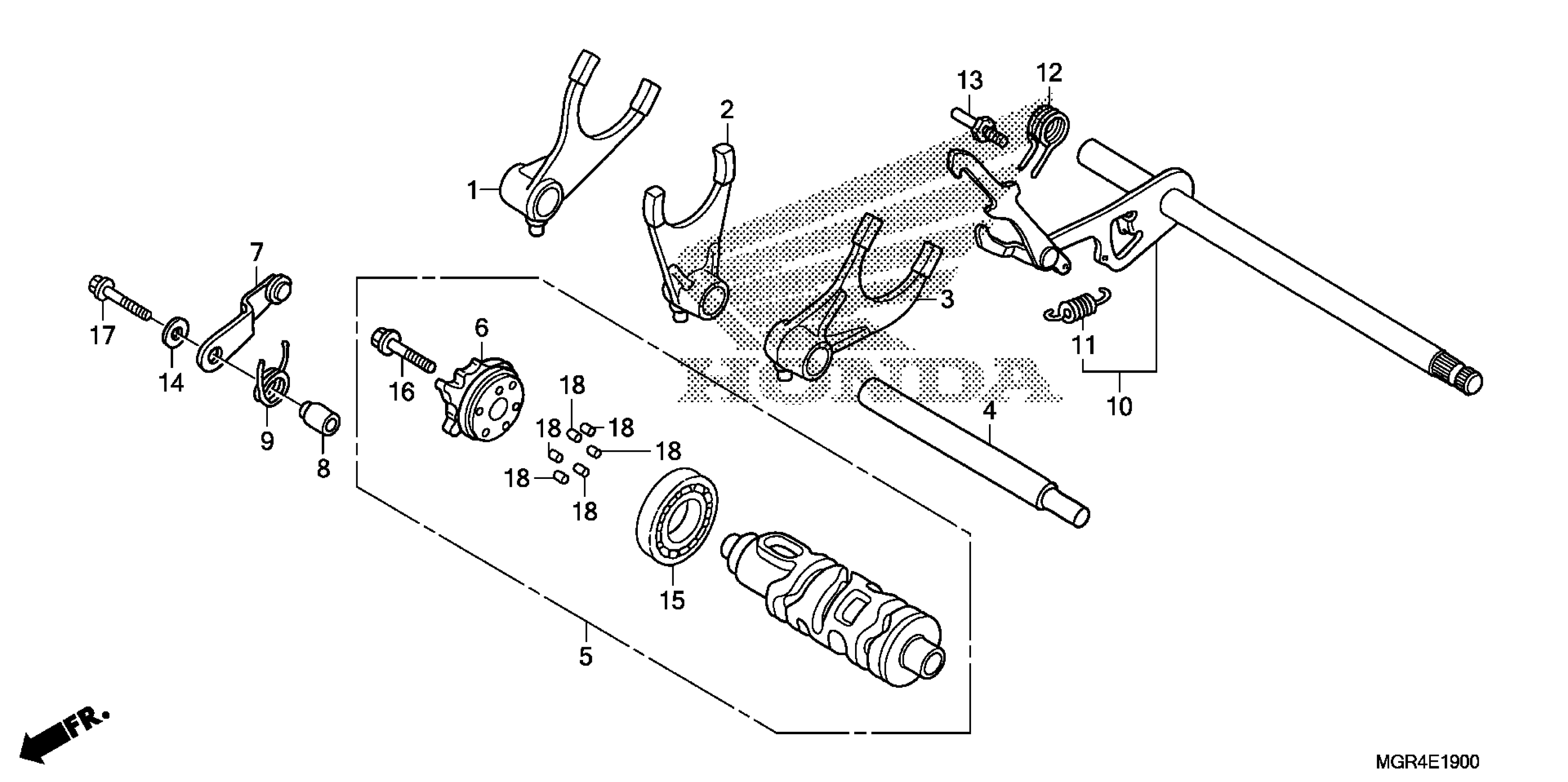

Honda VT750RSA (10) SHADOW RS, JPN, VIN# JH2RC580-AK000001 TO JH2RC580-AK099999 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MBA-000

$62.35

FORK This part replaces 24212-MBA-000.

24212-MFF-D00

$62.33

FORK

24212-MFF-D00

$62.33

FORK, L. GEARSHIFT

24213-MBA-000

$62.35

SHAFT, GEARSHIFT FORK GUIDE

24241-MV1-000

$22.25

DRUM, GEARSHIFT

24300-MGR-670

$144.39

PLATE, CAM

24320-MEW-920

$27.51

STOPPER, GEARSHIFT DRUM

24430-MF5-000

$20.99

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.44

SPRING, SHIFT DRUM STOPPER

24435-MM9-000

$3.93

SPINDLE, GEARSHIFT

24610-MGR-670

$68.55

SPRING, GEARSHIFT ARM

24641-216-000

$2.46

SPRING, GEARSHIFT RETURN

24651-MB0-010

$6.80

PIN, SHIFT RETURN SPRING

24652-259-000

$4.52

WASHER (6X2.3)

90488-MB0-000

$4.38

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$13.49

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

BOLT, FLANGE (6X28)

95801-06028-00

$1.65

ROLLER (4X11.8)

96220-40118

$0.48
