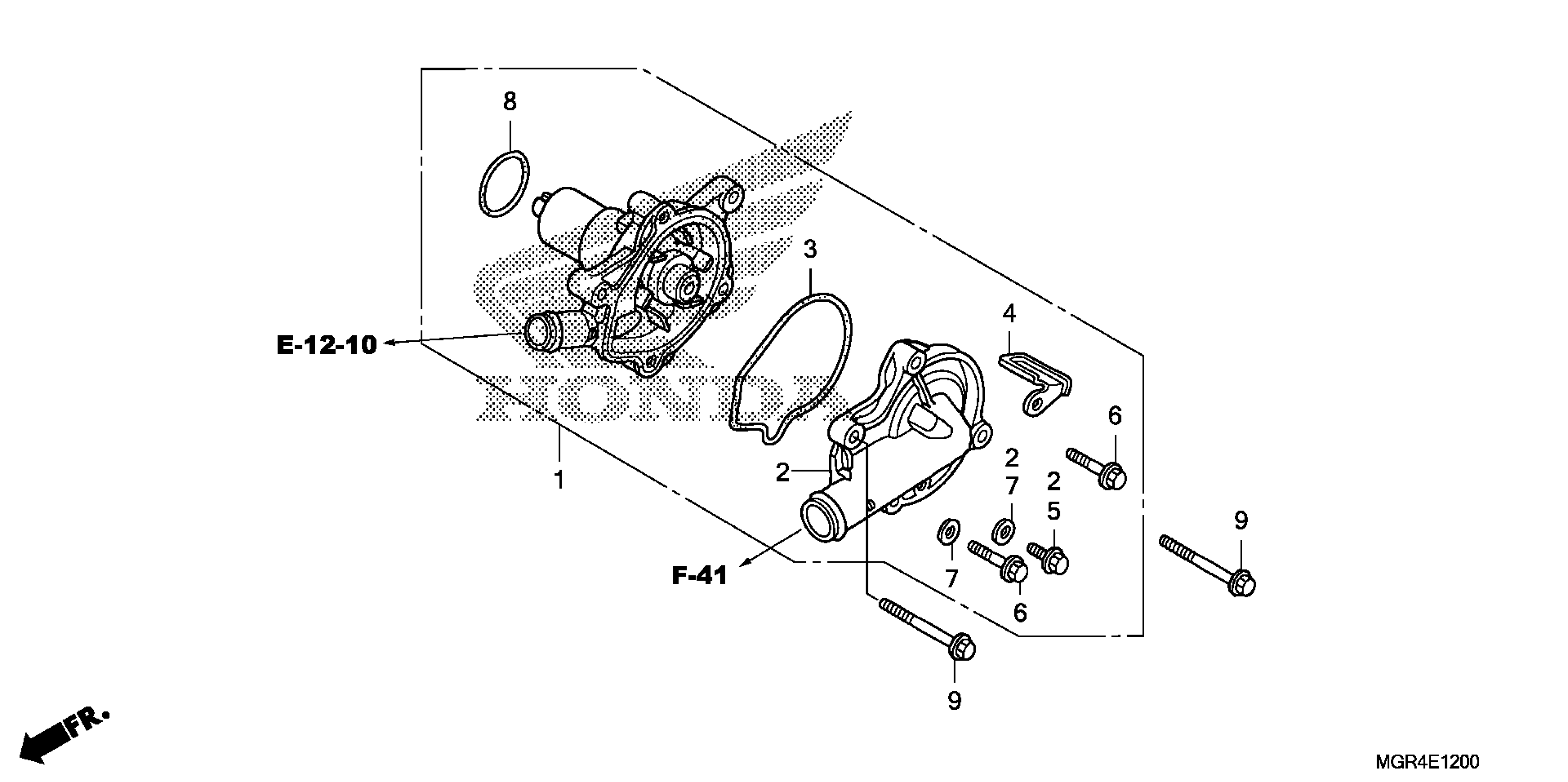

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 WATER PUMP Diagram

WATER PUMP ASSY.

19200-MGR-670

$247.80

COVER ASSY., WATER PUMP

19220-MBA-600

$103.18

GASKET, WATER PUMP COVER

19226-MM9-000

$4.49

CLAMP, OIL PRESSURE WIRE

32972-MS8-000

$9.30

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
