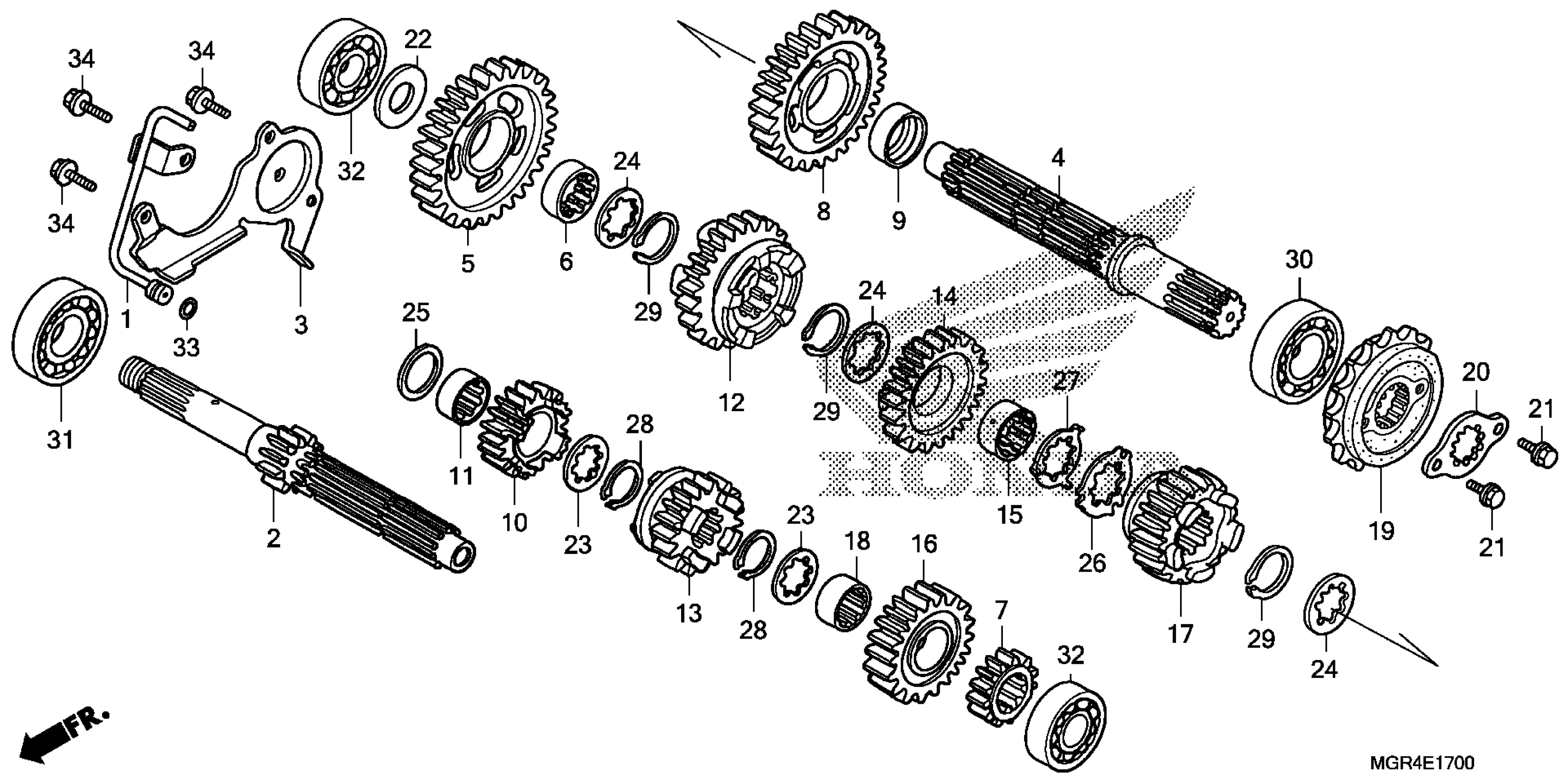

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 TRANSMISSION Diagram

PIPE, OIL FEED

15520-MS6-000

$35.93

SHAFT, MAIN (12T)

23210-MBA-000

$161.51

PLATE, BEARING SETTING

23212-MS6-920

$17.62

COUNTERSHAFT

23220-MBA-000

$152.85

GEAR, COUNTERSHAFT FIRST (38T)

23421-MBA-000

$154.54

COLLAR, SPLINE (28X10)

23422-MV1-000

$19.44

GEAR, MAINSHAFT SECOND (17T)

23431-MBA-000

$49.25

GEAR, COUNTERSHAFT SECOND (34T)

23441-MBA-000

$126.41

BUSH (28X31X10)

23442-MR5-670

$24.44

GEAR, MAINSHAFT THIRD (20T)

23451-MY1-000

$97.75

BUSH (25X28X13.5)

23455-MS9-750

$19.44

GEAR, COUNTERSHAFT THIRD (30T)

23461-MBA-000

$154.54

GEAR, MAINSHAFT FOURTH (23T)

23471-MBA-000

$125.10

GEAR, COUNTERSHAFT FOURTH (27T)

23481-MBA-000

$117.20

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

GEAR, MAINSHAFT FIFTH (24T)

23491-MBA-000

$117.20

GEAR, COUNTERSHAFT FIFTH (25T)

23501-MBA-000

$141.16

COLLAR, SPLINE (25X16)

23512-MR7-000

$30.69

SPROCKET, DRIVE (17T)

23801-MBA-000

$52.23

PLATE, FIXING

23811-MV1-000

$10.85

BOLT, FLANGE (6X12)

90118-958-003

$3.24

WASHER (20X37X2)

90404-KK0-000

$4.44

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

CIRCLIP (25MM)

90601-107-000

$3.74

CIRCLIP (28MM)

90603-MN4-000

$4.11

BEARING, BALL (28X54X20.6) (NTN CORP.)

91001-MN5-003

$74.13

BEARING, RADIAL BALL (62/25)

91001-MV1-003

$31.69

BEARING, RADIAL BALL (6204U) This part replaces 91003-MG2-791.

96140-62040-10

$21.84

BEARING, RADIAL BALL (6204U) This part replaces 91003-MG2-792.

96140-62040-10

$21.84

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$21.84

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
