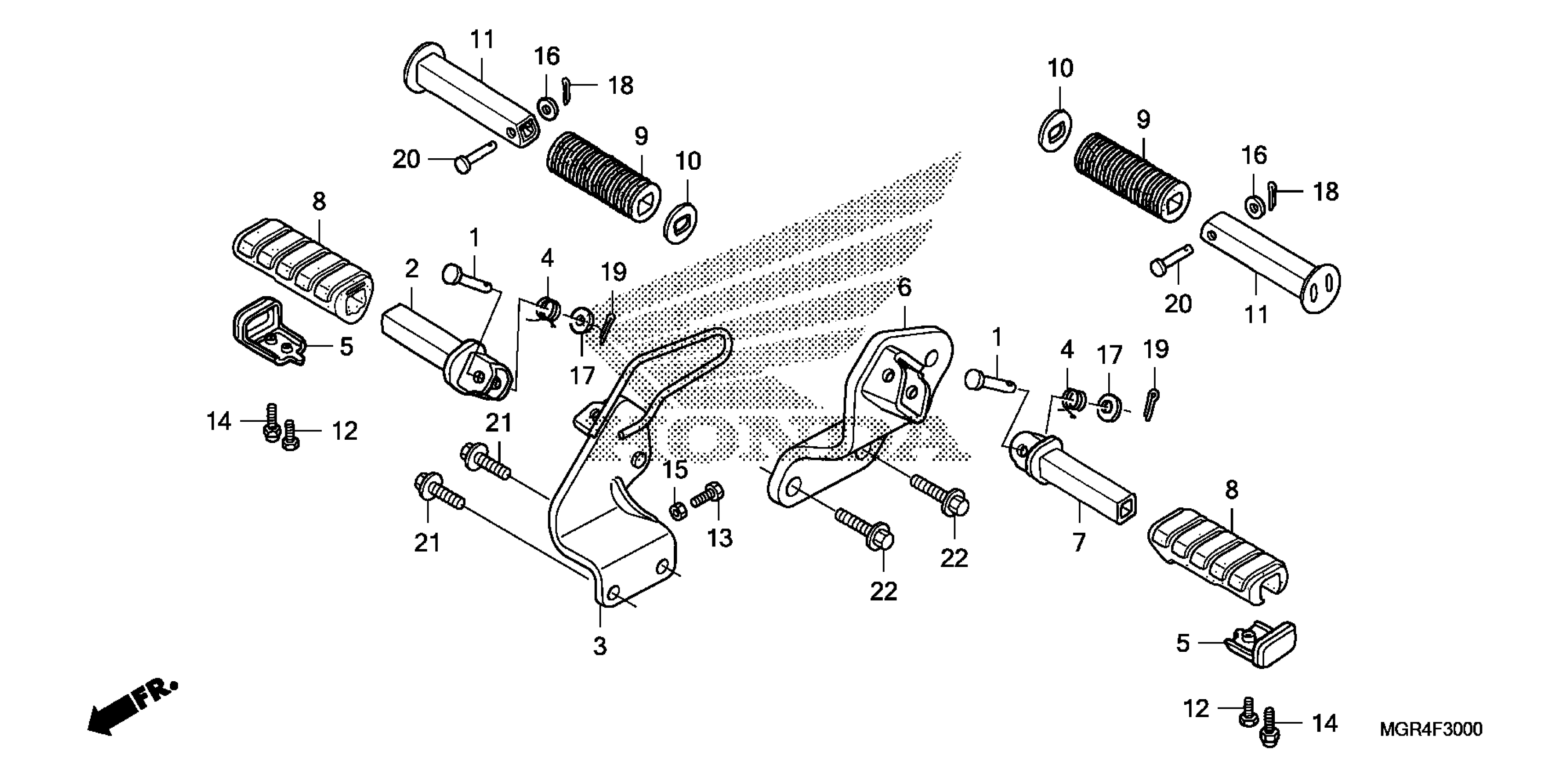

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$2.98

2

BAR, R. STEP (COO) This part replaces 50612-MEG-000.

50612-MEG-305

$15.85

2

BAR, R. STEP (COO)

50612-MEG-305

$15.85

3

BRACKET, R. MAIN STEP

50615-MGR-670

$84.17

4

SPRING, STEP RETURN

50617-MB1-700

$5.41

5

STOPPER, STEP RUBBER

50619-MGR-670

$16.71

6

BRACKET, L. MAIN STEP

50625-MGR-670

$64.26

7

BAR, L. STEP (COO) This part replaces 50642-MEG-000.

50642-MEG-305

$15.01

7

BAR, L. STEP (COO)

50642-MEG-305

$15.01

8

RUBBER, MAIN STEP (COO) This part replaces 50661-MEG-000.

50661-MEG-305

$5.67

8

RUBBER, MAIN STEP (COO)

50661-MEG-305

$5.67

9

RUBBER, PILLION STEP (COO)

50710-MFR-305

$23.45

10

WASHER, PILLION FOOTPEG

50712-413-000

$3.22

11

BAR, R. PILLION STEP This part replaces 50715-MGR-305.

50715-MGR-670

$17.54

11

BAR, R. PILLION STEP

50715-MGR-670

$17.54

12

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.29

13

BOLT, HEX. (6X18)

92101-06018-0A

$1.35

14

BOLT, CAP (6X12)

92501-06012-0A

$2.19

15

NUT, HEX. (6MM)

94002-06000-0S

$1.19

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

17

WASHER, PLAIN (8MM)

94101-08000

$0.75

18

PIN, COTTER (1.6X12)

94201-16120

$0.94

19

PIN, COTTER (2.0X15)

94201-20150

$0.94

20

PIN A, PILLION STEP

95015-81000

$2.01

21

BOLT, FLANGE (10X25)

95701-10025-07

$1.29

22

BOLT, FLANGE (10X40)

95701-10040-07

$1.72
