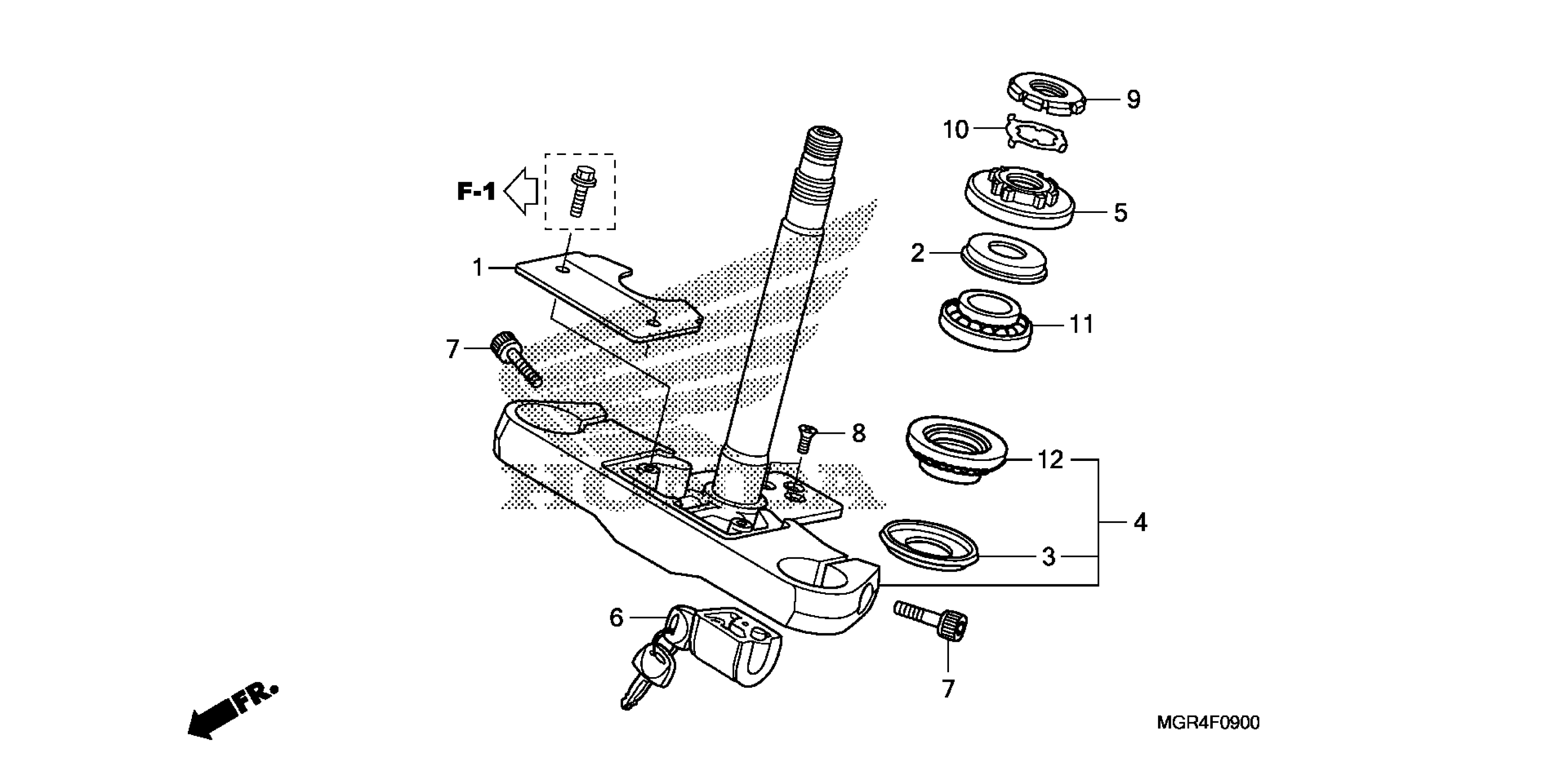

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 STEERING STEM Diagram

COVER, BRIDGE (LOWER)

53203-MFE-670

$11.54

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

STEM SUB-ASSY., STEERING

53219-MGR-670

$355.51

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$26.66

BOLT, SOCKET (10X25)

90104-MEG-000

$3.74

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57
