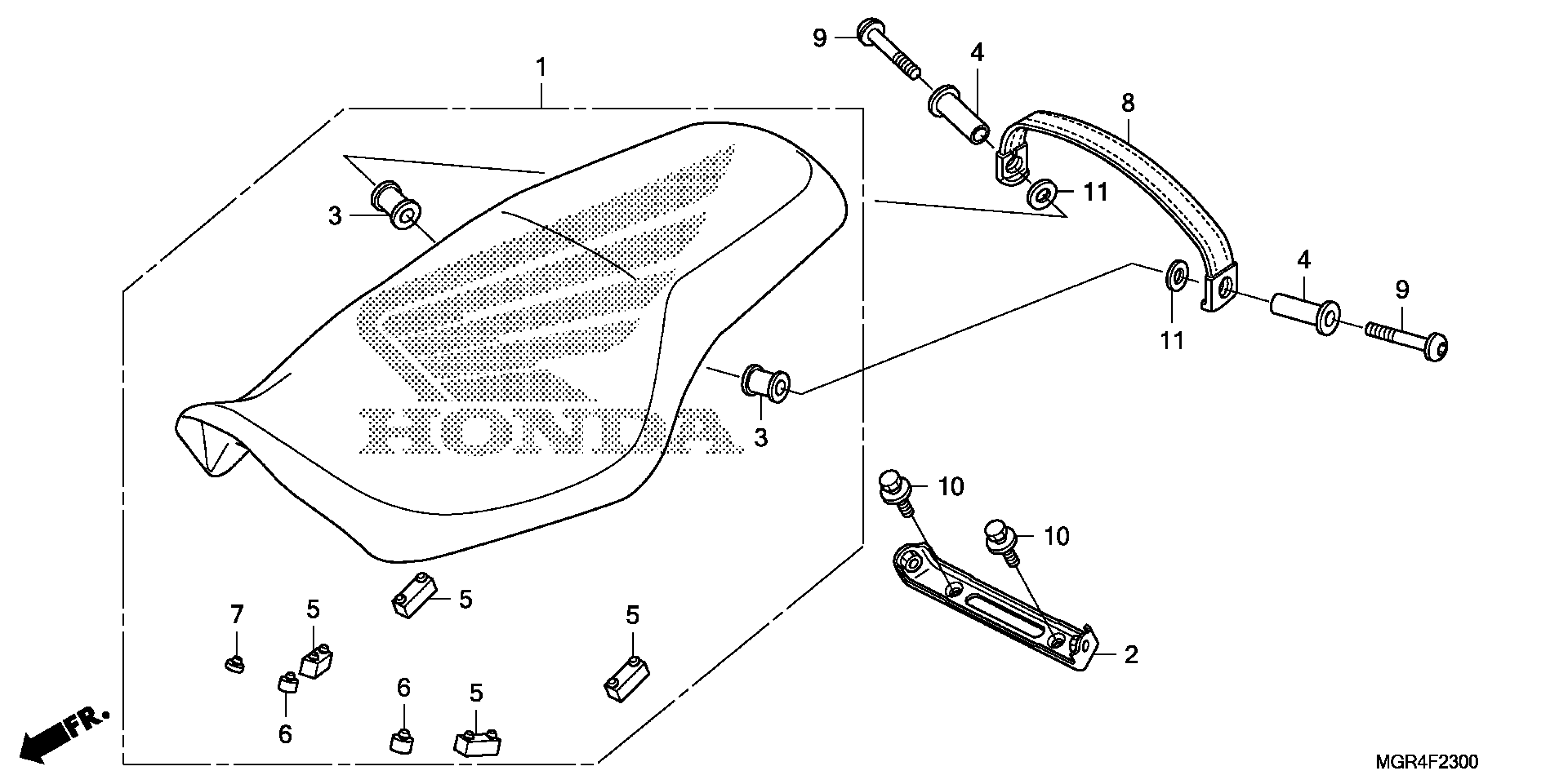

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 SEAT Diagram

SEAT ASSY., DOUBLE

77200-MGR-671

$430.99

STAY, SEAT

77201-MGR-670

$20.23

RUBBER, SEAT MOUNTING

77202-MCL-000

$2.48

COLLAR, SEAT MOUNT

77202-MGR-670

$3.84

RUBBER A, SEAT SETTING

77205-GB5-670

$7.52

RUBBER A, SEAT SETTING This part replaces 77205-MG2-000.

77205-GB5-670

$7.52

RUBBER, SEAT SETTING

77206-GF0-000

$5.07

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

SEAT BELT

77310-MGR-671

$26.25

BOLT, SEAT BELT

90128-MGR-670

$5.13

BOLT-WASHER (8X20)

93406-08020-08

$1.75

WASHER, PLAIN (12MM) (SOURCE: VINTAGE PARTS INC.)

94101-12700

$3.29
