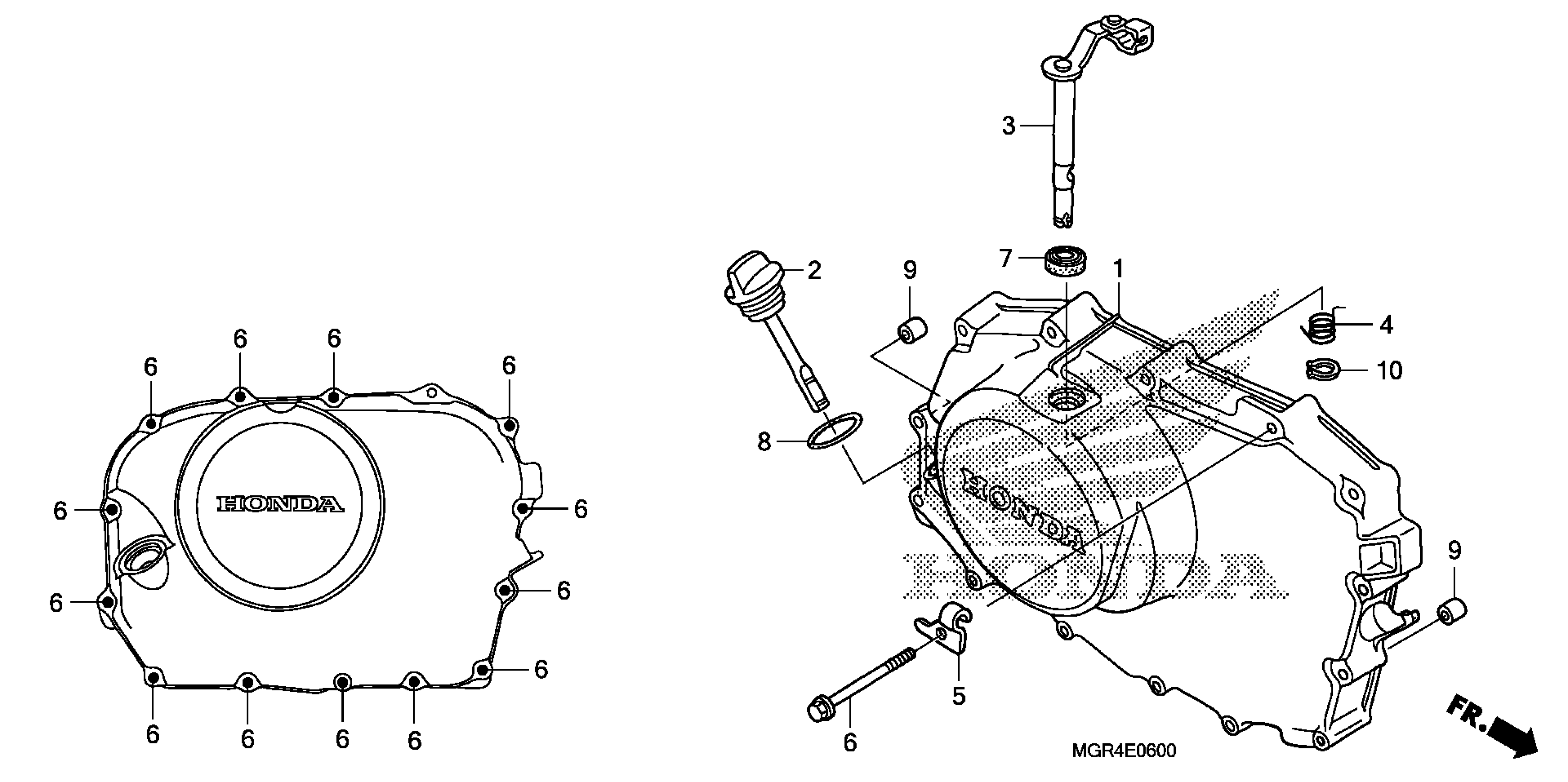

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MGR-670

$286.74

DIPSTICK, OIL

15650-MEW-920

$13.69

LEVER, CLUTCH

22810-MBS-000

$54.02

SPRING, CLUTCH LEVER

22815-413-000

$3.08

RECEIVER, CLUTCH WIRE

22825-MEW-920

$7.70

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (21.5X3.2)

91307-425-003

$2.59

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49
