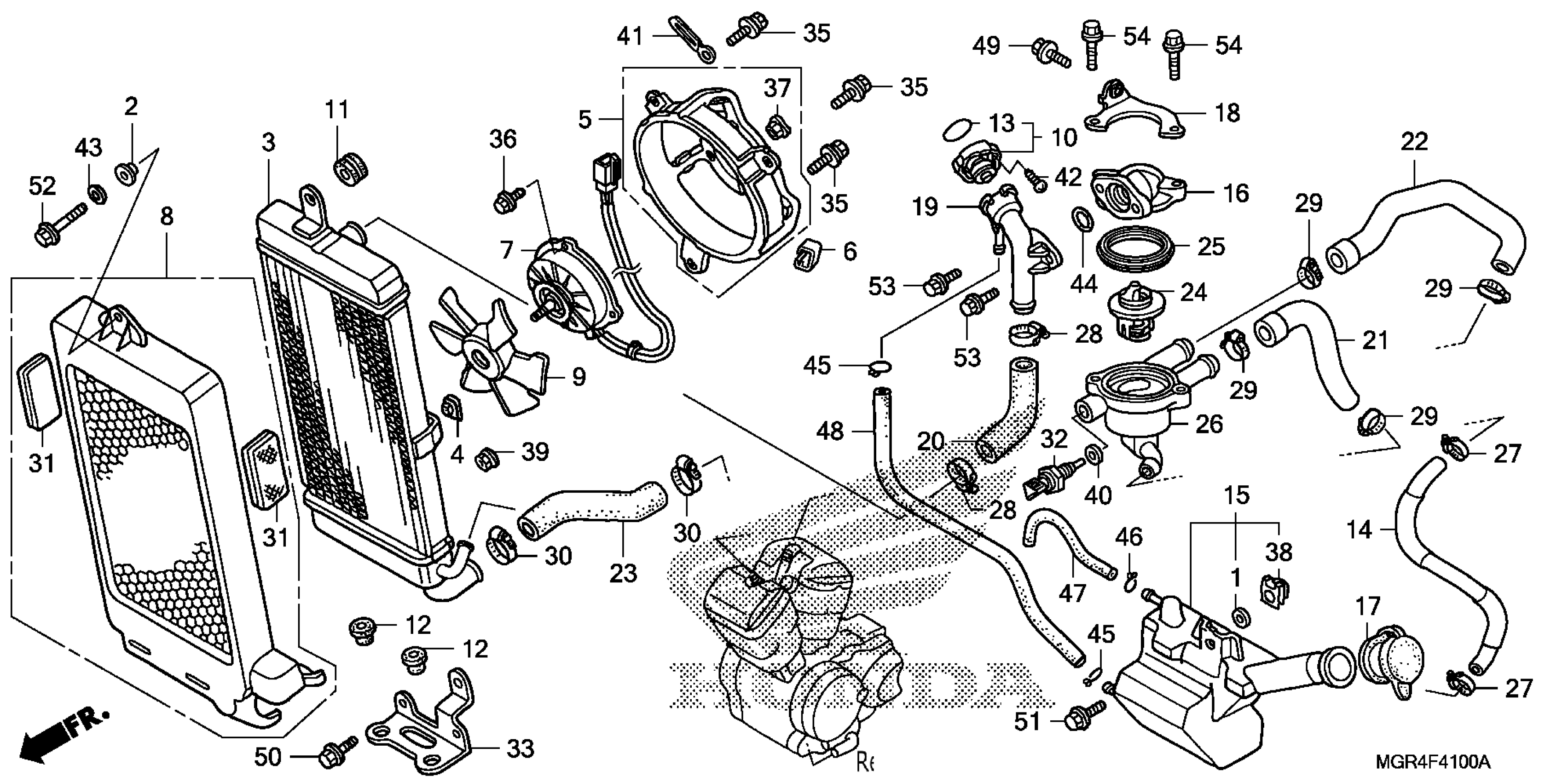

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 RADIATOR Diagram

#

Description
Price

1

COLLAR, CONTROL

16573-ZE6-300

$2.62

2

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$5.73

3

RADIATOR (NOT AVAILABLE) This part replaces 19010-MGR-305.

19010-MGR-671

$508.77

3

RADIATOR (NOT AVAILABLE)

19010-MGR-671

$508.77

4

NUT, SETTING (6MM)

19014-KEA-003

$2.88

5

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$48.97

5

SHROUD (COO)

19015-MBA-305

$48.97

6

CLIP, HARNESS (T.RAD)

19017-PK1-004

$8.78

7

MOTOR ASSY., FAN

19030-MGR-671

$295.48

8

GRILLE, RADIATOR

19035-MBA-671

$93.80

9

FAN, COOLING (TOYO)

19040-MF5-751

$57.57

10

CAP, RADIATOR

19045-MY3-621

$36.33

11

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.70

12

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.20

13

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.28

14

HOSE, BYPASS

19071-MGR-670

$27.29

15

TANK ASSY., RESERVE

19101-MBA-010

$26.92

15

TANK ASSY., RESERVE This part replaces 19101-MBA-305.

19101-MBA-010

$26.92

16

CAP, THERMOSTAT

19103-MGR-670

$27.28

17

CAP, RESERVE TANK

19104-MB0-700

$10.92

18

STAY, THERMOSTAT CASE

19105-MGR-670

$4.52

19

NECK, FILLER

19106-MM8-000

$53.52

20

HOSE, RADIATOR (UPPER)

19107-MGR-670

$9.81

21

HOSE, FR. OUTLET WATER

19108-MGR-670

$8.62

22

HOSE, RR. OUTLET WATER

19110-MGR-670

$13.28

23

HOSE, RADIATOR (LOWER)

19115-MBA-000

$21.87

24

THERMOSTAT ASSY.

19300-MCH-A00

$42.89

25

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

26

CASE, THERMOSTAT

19310-MGR-670

$42.65

27

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

28

CLAMP, WATER HOSE

19505-ML3-770

$6.58

29

CLAMP B, WATER HOSE

19506-KS6-700

$6.98

30

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.19

31

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$25.64

32

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

33

STAY, RADIATOR

50175-MBA-000

$15.58

35

BOLT-WASHER (6X16)

90120-KCR-003

$4.09

36

BOLT, FLANGE (5X10)

90196-MBB-003

$2.42

37

NUT, SPECIAL (5MM)

90303-MBB-003

$3.42

38

NUT, CLIP (6MM)

90305-KT7-000

$3.74

39

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

40

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

41

CLIP (2X70)

91413-679-000

$8.30

42

SCREW, TAPPING (3X8)

93901-22180

$0.83

43

WASHER, PLAIN (6MM)

94101-06700

$0.86

44

O-RING (23X2.4)

94608-30000

$1.09

45

CLIP, TUBE (B12)

95002-02120

Unavailable

46

CLIP, TUBE (C9)

95002-50000

$1.14

47

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$18.72

48

BULK HOSE (7.3X1000)

95005-75001-20M

$20.14

49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

50

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

51

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

52

BOLT, FLANGE (6X30)

95701-06030-07

$1.71

53

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

54

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
