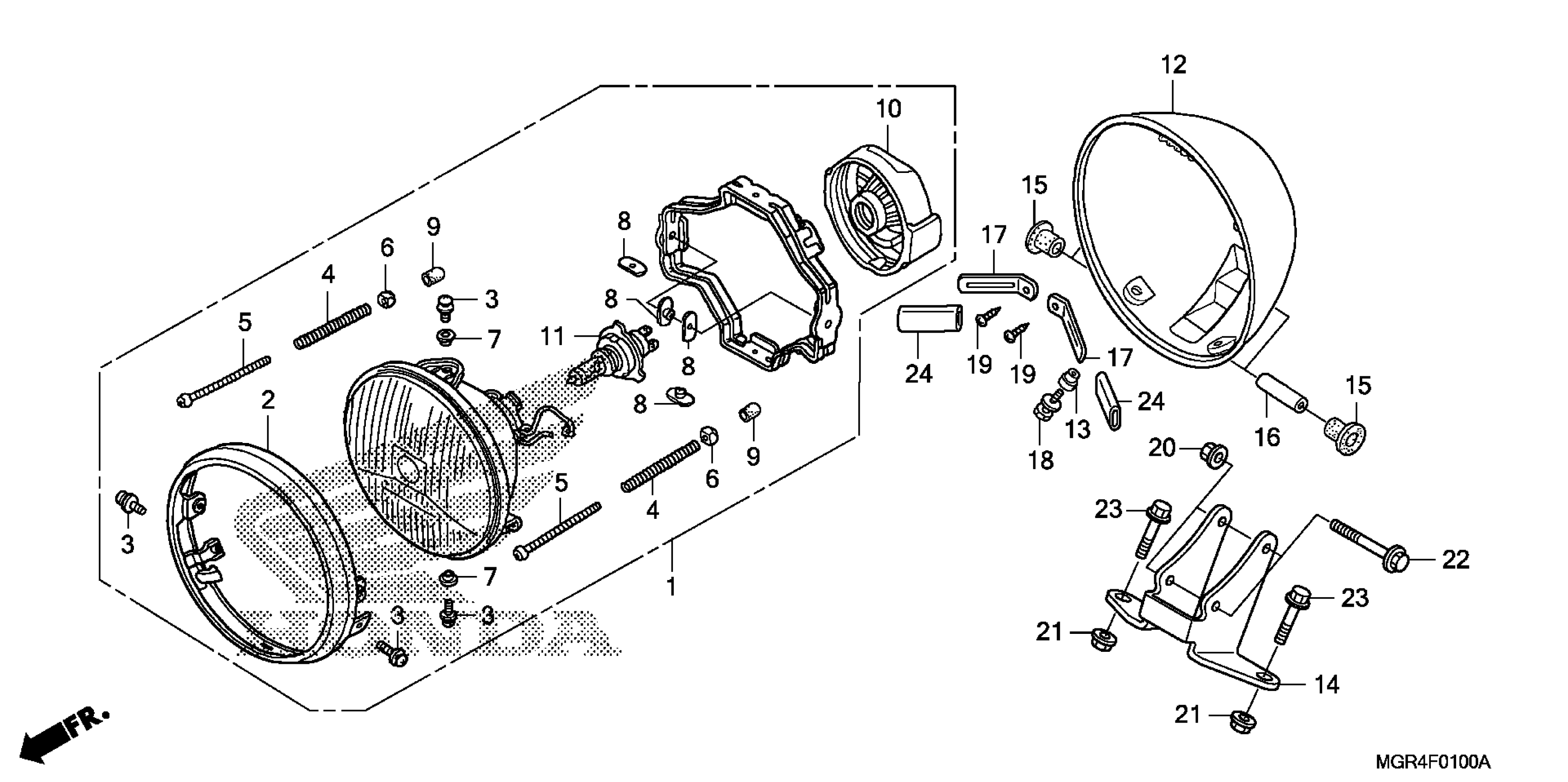

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) (COO)

33100-MFE-305

$290.93

2

RIM, HEADLIGHT

33101-MAA-A31

$29.13

3

SCREW-WASHER

33104-MAH-671

$4.01

4

SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33108-MM2-003

$3.26

5

SCREW, BEAM ADJUSTING

33114-GE1-670

$4.97

6

NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33118-438-841

$2.23

7

SPACER

33127-MAA-A31

$2.40

8

NUT, UNIT HOLDER

33128-MAA-A31

$2.25

9

COVER, SCREW

33136-426-830

$1.89

10

COVER, RUBBER

33180-MR7-003

$14.24

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$37.18

12

CASE, HEADLIGHT

61301-MN0-003

$112.05

13

COLLAR, HEADLIGHT SETTING

61304-KR3-980

$5.17

14

STAY, HEADLIGHT

61311-MGR-670

$22.48

15

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.97

16

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.97

17

CLIP, WIRE HARNESS (4X100)

91416-PA1-000

$5.56

18

BOLT-WASHER (5X20)

93402-05020-00

$1.49

19

SCREW, TAPPING (4X10) (PO)

93913-24110

$1.49

20

NUT, FLANGE (6MM)

94050-06070

$1.49

21

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

22

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

23

BOLT, FLANGE (8X40)

95801-08040-07

$1.49

24

TUBE, CORD

91451-ZD8-K61

$1.49
