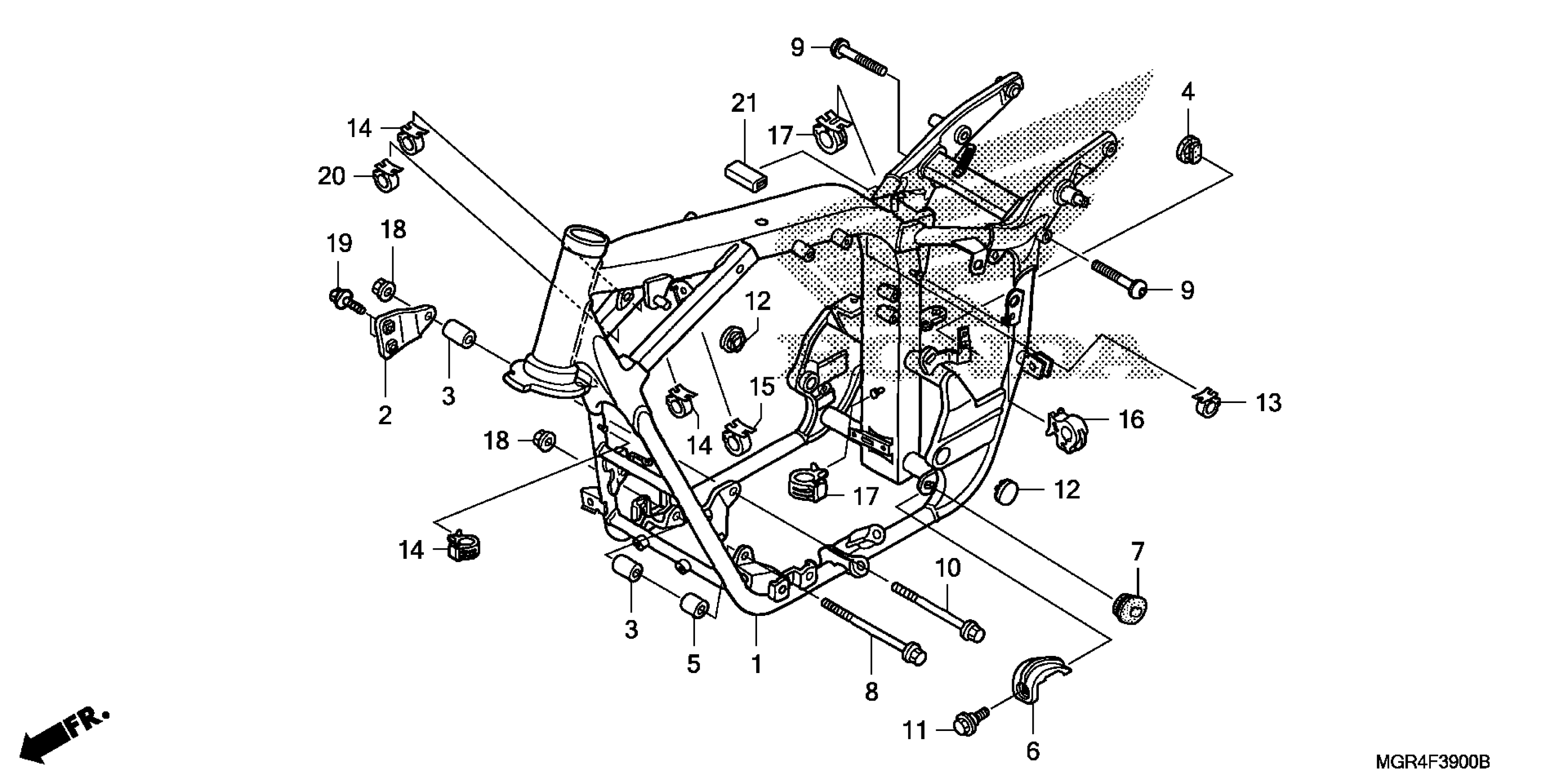

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 FRAME Diagram

#

Description
Price

1

FRAME

50100-MGR-770

$2,214.43

2

PLATE, FR. ENGINE HANGER (UPPER)

50176-MGR-670

$15.88

3

COLLAR, FR. ENGINE HANGER (B)

50197-KR1-760

$11.69

4

PLUG, HOLE

50318-041-600

$2.04

5

COLLAR, ENGINE HANGER

50363-KT7-000

$13.16

6

SLIDER B, CHAIN

52180-MGR-670

$8.25

7

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

8

BOLT, FLANGE (10X205)

90102-KBV-000

$19.26

9

BOLT, SOCKET (10X78)

90102-MGR-670

$4.40

10

BOLT, FLANGE (10X180)

90106-MY9-000

Unavailable

11

BOLT, FLANGE (6MM)

90111-187-000

$7.39

12

CAP, R. LOCK NUT

90302-ME5-000

$17.79

13

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

14

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

15

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

16

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

17

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

18

NUT, FLANGE (10MM)

90303-428-900

$3.19

18

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.19

19

BOLT, FLANGE (8X16)

95701-08016-07

$1.99

20

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

21

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60
