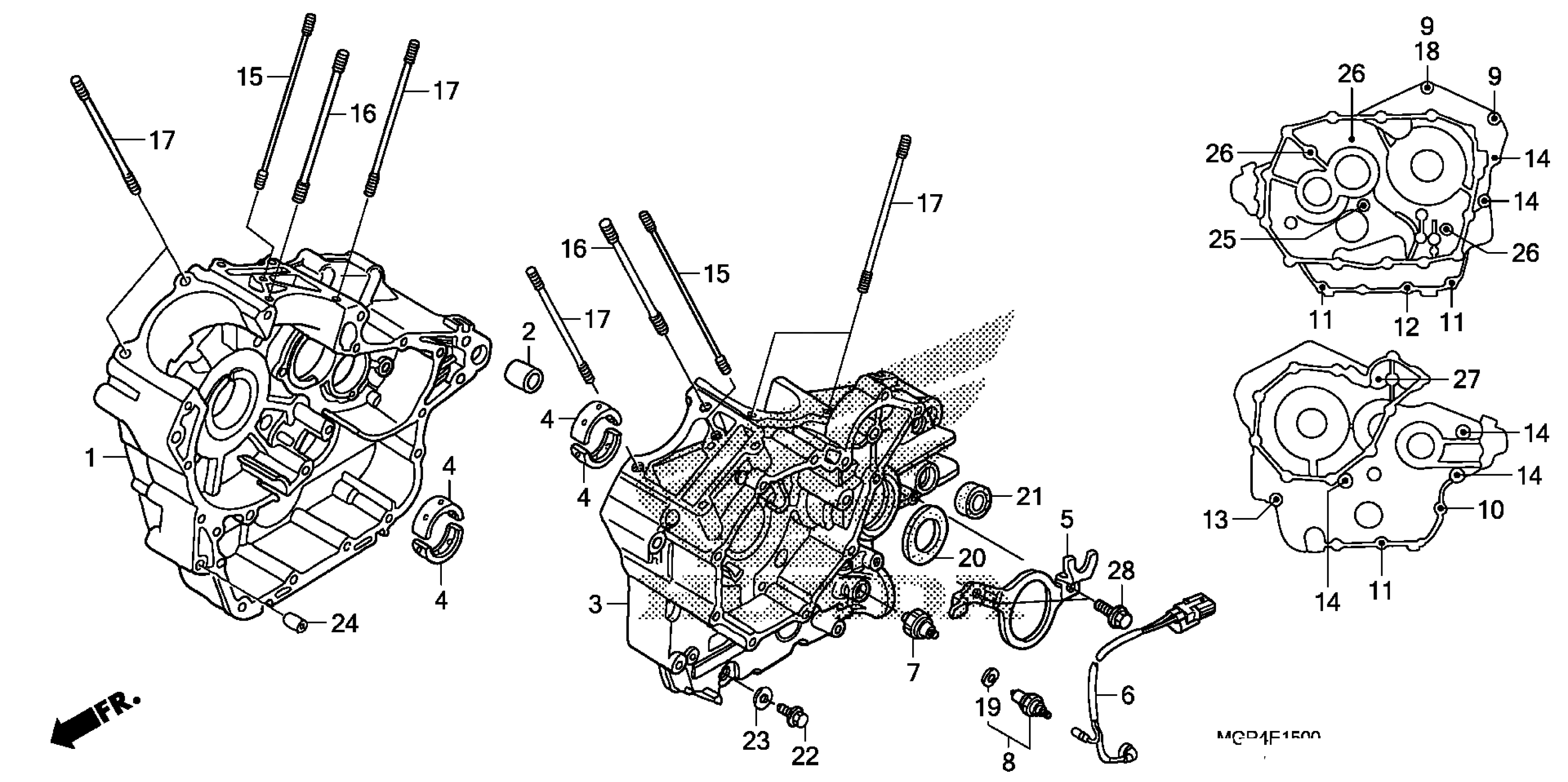

Honda VT750RS3AC (11) SHADOW RS, JPN, VIN# JH2RC588-BK000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MGR-670

$892.51

2

COLLAR (23X20)

11105-MM9-000

$8.43

3

CRANKCASE, L.

11200-MGR-670

$892.51

4

BEARING A, CRANKSHAFT (BLUE)

13321-MEG-003

$12.60

4

BEARING B, CRANKSHAFT (BLACK)

13322-MEG-003

$12.60

4

BEARING C, CRANKSHAFT (BROWN)

13323-MEG-003

$12.60

4

BEARING D, CRANKSHAFT (GREEN)

13324-MEG-003

$12.60

4

BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13325-MEG-305

$12.07

4

BEARING F, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13326-MEG-305

$12.07

4

BEARING G, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13327-MEG-305

$12.07

5

PLATE, OIL SEAL SETTING

23531-MV1-000

$9.32

6

SUB-HARNESS A

32101-MGR-670

$20.79

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.96

8

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$21.79

9

BOLT, FLANGE (8X140)

90002-MEG-000

$3.51

10

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.78

11

BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)

90006-GHB-730

$1.66

12

BOLT, FLANGE (6X80) (NSHF)

90006-GHB-790

$1.87

13

BOLT, FLANGE (8X70)

90008-MEW-920

$3.53

14

BOLT, FLANGE (8X80)

90010-MEG-000

$2.41

15

BOLT, STUD (8X189)

90011-MZ8-B40

$10.53

16

BOLT, STUD (12X177)

90012-MCB-610

$7.85

17

BOLT, STUD (10X177)

90013-MZ8-B40

$15.85

18

WASHER, SEALING (8MM)

90442-MR1-770

$2.10

19

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.24

20

OIL SEAL (28X45X7)

91201-MV1-003

$6.99

21

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.32

22

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.99

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

24

PIN A, DOWEL (14X20)

94301-14200

$2.80

25

BOLT, FLANGE (8X65)

95701-08065-00

$1.59

26

BOLT, FLANGE (8X80)

95701-08080-09

$1.21

27

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.79

27

BOLT, FLANGE (8X125)

95701-08125-07

$4.79

28

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
