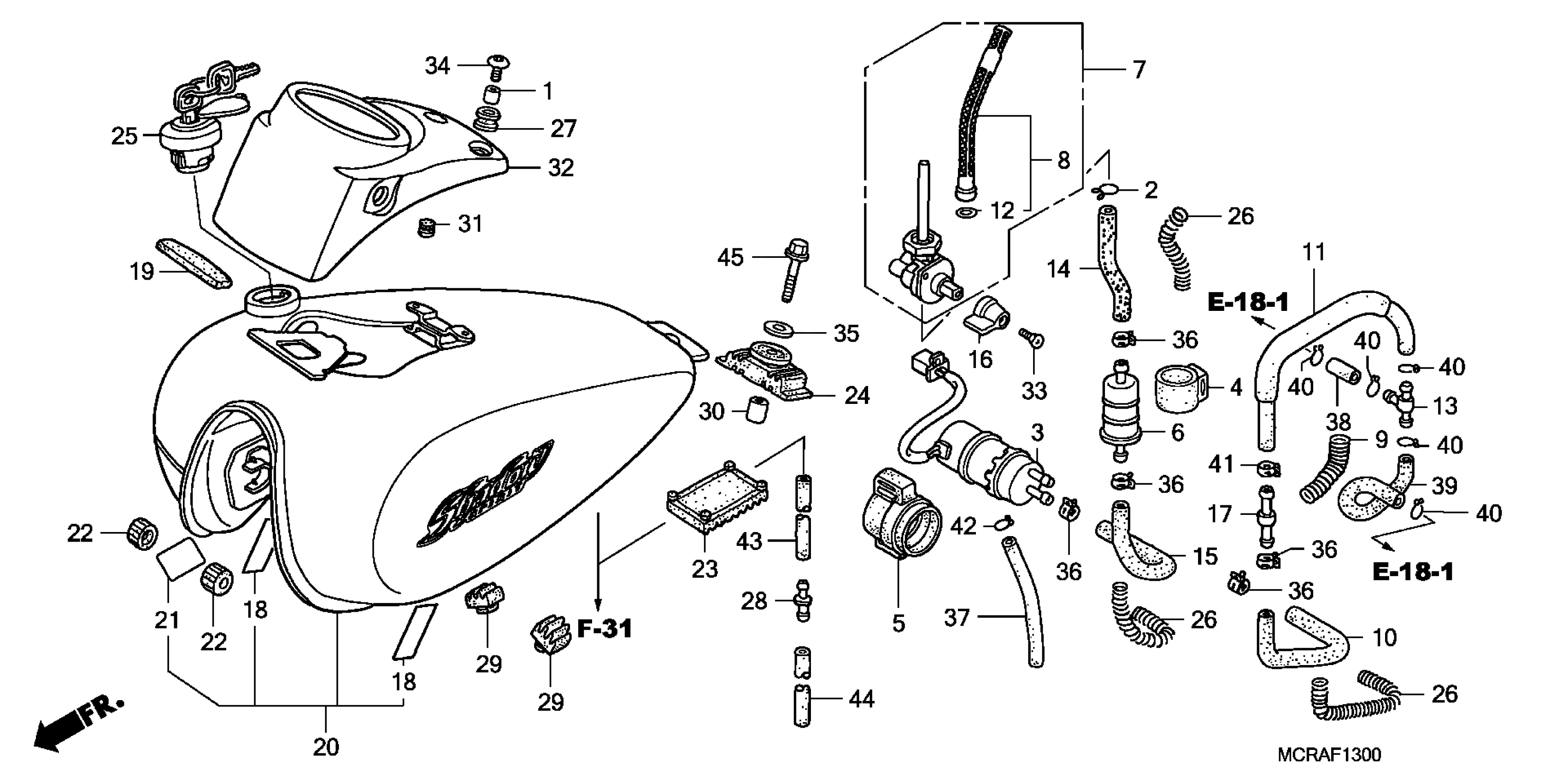

Honda VT750DCAAC (07) SHADOW SPIRIT, JPN, VIN# JH2RC441-7M100001 FUEL TANK + FUEL PUMP Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER

11346-371-300

$9.48

2

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.48

3

PUMP ASSY., FUEL (MITSUBISHI) (MSDS)

16710-MBA-612

$163.74

4

HOLDER, STRAINER

16711-MF2-000

$15.81

5

RUBBER, FUEL PUMP MOUNTING

16711-MZ7-000

$21.38

6

FILTER, FUEL

16900-MG8-003

$21.10

7

PETCOCK ASSY.

16950-MCR-A03

$85.87

8

SCREEN SET, FUEL STRAINER

16952-MCL-013

$19.20

9

WIRE B, GUARD

16952-MF5-000

Unavailable

10

TUBE C, FUEL

16953-MCL-000

$8.51

11

TUBE D, FUEL

16955-MBA-000

$8.57

12

O-RING

16958-KM9-005

$3.62

13

JOINT, FUEL TUBE

16958-MB0-000

$10.86

14

TUBE A, FUEL

16961-MCL-000

$5.27

15

TUBE B, FUEL

16962-MCL-000

$6.41

16

LEVER, PETCOCK

16963-MY5-610

$12.30

17

JOINT, FUEL TUBE

16966-MR1-000

$7.05

18

TAPE, TANK GUARD

17506-GCS-300

$3.01

19

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.06

20

TANK SET, FUEL (TYPE1) (WL)

17520-MCR-A80ZA

Unavailable

20

TANK SET, FUEL (TYPE2) (WL)

17520-MCR-A80ZB

Unavailable

20

TANK SET, FUEL (TYPE3) (WL)

17520-MCR-A80ZC

Unavailable

21

TAPE, TANK GUARD

17528-MR4-900

$2.12

22

CUSHION, FR. FUEL TANK

17611-KE8-000

$3.92

22

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$3.92

23

CUSHION, RR. FUEL TANK

17612-MCL-000

$12.71

24

CUSHION, RR. FUEL TANK

17613-KY1-000

$10.49

25

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$63.69

26

WIRE, GUARD

17672-MY1-000

$6.45

27

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.64

29

RUBBER, STAND STOPPER

50505-GR1-000

$4.47

30

COLLAR, CUSHION RUBBER BUSH (SHOWA)

52486-074-000

$3.52

31

PLUG, HOLE

61110-388-000

$3.01

32

COVER, METER

83510-MCL-010

$122.09

33

SCREW, OVAL (5X12)

90111-MZ5-000

$3.59

34

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.12

35

WASHER (8.5X28)

90534-MV4-000

$2.62

36

CLAMP, CANISTER HOSE

90682-SA0-671

$7.13

37

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

95001-45003-60M

$32.93

38

BULK HOSE, FUEL (7.5X8000) (7.5X35)

95001-75008-60M

$93.20

39

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$93.20

40

CLIP, TUBE (B12)

95002-02120

Unavailable

41

CLAMP, TUBE (D12)

95002-41200-08

$2.30

42

CLIP, TUBE (C9)

95002-50000

$1.14

45

BOLT, FLANGE (8X35)

95701-08035-00

$2.09
