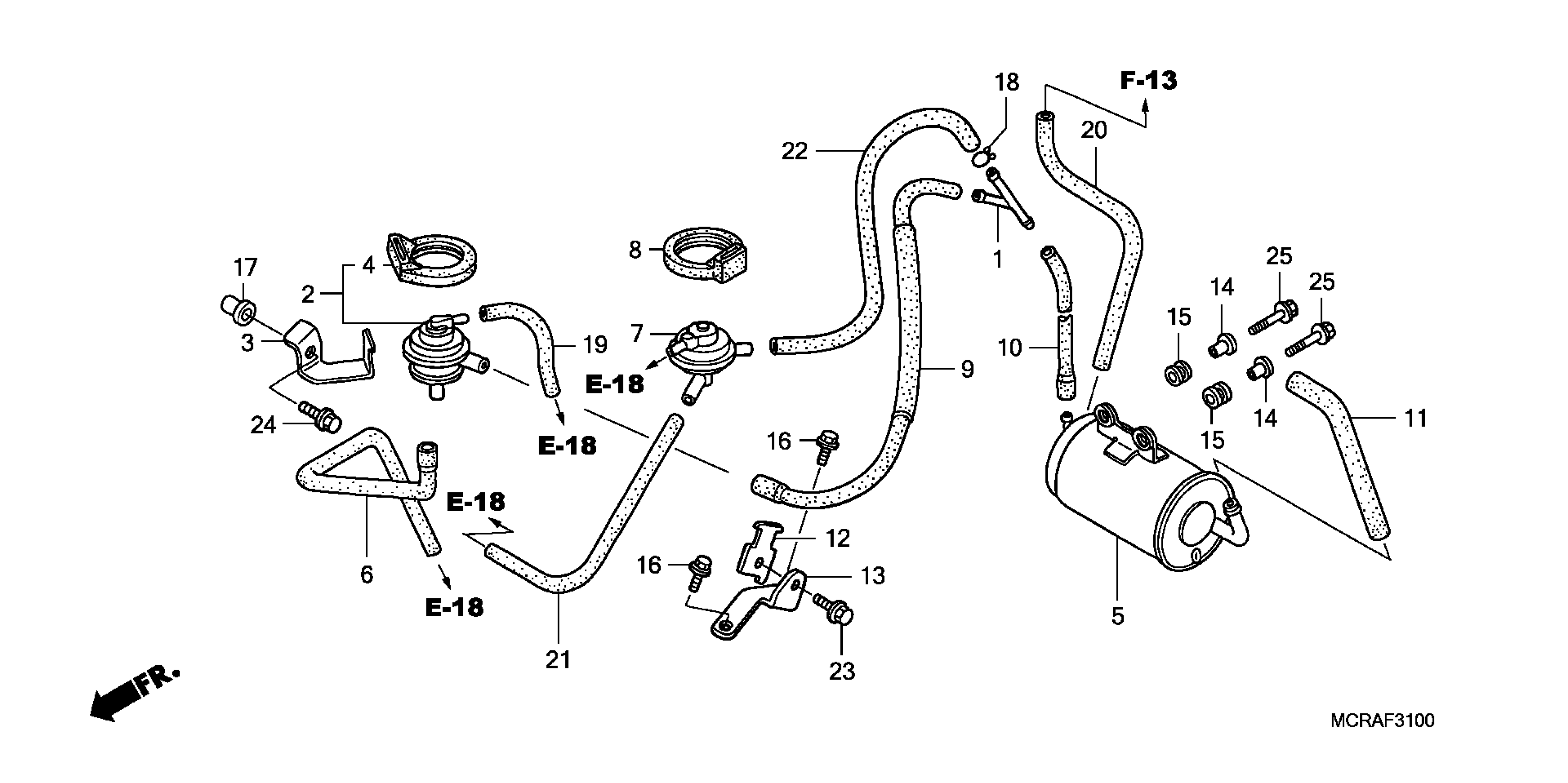

Honda VT750DCAAC (07) SHADOW SPIRIT, JPN, VIN# JH2RC441-7M100001 EVAP CANISTER Diagram

#

Description
Price

1

JOINT, FUEL TUBE

16959-MY1-000

$17.77

2

VALVE ASSY., AIR VENT CONTROL

17300-MBA-771

$248.82

3

STAY, AIR VENT CONTROL VALVE

17301-MBA-770

Unavailable

4

RUBBER, MOUNTING

17305-MJ4-771

$12.46

5

CANISTER

17410-MBA-772

$251.77

6

TUBE, AIR VENT CONTROL VALVE

17416-MBA-770

$12.21

7

VALVE, PURGE CONTROL

17440-MCR-L00

$93.41

8

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

9

TUBE, AIR VENT CONTROL VALVE

17461-MCR-L00

$10.16

10

TUBE, CANISTER

17462-MBA-770

$14.33

11

TUBE, AIR

17463-MBA-770

Unavailable

12

STAY A, PURGE CONTROL VALVE

17465-MCR-L00

$7.21

13

STAY B, PURGE CONTROL VALVE

17466-MCR-L00

Unavailable

14

COLLAR, SETTING

61104-422-000

$6.91

15

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

16

BOLT, FLANGE (5X12)

90003-892-000

$1.49

17

NUT, COWL SETTING (6MM)

90114-KAS-900

$5.04

18

CLIP, TUBE (B12)

95002-02120

$2.00

19

BULK HOSE, VACUUM (3.5X1000) (3.5X85)

95005-35001-20M

$9.67

20

BULK HOSE, VACUUM (3.5X1000) (3.5X600)

95005-35001-20M

$9.67

21

BULK HOSE, VACUUM (8X1000) (8X70)

95005-80001-20M

$23.91

22

BULK HOSE, VACUUM (8X1000) (8X90)

95005-80001-20M

$23.91

23

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

24

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

25

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
