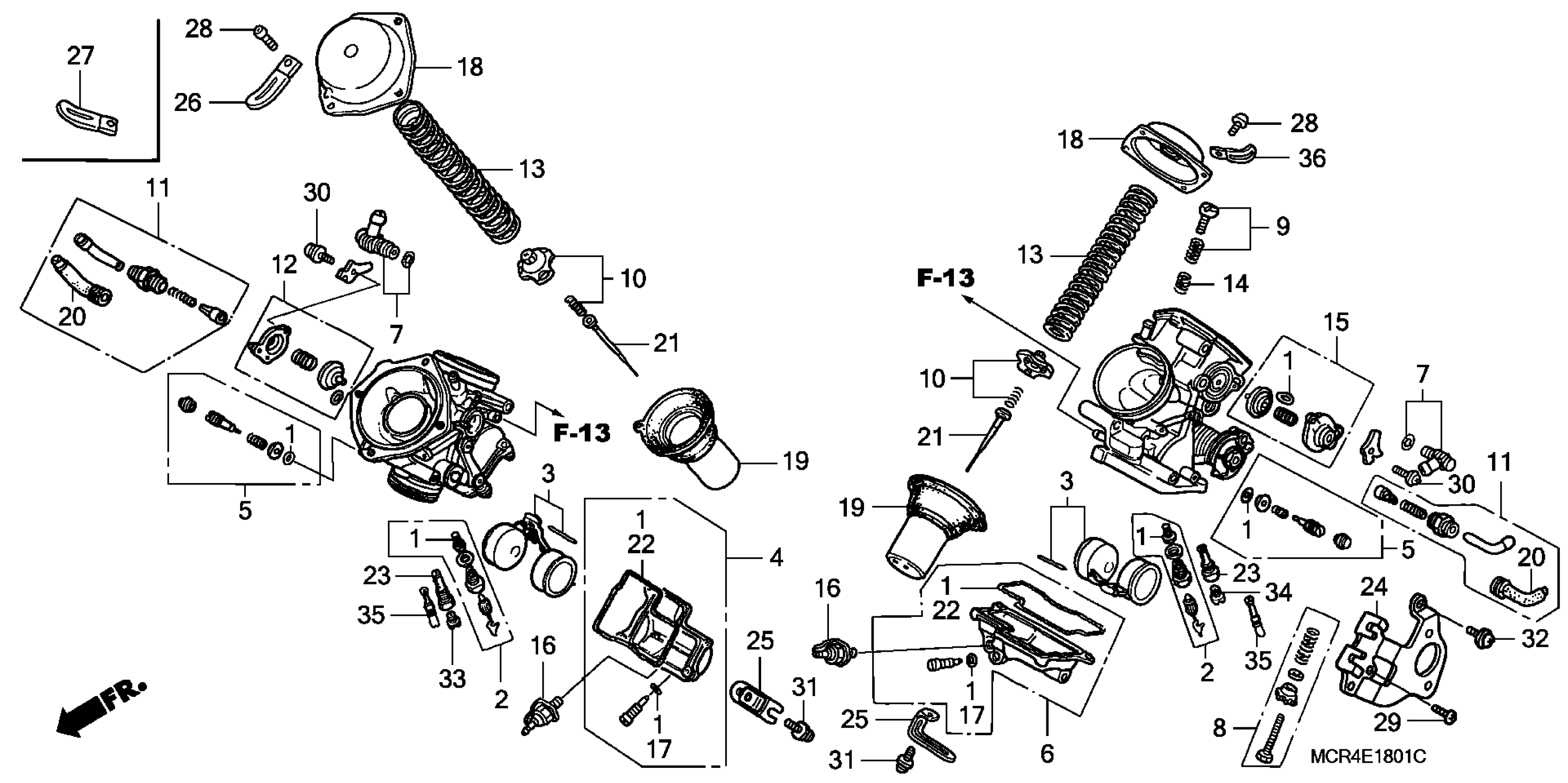

Honda VT750DCAAC (06) SHADOW SPIRIT 750, JPN, VIN# JH2RC441-6M000001 TO JH2RC441-6M009999 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

GASKET SET

16010-MZ8-B40

$41.04

2

VALVE SET, FLOAT

16011-MZ8-B40

$48.83

3

FLOAT SET

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT

16015-MCR-D01

Unavailable

5

SCREW SET

16016-MBA-980

$19.20

6

CHAMBER SET, FLOAT

16023-MCR-D01

Unavailable

7

JOINT SET

16026-MR1-004

$41.04

8

SCREW SET

16028-MAH-000

$55.95

9

SCREW SET

16029-KEJ-900

Unavailable

9

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

9

SCREW SET This part replaces 16029-MN4-003.

16029-KEJ-900

Unavailable

10

PLATE SET, VALVE

16037-ME5-671

$29.52

11

VALVE SET, STARTER

16046-MAV-000

$54.49

12

VALVE SET, AIR CUT

16048-MCR-L01

Unavailable

13

SPRING, VACUUM PISTON

16050-MCR-L01

Unavailable

14

SPRING

16052-ME9-672

$5.67

15

VALVE SET, AIR CUT

16055-MCR-L01

$111.88

16

HEATER ASSY. This part replaces 16070-GBJ-J01.

16070-GBJ-J02

$59.80

16

HEATER ASSY.

16070-GBJ-J02

$59.80

17

O-RING (1.3X4.3)

16076-ND5-004

$2.56

18

TOP

16107-MBA-600

Unavailable

19

PISTON, VACUUM

16111-MCR-J01

$94.83

20

CAP, CABLE SEALING

16118-GB4-003

$13.07

21

NEEDLE, JET

16131-MCR-A01

$33.05

22

GASKET, FLOAT CHAMBER

16163-MAH-750

$35.12

23

HOLDER, NEEDLE JET

16165-MBA-600

$34.51

24

STAY, WIRE

16169-MCR-D01

Unavailable

25

CLIP, PLATE

16179-ME9-751

$10.15

27

CLIP, WIRE

94591-46000

$2.98

28

SCREW, PAN (4X10)

93500-04010-0A

$1.49

28

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

29

SCREW-WASHER (4X8)

93892-04008-00

$1.49

29

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

30

SCREW-WASHER (4X12)

93892-04012-00

$1.49

30

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

31

SCREW-WASHER (4X16)

93892-04016-00

$1.49

31

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

32

SCREW-WASHER (5X12)

93892-05012-00

$1.49

32

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

33

JET, MAIN (#105)

99101-KFG-1050

$12.78

34

JET, MAIN (#108)

99101-MAZ-1080

$8.92

35

JET, SLOW (#40)

99103-MT2-0400

$12.25
