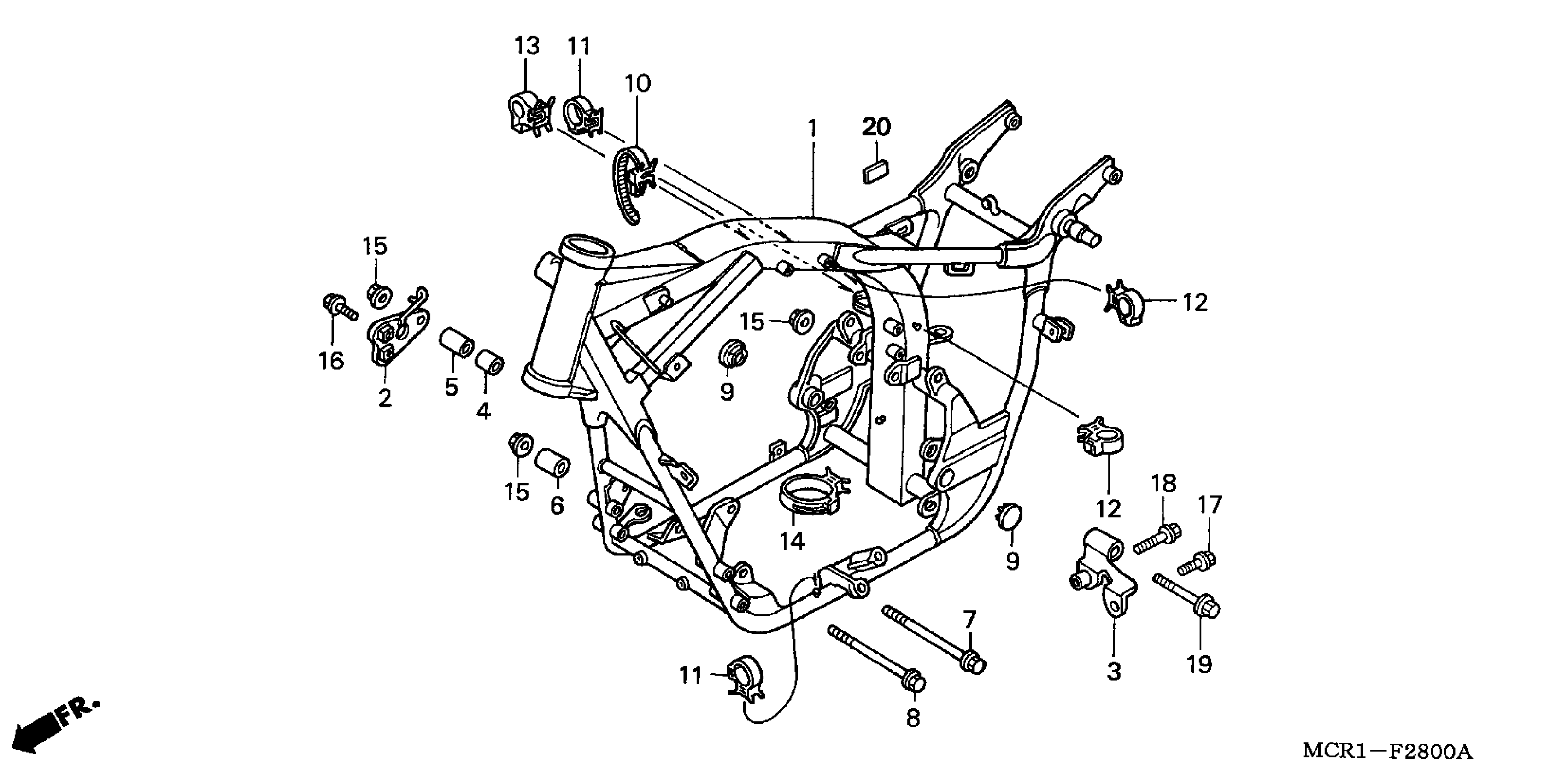

Honda VT750DCAAC (03) SHADOW SPIRIT 750, JPN, VIN# JH2RC441-3M700001 TO JH2RC441-3M799999 FRAME Diagram

FRAME *NH1* (BLACK)

50100-MCR-L00ZA

Unavailable

PLATE, FR. ENGINE HANGER (UPPER)

50176-MCL-000

Unavailable

STAY, RR. ENGINE HANGER

50178-MCR-D00

$27.00

COLLAR, FR. ENGINE HANGER (B)

50197-KR1-760

$12.66

COLLAR, FR. ENGINE HANGER

50197-MCL-000

$8.39

COLLAR, ENGINE HANGER

50363-KT7-000

$14.25

BOLT, FLANGE (10X205)

90102-KBV-000

$19.65

BOLT, FLANGE (10X190)

90103-MBB-000

$15.53

CAP, LOCK NUT

90302-ME5-000

$19.37

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X20)

95701-08020-07

$1.87

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

BOLT, FLANGE (10X70)

95801-10070-07

$2.64
