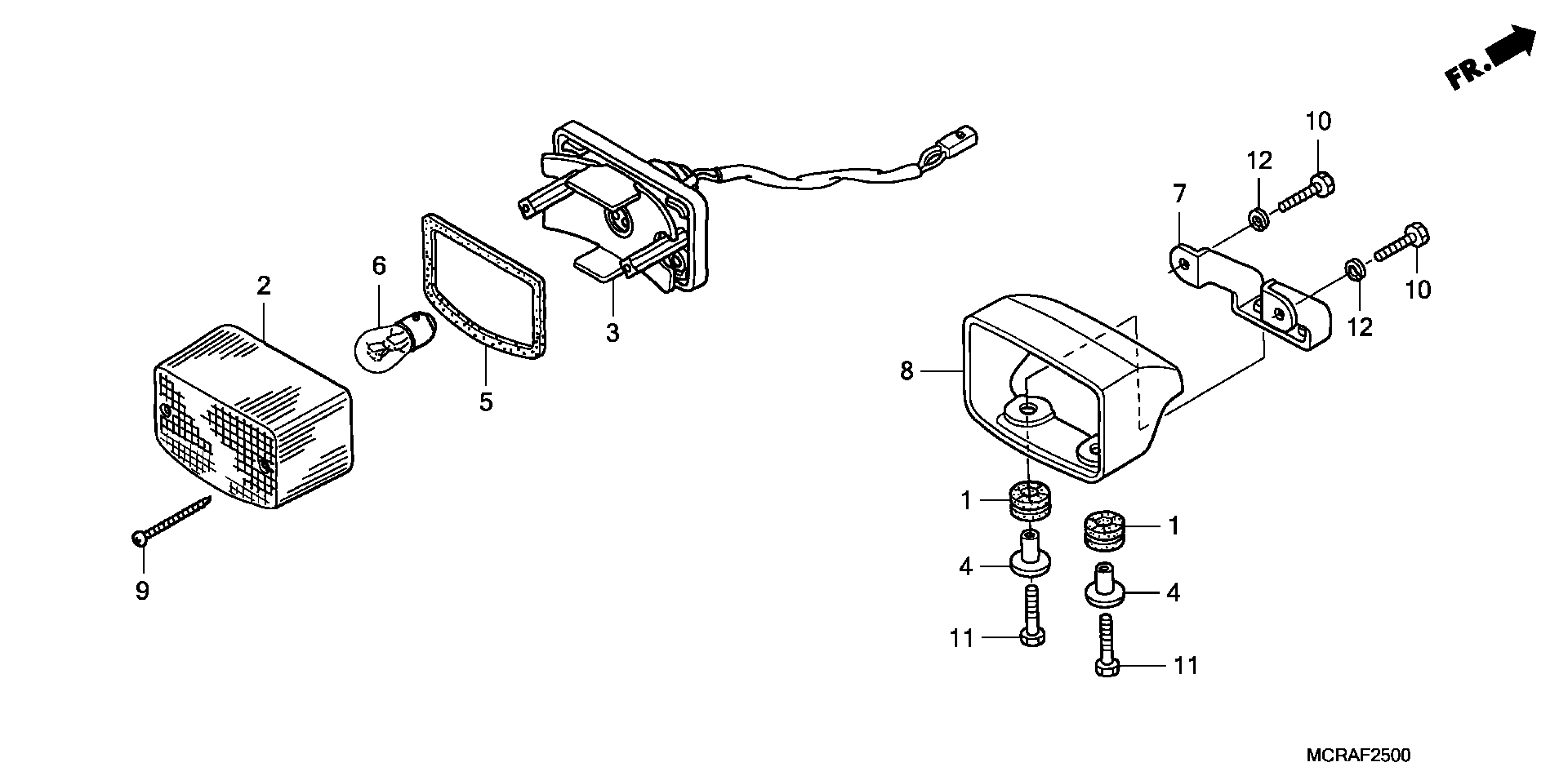

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 TAILLIGHT Diagram

#

Description

Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

2

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$28.19

2

LENS, TAILLIGHT (COO) (STANLEY)

33702-MGR-305

$28.19

3

SOCKET, TAILLIGHT

33703-MCR-A41

Unavailable

4

COLLAR, TAILLIGHT MOUNTING

33707-MCR-A00

$3.85

5

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.02

6

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.20

7

STAY, TAILLIGHT

80128-MCR-A00

$6.96

8

COVER, TAILLIGHT

80350-MCR-A00

Unavailable

9

SCREW, TAPPING (4X40)

90105-GAM-000

$4.69

10

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.04

10

BOLT, HEX. (5X12)

92101-05012-0G

$1.04

11

BOLT, HEX. (5X25)

92101-05025-0G

$0.72

12

WASHER, SPRING (5MM)

94111-05000

$1.04
