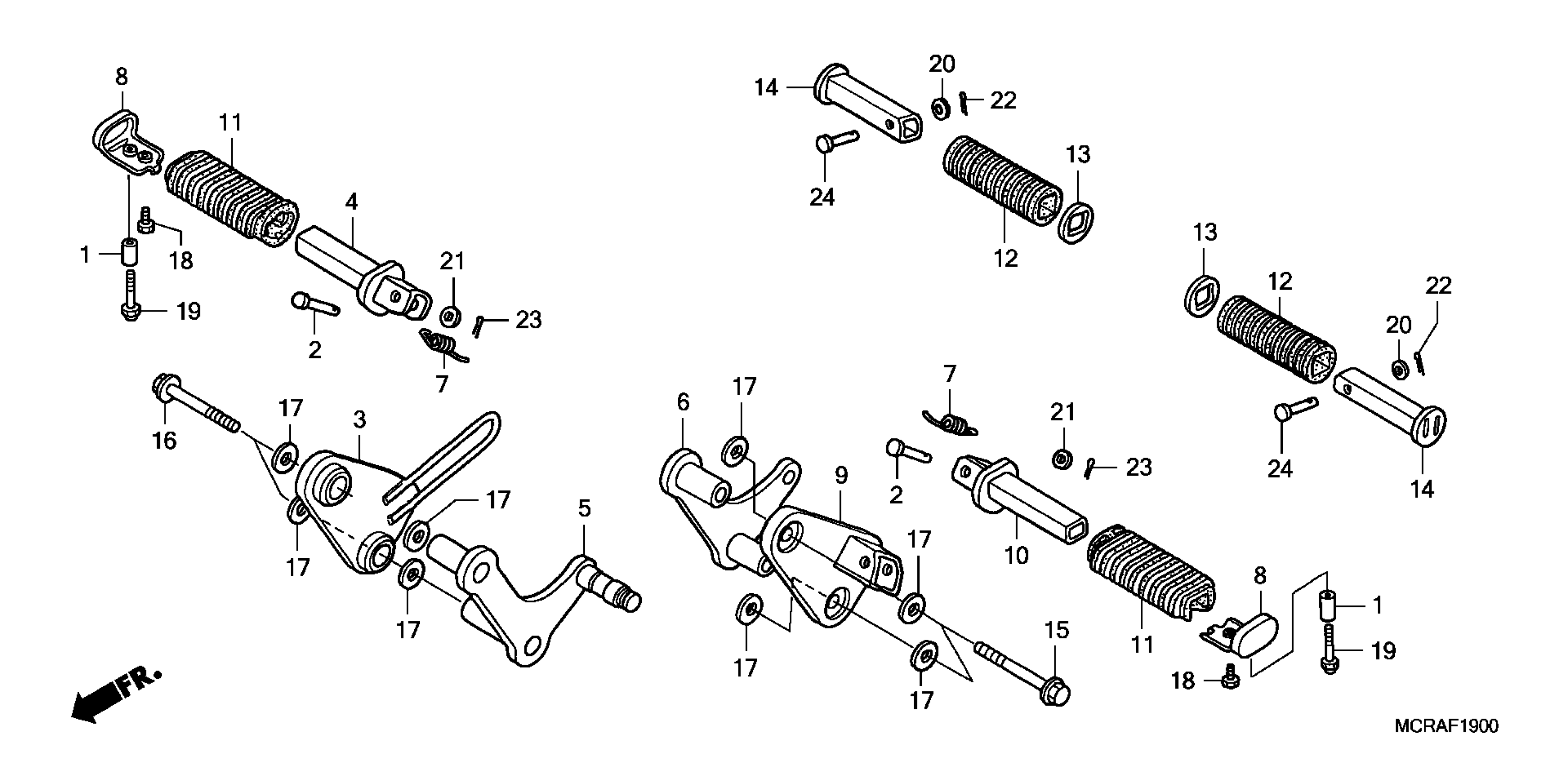

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 STEP Diagram

#

Description
Price

1

COLLAR, MUFFLER BAND

18318-HN5-670

Unavailable

2

PIN, STEP BAR JOINT

50603-033-010

$2.98

3

BRACKET, R. MAIN STEP

50610-MCL-000

Unavailable

4

BAR, R. STEP

50612-MR1-000

$28.16

5

BRACKET, R. STEP

50615-MCL-000

Unavailable

6

BRACKET, L. STEP

50616-MCL-000

Unavailable

7

SPRING, STEP RETURN

50617-MB1-700

$5.41

8

STOPPER, STEP RUBBER

50619-MN0-000

$15.60

9

BRACKET, L. MAIN STEP

50620-MCL-000

$95.26

10

BAR, L. STEP

50642-MR1-000

$28.16

11

RUBBER, MAIN STEP

50661-MN0-000

$10.64

12

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$12.78

12

RUBBER, PILLION FOOTPEG

50716-371-660

$12.78

13

WASHER, PILLION STEP

50712-413-000

$3.22

14

BAR, PILLION STEP

50715-KC2-770

Unavailable

15

BOLT, FLANGE (10X85)

90101-KL8-730

$4.09

16

BOLT, SPECIAL FLANGE (10X110)

90124-MCL-000

$6.40

17

WASHER, PLAIN (10.3MM)

90527-230-000

$1.87

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

19

BOLT, HEX. CAP (6X38)

92501-06038-0A

$2.70

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM)

94101-06800

Unavailable

21

WASHER, PLAIN (8MM)

94101-08000

$0.75

22

PIN, SPLIT (1.6X12)

94201-16120

$0.94

23

PIN, SPLIT (2.0X15)

94201-20150

$0.94

24

PIN A, PILLION STEP

95015-81000

$2.01
