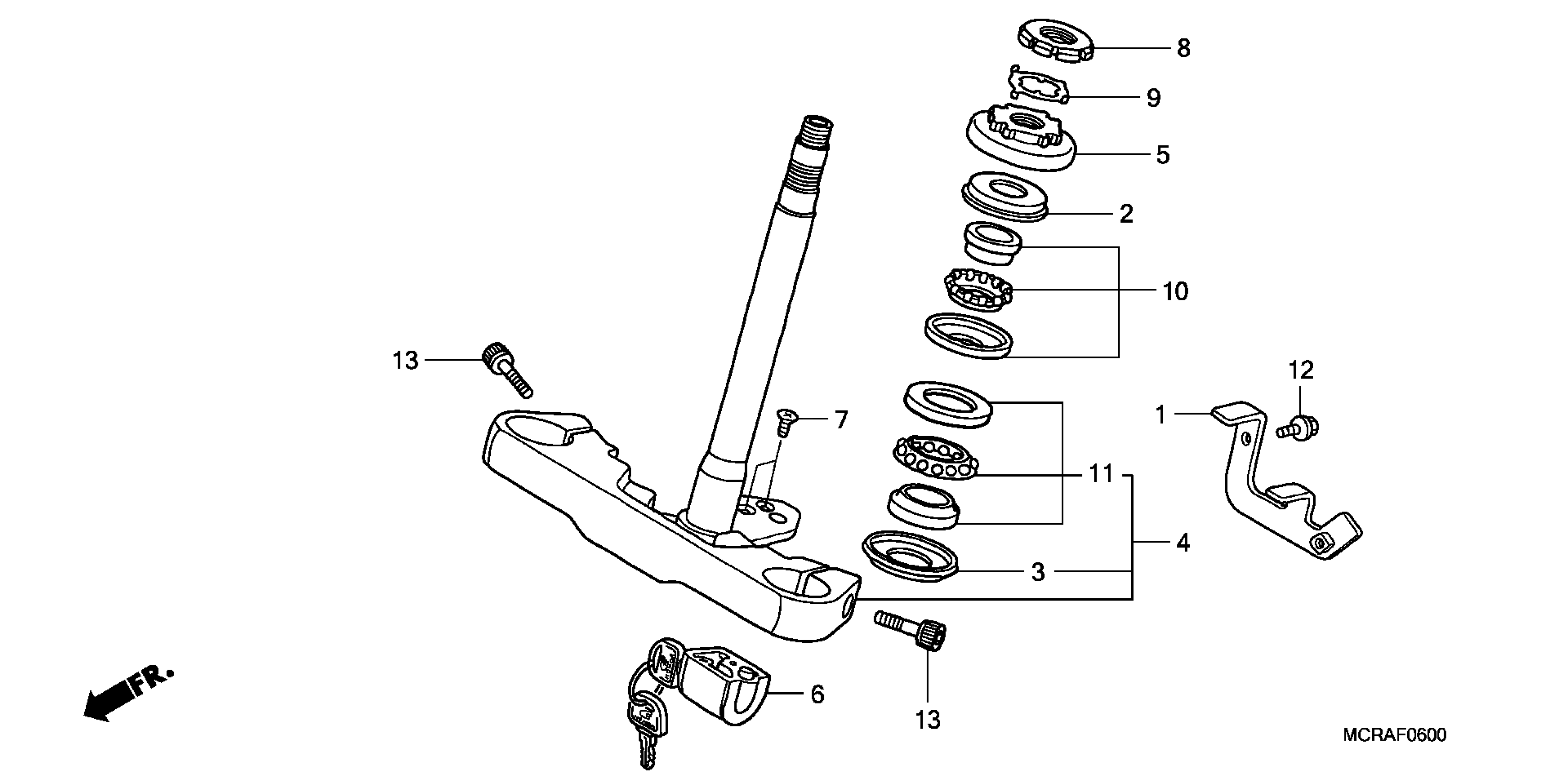

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 STEERING STEM Diagram

#

Description

Price

1

CLAMP, FR. BRAKE HOSE

45130-MCL-000

Unavailable

2

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

3

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

4

STEM SUB-ASSY., STEERING

53219-MCR-A20

$337.95

5

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

6

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$26.66

7

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

8

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

9

WASHER, LOCK

90506-425-830

$7.05

10

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

11

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

12

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

13

BOLT, SOCKET (10X25)

96700-10025-10

$2.51
