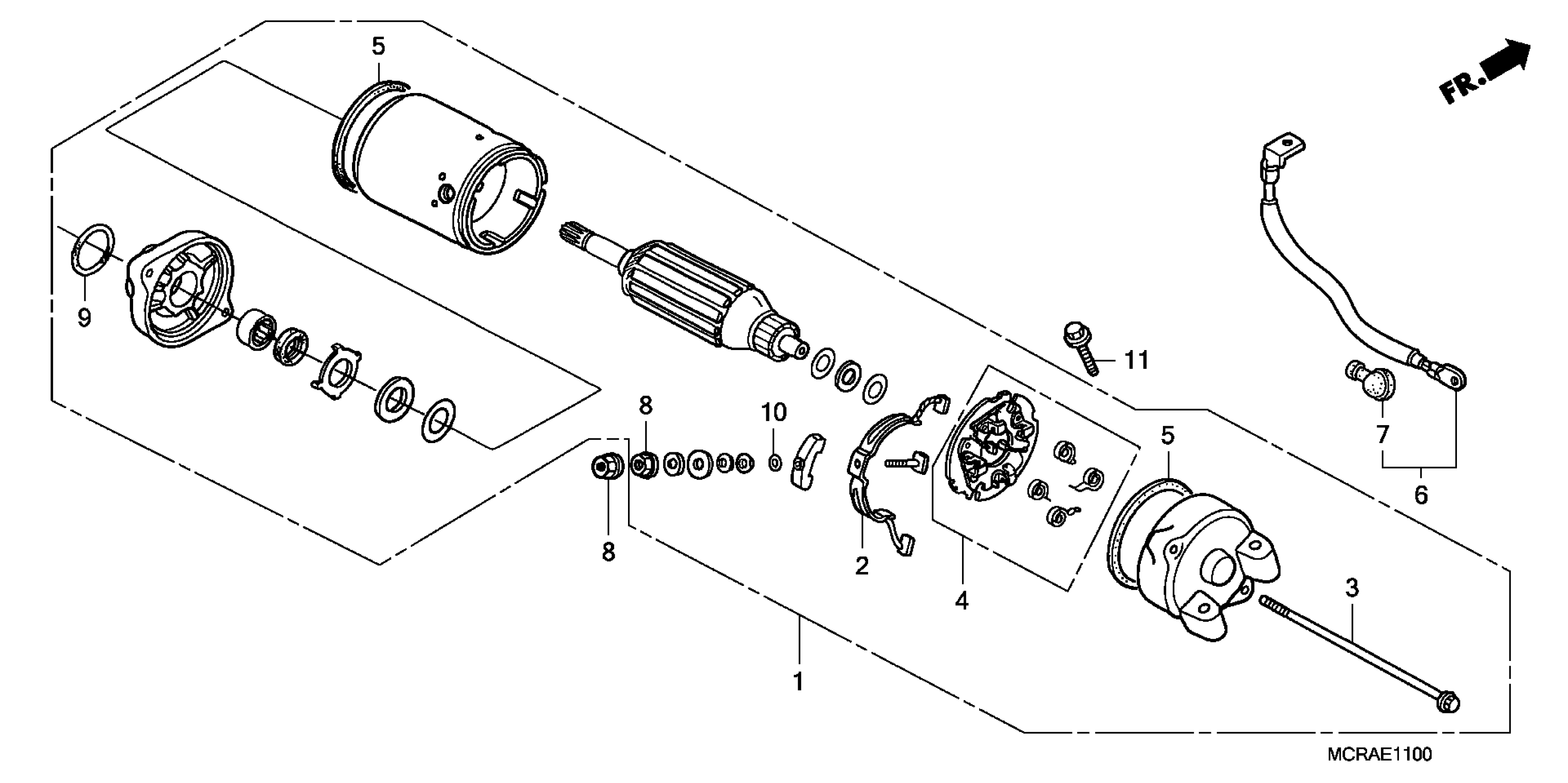

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 STARTING MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-MBK-J01

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$21.00

BOLT, SETTING This part replaces 31205-MF5-008.

31205-MR1-008

$3.64

BOLT, SETTING

31205-MR1-008

$3.64

HOLDER SET, BRUSH

31206-MR6-008

$22.08

RING

31207-KS5-901

$2.90

CABLE, STARTER MOTOR

32410-MCL-J00

$20.90

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X32)

95801-06032-00

$0.93
