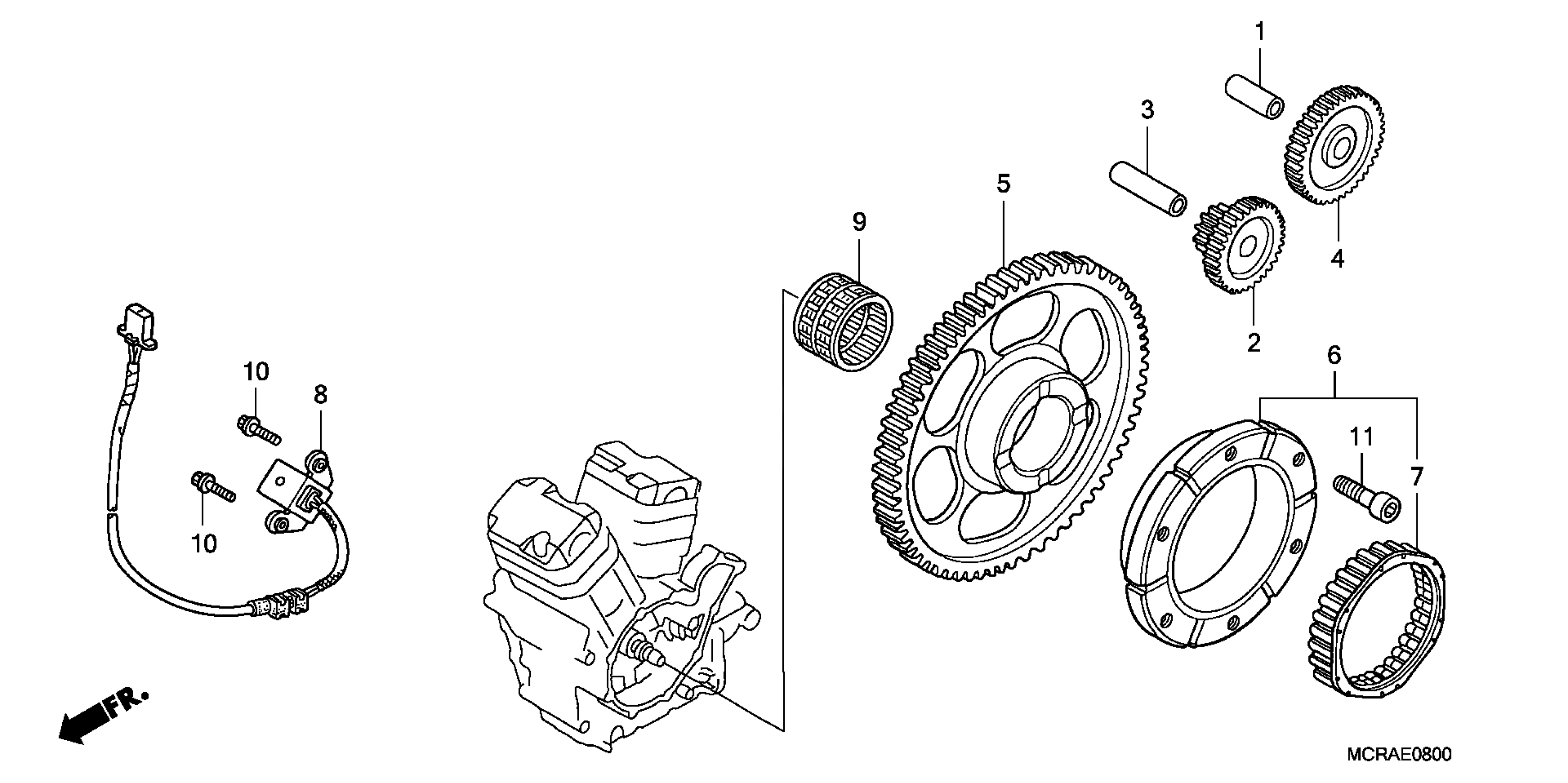

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 PULSE GENERATOR Diagram

#

Description

Price

1

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$8.57

1

PIN, PISTON

13111-GS7-000

$8.57

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$8.57

2

GEAR, STARTER REDUCTION (39T/12T) This part replaces 28101-MN8-000.

28101-MGS-D30

$73.07

3

PIN (10X44)

28102-ME9-000

$9.23

4

GEAR, STARTER (51T) This part replaces 28106-ME9-010.

28106-MGS-D30

$70.99

5

GEAR, STARTER DRIVEN (88T)

28110-MV1-000

Unavailable

6

CLUTCH OUTER ASSY., STARTING

28125-MBA-003

$212.23

7

CLUTCH, ONE-WAY

28126-MAA-A01

$75.83

8

GENERATOR, PULSE This part replaces 30300-MBA-610.

30300-MBA-611

$55.80

9

BEARING, NEEDLE (32X40X23)

91002-MAY-003

Unavailable

10

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

11

BOLT, SOCKET (8X35)

96700-08035-10

$2.04
