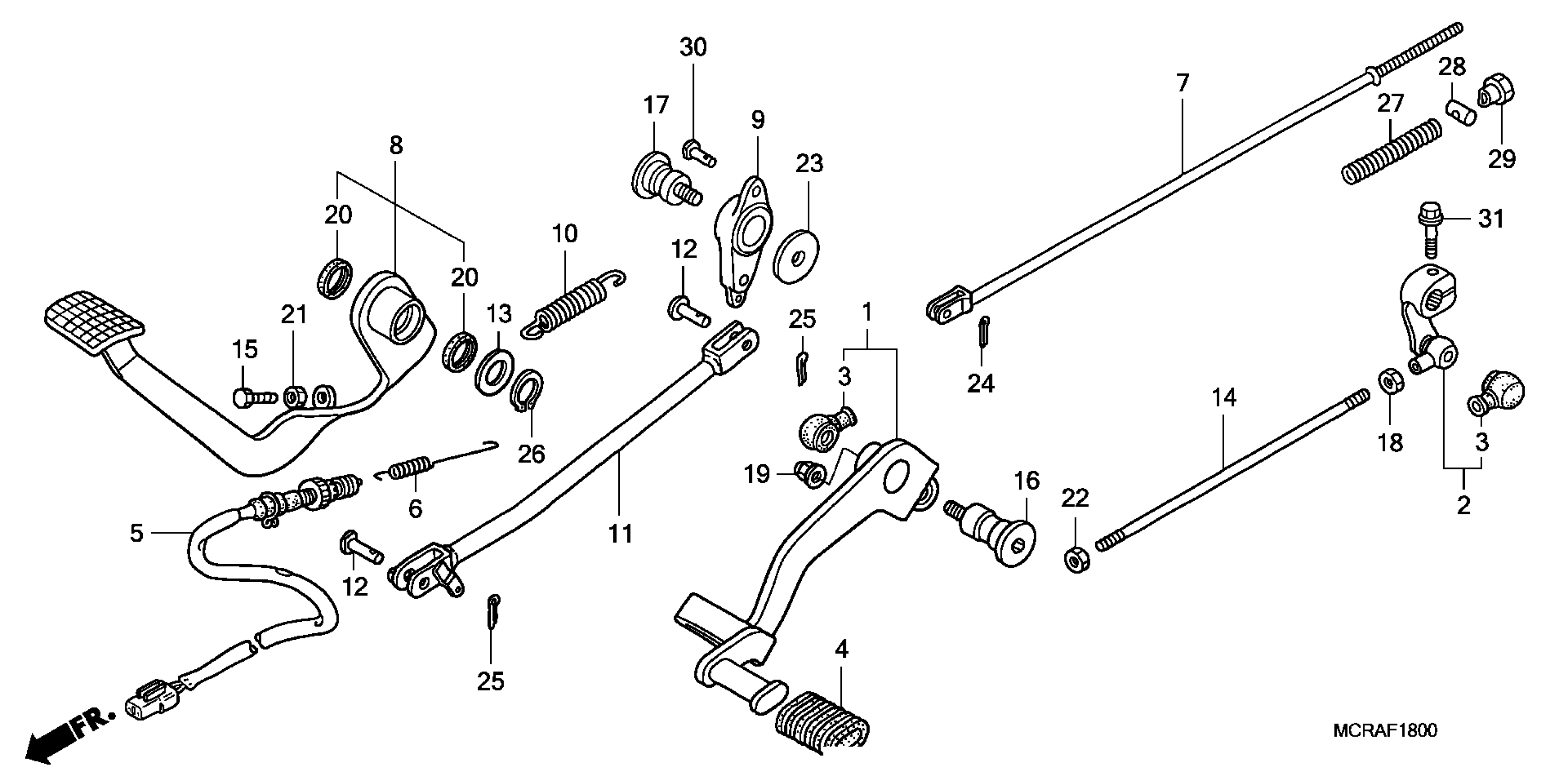

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24705-MCL-J00

Unavailable

2

ARM, GEARSHIFT

24710-MCL-J00

Unavailable

3

COVER, DUST

24724-422-000

$6.68

4

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

5

SWITCH ASSY., RR. STOP This part replaces 35350-MCL-003.

35350-MFP-N02

$29.49

5

SWITCH ASSY., RR. STOP This part replaces 35350-MFP-N01.

35350-MFP-N02

$29.49

5

SWITCH ASSY., RR. STOP

35350-MFP-N02

$29.49

6

SPRING, STOP SWITCH

35357-KW7-900

Unavailable

7

ROD, RR. BRAKE

43451-MBK-000

Unavailable

8

PEDAL ASSY., RR. BRAKE

46500-MCL-J00

$118.82

9

ARM, RR. BRAKE MIDDLE

46510-MBA-300

Unavailable

10

SPRING, BRAKE PEDAL

46511-KR6-000

$5.40

11

ROD, RR. BRAKE MIDDLE

46540-MCL-000

Unavailable

12

PIN, MIDDLE ROD JOINT

46545-MBA-000

$6.14

13

WASHER, BUSH

53312-657-000

$6.70

14

BOLT, TIE ROD

90065-MCL-000

Unavailable

15

BOLT, HEX. (6X25)

90101-KW3-660

$2.49

16

BOLT B, PEDAL PIVOT

90116-MBA-000

$20.97

17

BOLT, PEDAL PIVOT

90116-MCL-000

Unavailable

18

NUT, HEX. (8MM)

90201-MR1-000

Unavailable

19

NUT, CAP (10MM)

90201-HA0-000

$6.45

19

NUT, CAP (10MM) This part replaces 90210-438-000.

90201-HA0-000

$6.45

20

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

21

NUT, HEX. (6MM)

94002-06000-0S

$1.49

22

NUT, HEX. (8MM)

94002-08020-0S

$1.49

23

WASHER, PLAIN (10MM)

94103-10700

$1.49

24

PIN, SPLIT (2.0X12)

94201-20120

$1.49

25

PIN, SPLIT (2.0X15)

94201-20150

$1.49

26

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

27

SPRING A, BRAKE ROD

95014-73100

$1.49

28

JOINT B, BRAKE ARM

95015-32001

$1.49

29

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

30

PIN C, JOINT

95015-53000

$3.06

31

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
