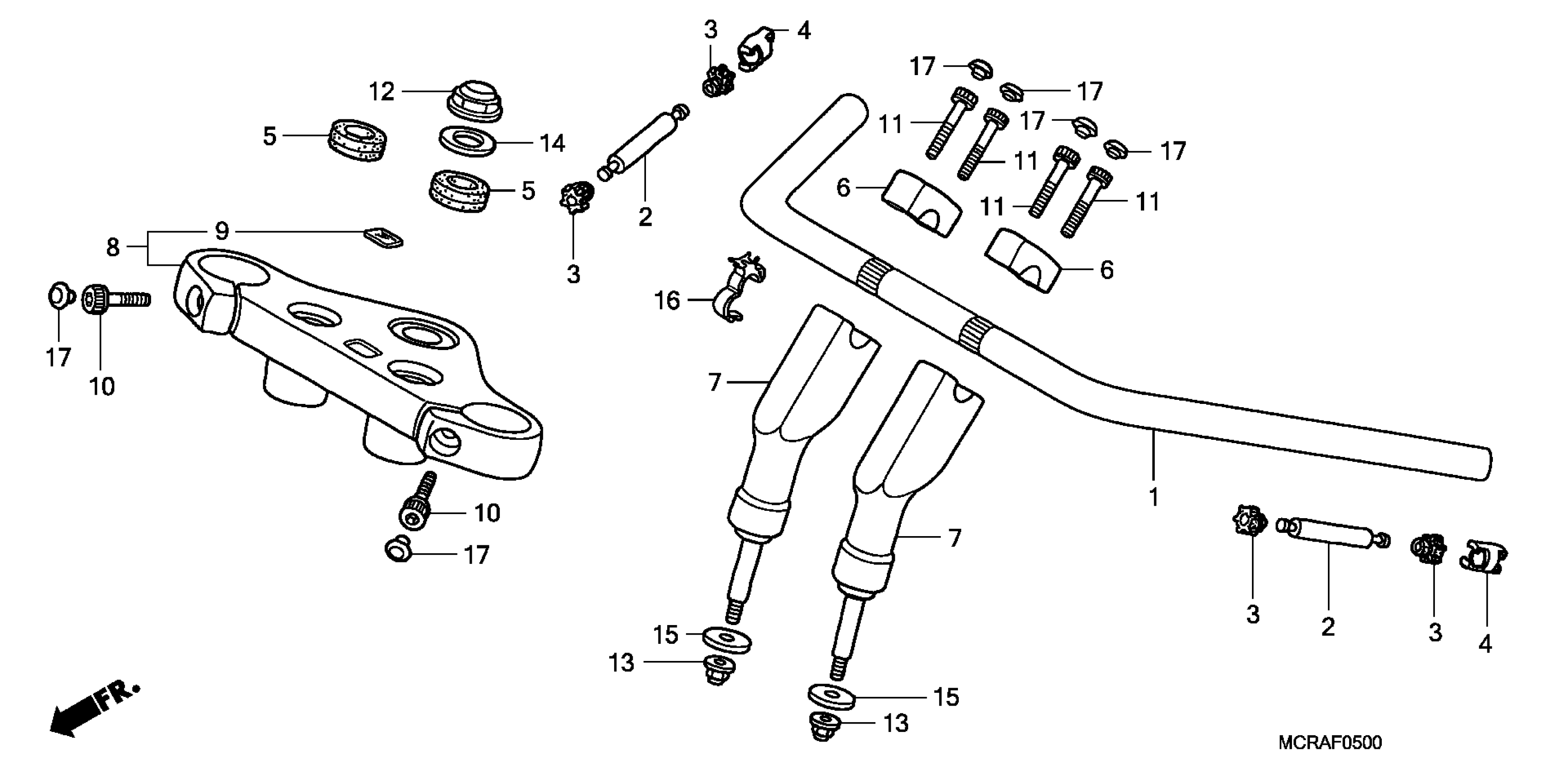

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 HANDLEBAR + TOP BRIDGE Diagram

HANDLEBAR

53100-MCL-000

Unavailable

WEIGHT, HANDLE

53106-MCL-000

$14.15

RUBBER, HANDLE WEIGHT

53107-MCR-D00

Unavailable

RING, HANDLE WEIGHT SNAP

53108-KW9-920

$7.04

CAP, HANDLE (LOWER)

53125-KW9-700

$5.31

HOLDER, HANDLE (UPPER)

53131-MM8-000

$19.24

HOLDER, HANDLE (LOWER)

53231-MCL-000

$83.97

BRIDGE ASSY., FORK TOP

53300-MCL-J00

Unavailable

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

BOLT, SOCKET (8X30)

90112-MCL-000

$2.84

BOLT, SOCKET (8X32)

90154-ME9-000

$5.73

NUT, STEERING STEM

90304-415-000

$19.83

NUT, FLANGE (8MM) This part replaces 90309-ML4-901.

90309-MR1-770

$3.12

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

WASHER, STEERING STEM

90503-283-000

$4.37

WASHER, HANDLE HOLDER (LOWER)

90535-MR1-770

$3.81

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77
