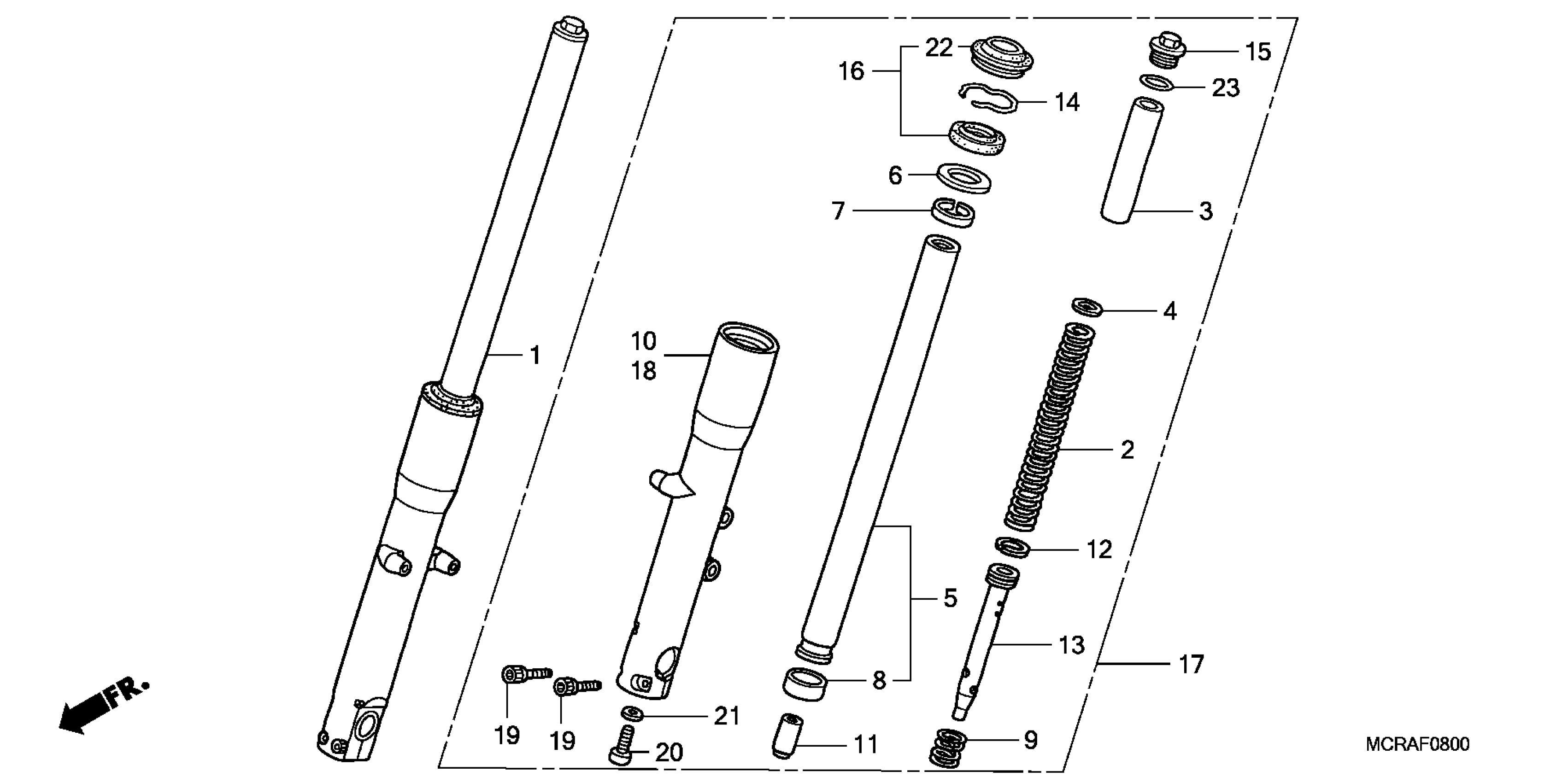

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MCR-A61

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-MCR-A01

$85.87

3

COLLAR, SPRING (SHOWA)

51402-MN0-003

$21.08

4

PLATE, SPRING JOINT

51404-MB4-003

$4.94

5

PIPE, FR. FORK

51410-MCL-003

Unavailable

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

9

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

10

CASE, R. (LOWER)

51420-MCL-003

$386.33

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

12

RING, PISTON (SHOWA)

51437-MN5-003

$8.53

13

PIPE, SEAT

51440-MCL-003

Unavailable

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51455-MCL-003

$46.87

16

SEAL SET, FR. FORK This part replaces 51490-MEE-D01.

51490-MFF-D01

$28.00

17

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MCR-A61

Unavailable

18

CASE, L. (LOWER)

51520-MCL-003

$386.33

19

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$8.55

23

O-RING

91356-MB4-003

$3.54
