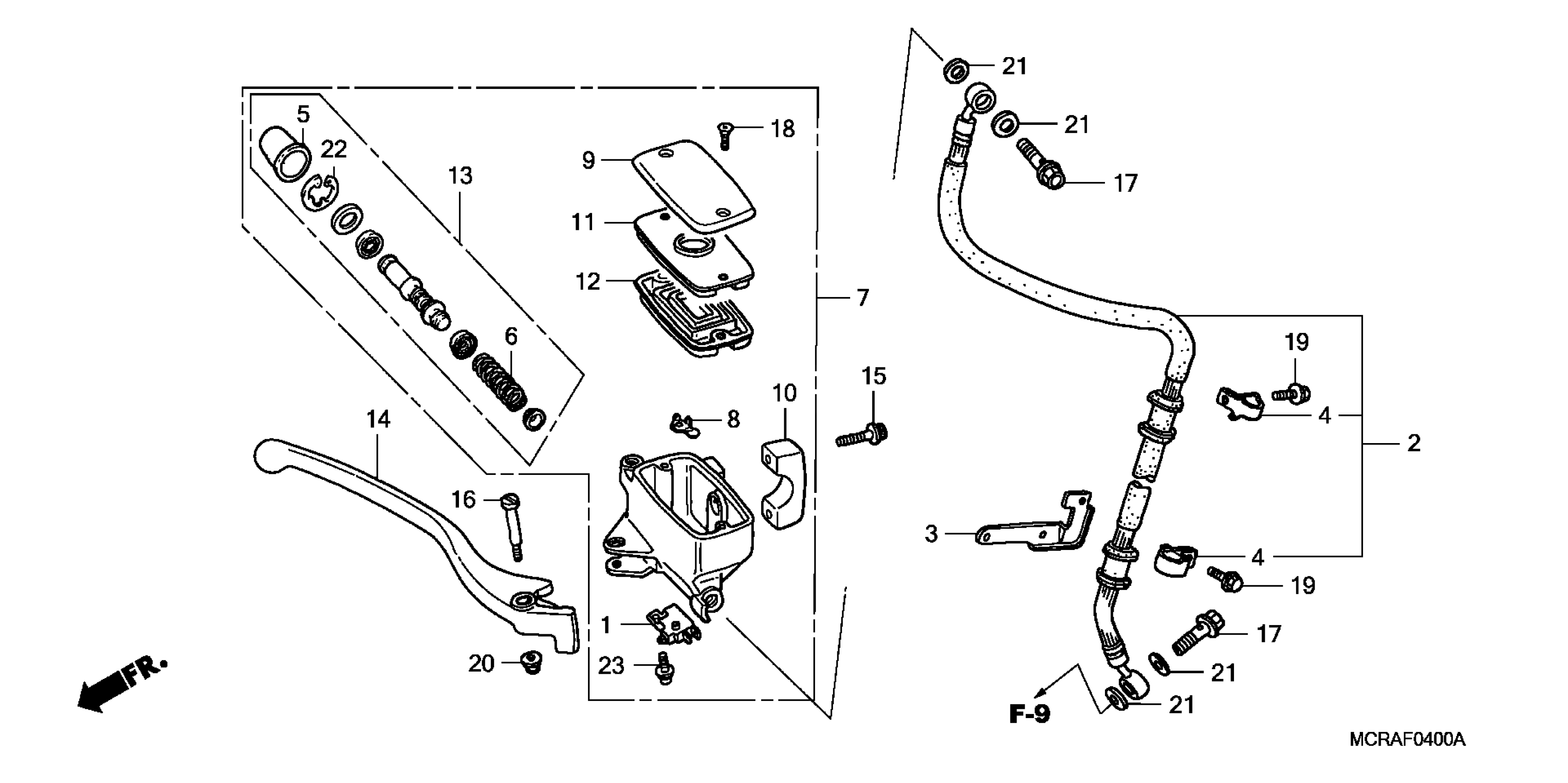

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

HOSE, FR. BRAKE

45126-MCR-A41

Unavailable

BRACKET, L. FR. HOSE CLIP

45138-MCL-J00

$4.84

CLAMP, BRAKE HOSE

45159-MBZ-K00

$3.51

BOOT

45504-410-003

$11.17

SPRING

45506-KA3-731

$4.68

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MCL-006

Unavailable

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$28.10

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$25.01

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

DIAPHRAGM

45520-MM5-006

$13.87

MASTER CYLINDER SET

45530-MN9-305

$46.60

LEVER, R. HANDLE (COO)

53175-MR1-305

$14.96

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.96

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22)

90145-MS9-612

$6.99

SCREW, FLAT

90158-MT7-000

$1.99

BOLT, FLANGE (6X12)

90181-KV3-700

$1.43

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32
