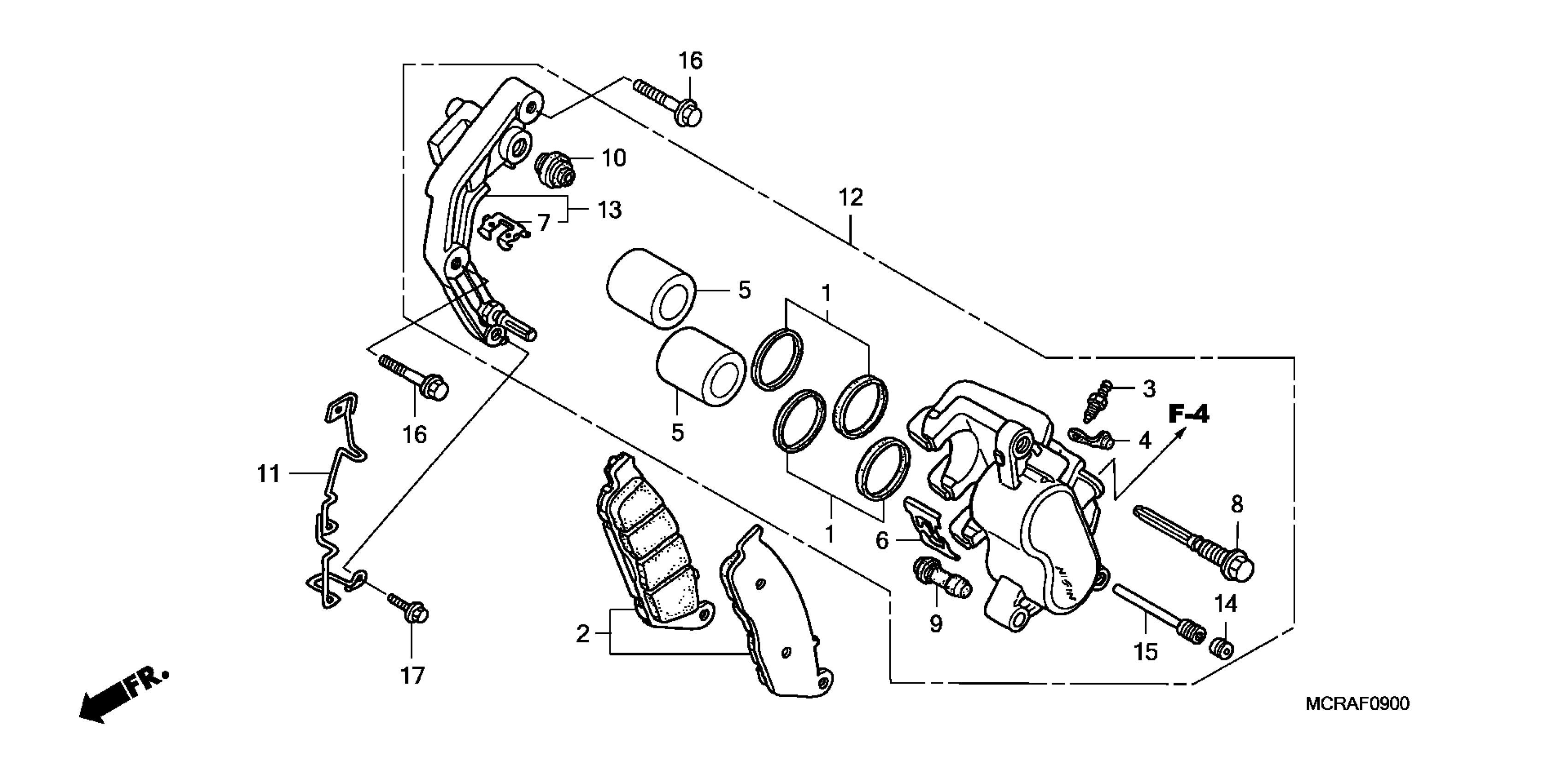

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, FR. This part replaces 06455-MBK-751.

06455-MBK-752

$55.57

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-ML4-006

$37.87

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RETAINER

45112-MT4-006

$5.80

BOLT, PIN

45131-MA3-006

$17.59

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

GUIDE, SPEED SENSOR CORD

45136-MCL-000

$20.64

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MCL-J01

$362.98

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MCK-A01

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.75

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92
