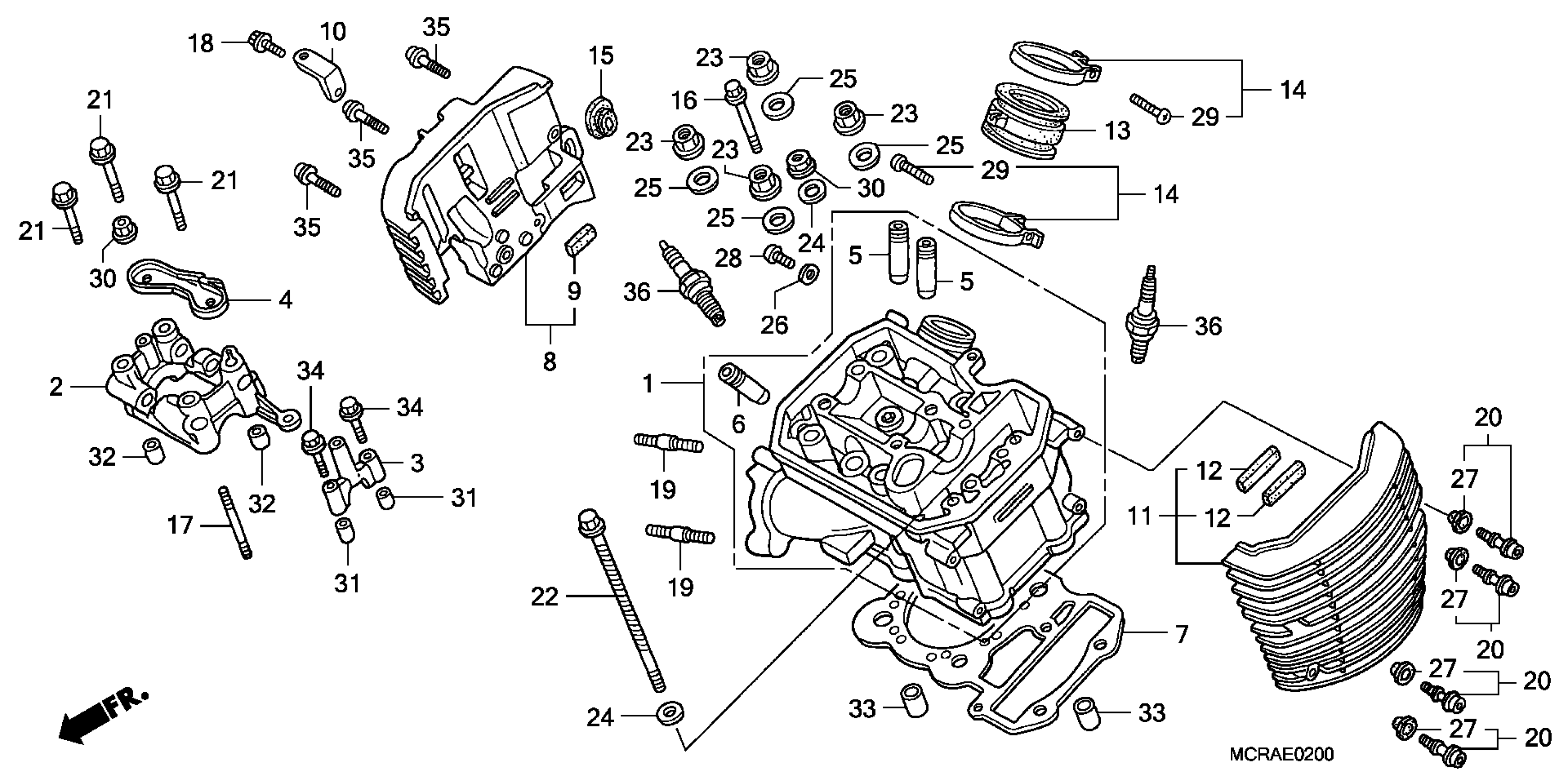

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 CYLINDER HEAD (FR.) Diagram

#

Description
Price

1

CYLINDER HEAD, FR.

12210-MBA-710

Unavailable

2

HOLDER, CAMSHAFT

12223-MV1-000

Unavailable

3

HOLDER, SIDE CAMSHAFT

12225-MF5-000

$53.10

4

PLATE, VALVE OIL GUIDE

12226-MF5-000

$20.05

5

GUIDE, IN. VALVE (OVER SIZE)

12231-MF5-305

$22.36

6

GUIDE, EX. VALVE (OVER SIZE)

12241-MF5-315

$20.56

7

GASKET, CYLINDER HEAD

12251-MN8-911

$36.47

8

FIN, R. FR. CYLINDER HEAD

12260-MBA-711

$169.69

9

RUBBER A, SEAT

12262-MBA-300

Unavailable

10

STAY, FR. AIR CLEANER MOUNT

12265-MBA-000

$5.63

11

FIN, FR. CYLINDER HEAD (L/R)(RR)

12270-MBA-710

$159.13

12

RUBBER B, SEAT

12272-MBA-300

Unavailable

13

INSULATOR, CARBURETOR

16211-MAW-600

$26.57

14

BAND A, INSULATOR

16218-MN8-750

$9.68

15

GROMMET, SIDE COVER

83551-MA6-000

$3.35

16

BOLT, FLANGE

90004-GHB-770

$5.44

17

BOLT, STUD (8X50)

90013-MF5-000

$4.97

18

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.35

19

BOLT, STUD

90016-MBA-000

$4.39

20

BOLT ASSY., SPECIAL (6X22)

90020-MCL-000

Unavailable

21

BOLT, FLANGE

90066-MC7-000

$4.05

22

BOLT, CYLINDER

90081-MZ8-H01

$10.31

23

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

23

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

23

NUT, FLANGE (10MM)

94050-10000

$1.59

24

WASHER (8MM)

90401-MZ8-H00

$2.51

25

WASHER (10MM)

90410-HC4-000

$3.81

26

WASHER, SEALING (5MM)

90452-323-000

$1.59

27

RUBBER, MOUNTING

90543-MBA-000

$2.92

28

SCREW, PAN (5X8)

93500-05008-0A

$1.49

29

SCREW, PAN (5X25)

93500-05025-0G

$1.49

30

NUT, FLANGE (8MM)

94050-08080

$1.49

31

PIN, DOWEL (8X14)

94301-08140

$2.25

32

PIN, DOWEL (10X16)

94301-10160

$2.28

33

PIN, DOWEL (14X20)

94301-14200

$2.28

34

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

35

BOLT, SOCKET (6X20)

96600-06020-07

$1.49

36

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

36

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

36

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

36

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

36

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

36

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
