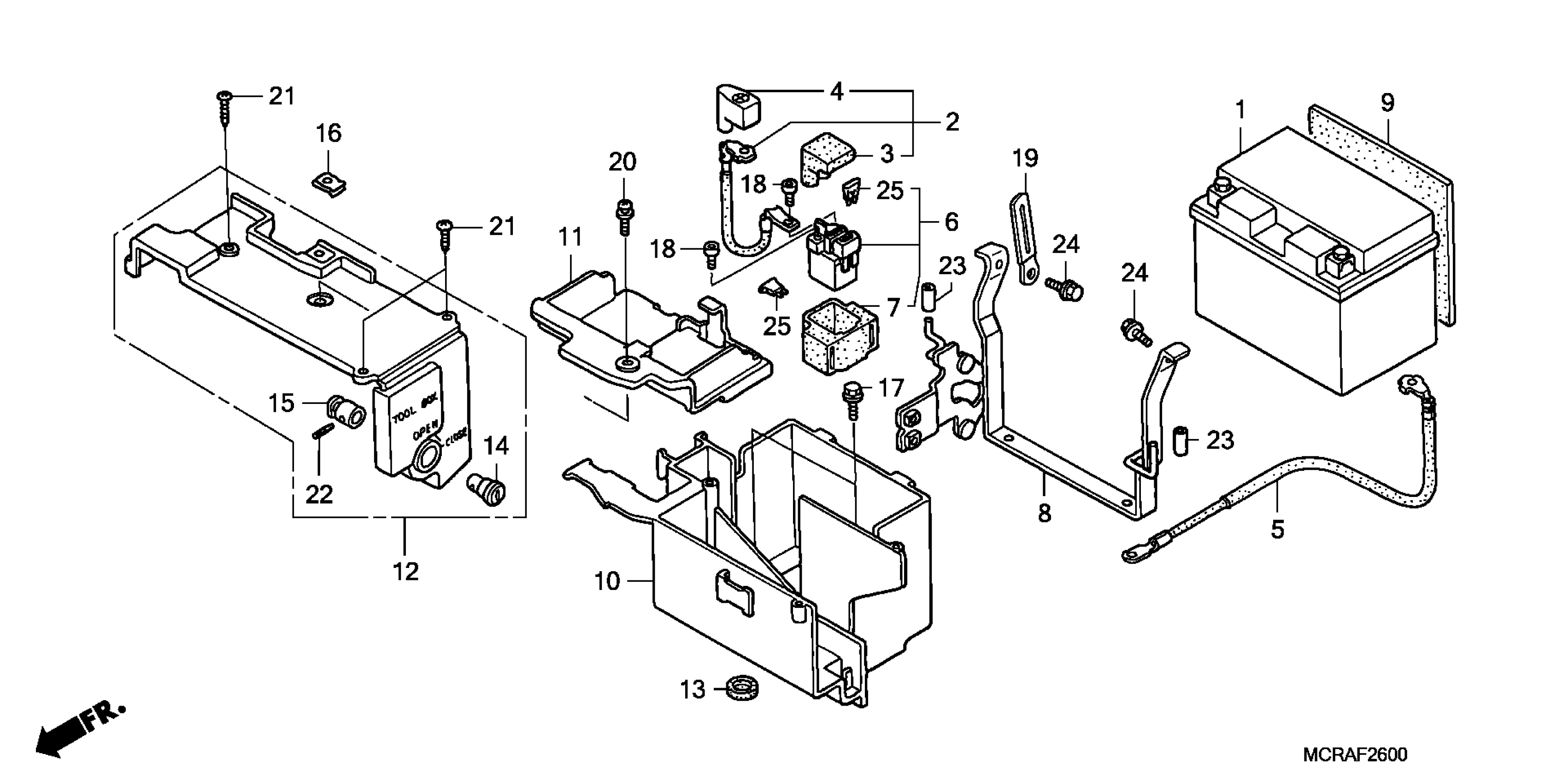

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 BATTERY Diagram

#

Description
Price

1

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$184.48

2

CABLE, STARTER BATTERY

32401-MCL-000

Unavailable

3

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-KAZ-000.

32406-KAZ-010

$5.97

4

COVER, BATTERY TERMINAL

32414-MCF-000

$5.90

5

CABLE, BATTERY GROUND

32601-MCL-000

Unavailable

6

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$107.90

7

RUBBER, SHOCK

35856-KBG-007

$9.49

8

HOLDER, BATTERY BOX

50322-MCR-A40

Unavailable

9

CUSHION, BATTERY

50325-KM1-000

$4.26

10

BOX, BATTERY

50325-MCL-000

Unavailable

11

COVER, BATTERY

50326-MCL-000

$14.17

12

COVER ASSY., TOOL

50330-MCL-000

Unavailable

13

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.42

14

BODY, KEY

83507-422-000

$3.52

15

STOPPER, KEY BODY

83508-KBG-000

$2.64

15

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.64

16

NUT, FENDER SETTING

84601-HA7-670

$5.15

17

BOLT, FLANGE (6MM)

90003-GAZ-000

Unavailable

18

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

19

CLIP (2X60)

91410-679-000

$9.04

20

SCREW-WASHER (6X20)

93893-06020-07

$1.12

21

SCREW, TAPPING (4X12)

93903-24380

Unavailable

22

PIN, SPRING (2X14)

94305-20141

$0.86

23

BULK HOSE, VINYL (7X11X1000) (7X11X30)

95003-19001-10M

Unavailable

24

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

25

FUSE, BLADE (30A)

98200-33000

$1.19
