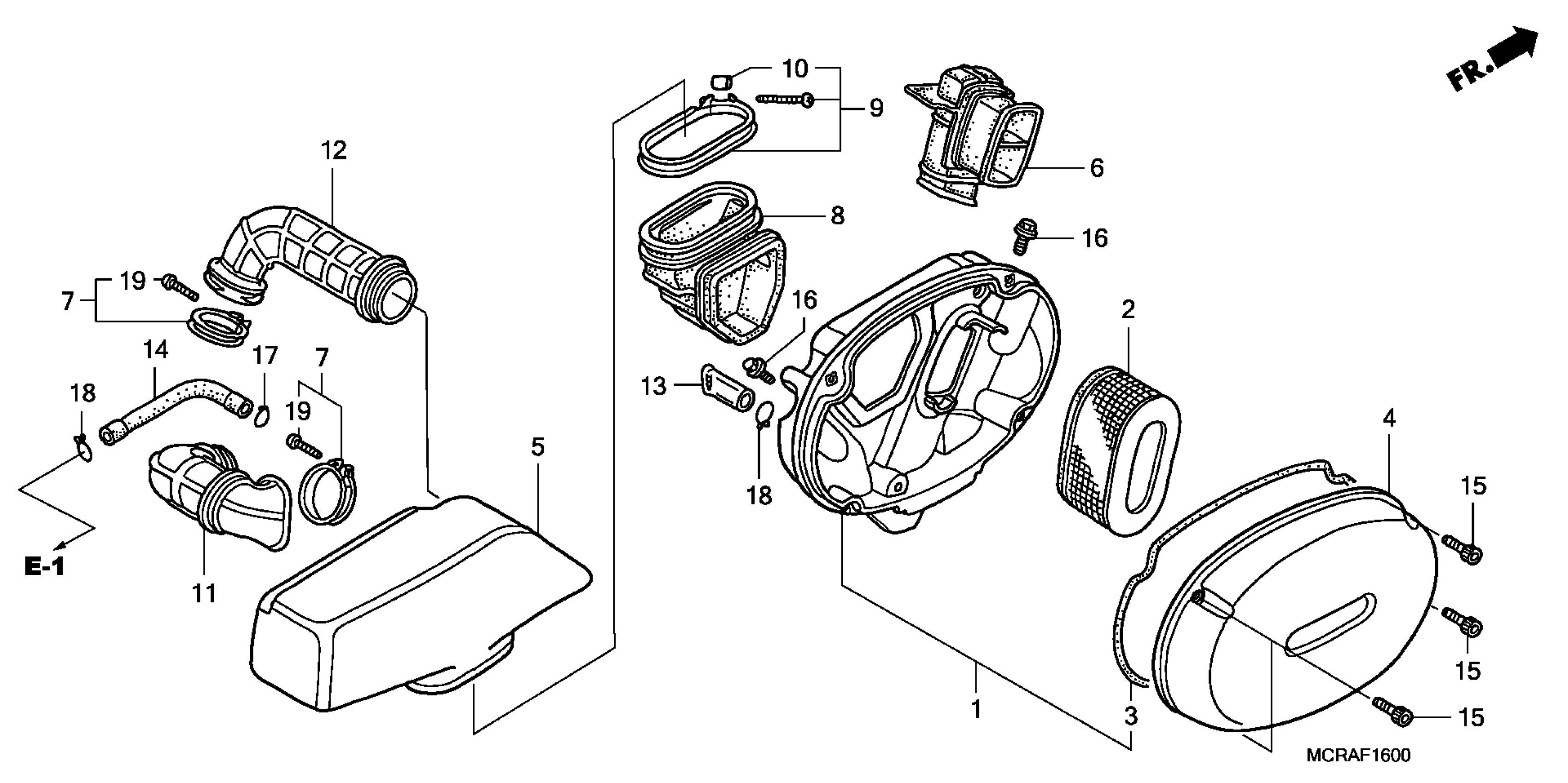

Honda VT750DCAA (07) SHADOW SPIRIT, JPN, VIN# JH2RC440-7M100001 AIR CLEANER Diagram

HOUSING, AIR CLEANER

17210-MCR-A00

$58.80

ELEMENT, AIR CLEANER

17213-MBA-010

$20.81

SEAL, AIR CLEANER

17219-MCL-300

Unavailable

COVER, AIR CLEANER

17231-MCL-000

Unavailable

CHAMBER, AIR CLEANER

17251-MCL-300

Unavailable

DUCT, AIR CLEANER

17253-MBA-310

$31.67

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-KC1-730.

95018-56200

$8.57

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$8.57

TUBE, SUB-CHAMBER CONNECTING

17255-MBA-300

$45.42

BAND, CHAMBER CONNECTING TUBE

17256-MBA-000

$11.44

COLLAR (4X12.5)

17257-MBA-000

$2.38

TUBE, R. AIR CLEANER CONNECTING

17258-MBA-300

Unavailable

TUBE, L. AIR CLEANER CONNECTING

17259-MBA-300

Unavailable

TUBE ASSY., DRAIN

17358-KR8-750

$7.41

TUBE, BREATHER

17552-MBA-000

$5.23

BOLT, SOCKET (5X12)

90089-KR0-000

$2.80

BOLT, FLANGE (6MM)

90118-MCJ-000

$2.83

CLIP, TUBE (B16)

90643-MK3-781

$2.04

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.48

SCREW, PAN (4X20)

93500-04020-0G

$0.71
