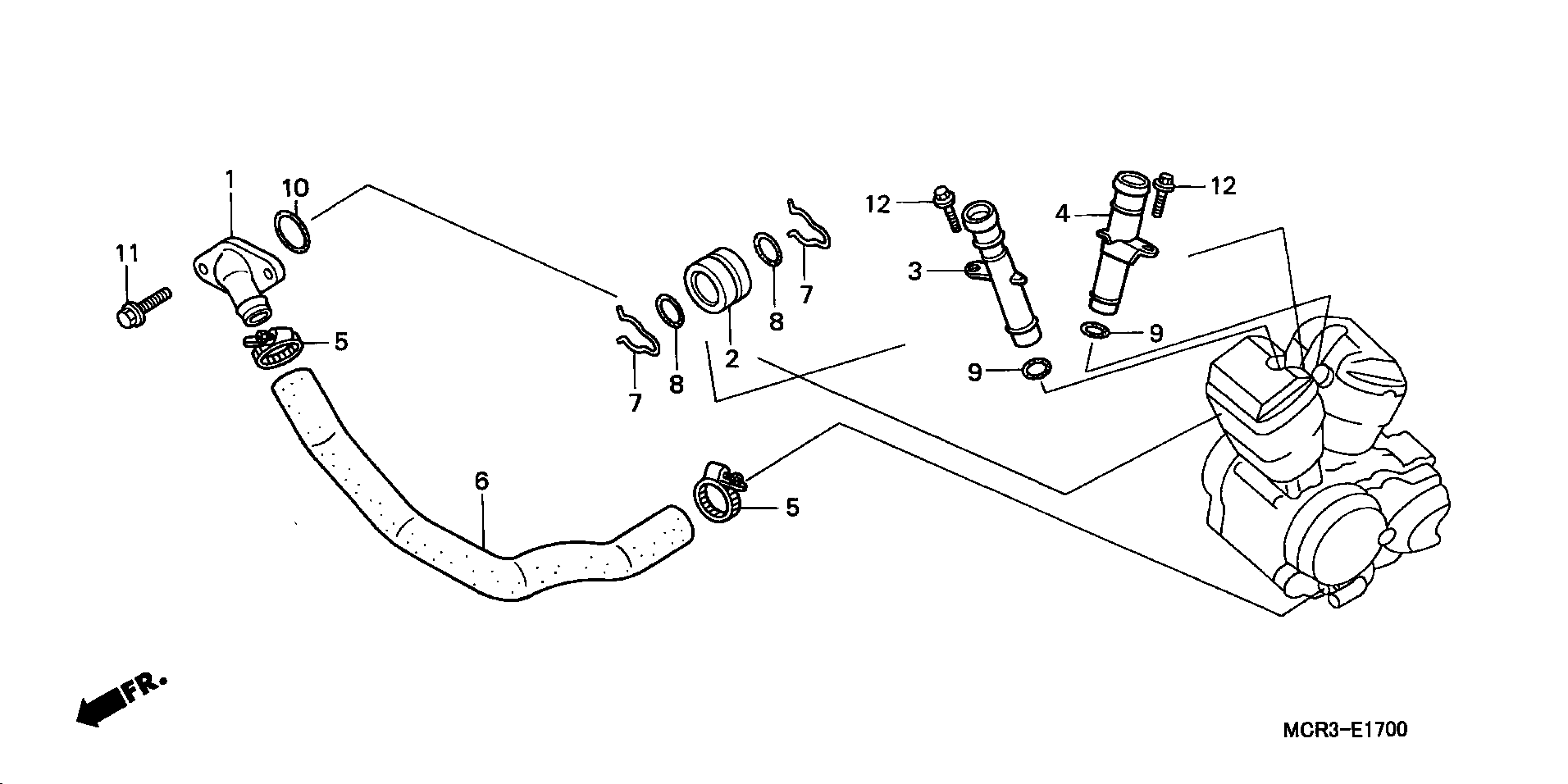

Honda VT750DCAA (06) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-6M000001 TO JH2RC440-6M009999 WATER PIPE Diagram

#

Description
Price

1

JOINT, WATER HOSE

19503-MAV-750

Unavailable

2

JOINT, WATER (FR/RR)

19505-MEG-000

$15.16

3

PIPE, FR. OUTLET WATER

19511-MN8-740

$19.77

4

PIPE, RR. OUTLET WATER

19512-MBA-000

$25.38

5

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

6

HOSE, MAIN WATER

19520-MBA-000

$21.95

7

CLIP, RING (22MM)

90601-MEG-000

$2.72

8

O-RING (21.5X2)

91310-MB0-003

$2.92

9

SEAL, WATER PIPE (16MM)

91315-MN8-000

$4.31

10

O-RING

91356-169-003

$2.92

11

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

12

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
