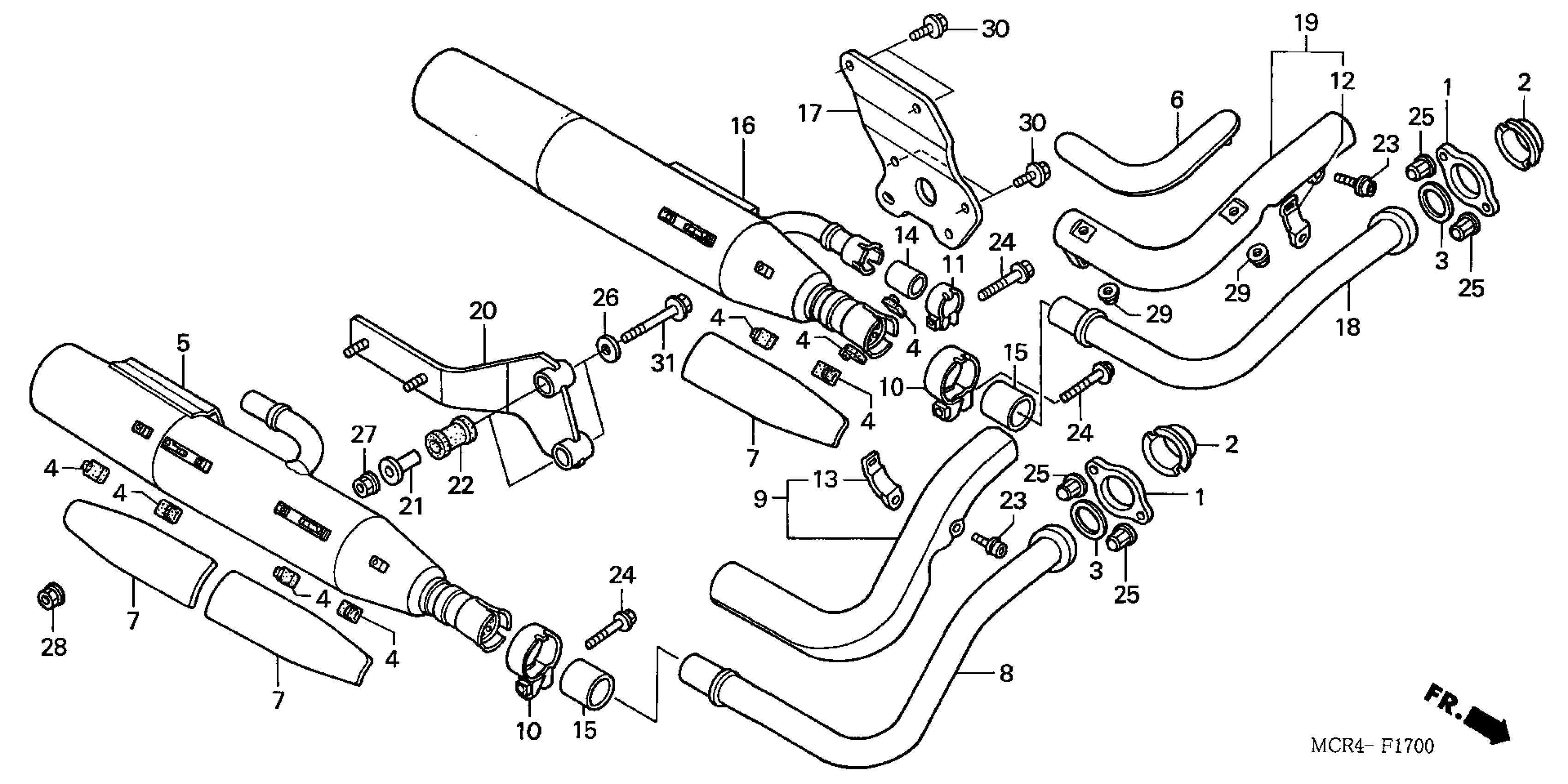

Honda VT750DCAA (06) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-6M000001 TO JH2RC440-6M009999 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MBA-003

$26.53

2

COLLAR, EX. PIPE JOINT

18233-MBA-000

$15.27

3

GASKET, EX. PIPE

18291-MM5-860

$5.17

4

RUBBER, PROTECTOR

18293-MN0-000

$2.13

5

MUFFLER, FR.

18310-MCR-A01

$524.54

6

PROTECTOR, RR. EX. PIPE

18315-MCL-003

$135.74

7

COVER, MUFFLER

18315-MR1-000

$37.20

8

PIPE, FR. EX.

18320-MCR-D01

$195.31

9

COVER, FR. EX. PIPE

18325-MCR-D01

$210.85

10

BAND, L. EX. PIPE

18374-ML4-003

$16.36

11

BAND, L. EX. PIPE

18374-MN1-670

$14.42

12

BAND, EX. PIPE COVER

18376-MCR-D01

$7.08

13

BAND, EX. PIPE COVER

18376-MCR-D01

$7.08

14

GASKET, EX.

18391-MB0-891

$17.92

15

GASKET, MUFFLER

18391-ML8-000

$9.49

16

MUFFLER, RR.

18410-MCR-A01

$553.90

17

BRACKET, MUFFLER

18415-MCR-A01

Unavailable

18

PIPE, RR. EX.

18420-MCR-D01

$175.54

19

COVER, RR. EX. PIPE

18425-MCR-D01

Unavailable

20

BRACKET, MUFFLER

18455-MCR-A00

Unavailable

21

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

22

RUBBER, MUFFLER MOUNTING

50608-KV0-000

$6.22

23

BOLT, SPECIAL FLANGE SOCKET (6X20)

90102-MK4-000

$3.18

24

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

25

NUT, CAP (8MM)

90304-ME1-670

$5.94

26

WASHER (8.3MM)

90534-011-000

$1.49

27

NUT, FLANGE (8MM)

94050-08070

$1.49

28

NUT, FLANGE (8MM)

94050-08070

$1.49

29

NUT-WASHER (5MM)

94070-05080

$1.49

30

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

31

BOLT, FLANGE (8X60)

95701-08060-07

$1.97
