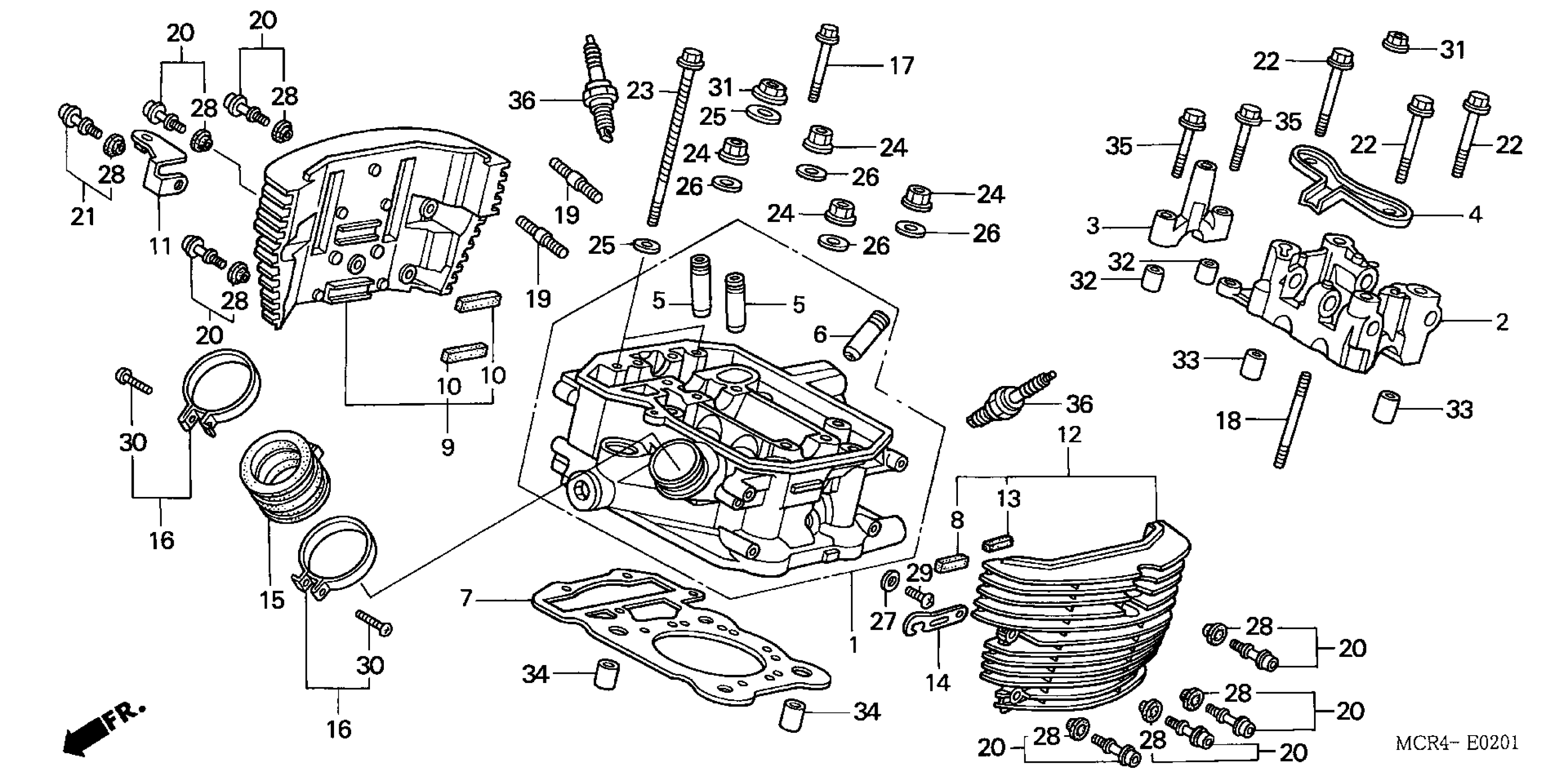

Honda VT750DCAA (06) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-6M000001 TO JH2RC440-6M009999 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MBA-710

$491.05

2

HOLDER, CAMSHAFT

12223-MV1-000

Unavailable

3

HOLDER, SIDE CAMSHAFT

12225-MF5-000

$53.10

4

PLATE, VALVE OIL GUIDE

12226-MF5-000

$20.05

5

GUIDE, IN. VALVE (OVER SIZE)

12231-MF5-305

$22.36

6

GUIDE, EX. VALVE (OVER SIZE)

12241-MF5-315

$20.56

7

GASKET, CYLINDER HEAD

12251-MN8-911

$36.47

8

RUBBER A, SEAT

12262-MBA-300

Unavailable

9

FIN, FR. CYLINDER HEAD (L/R)(RR)

12270-MBA-710

$159.13

10

RUBBER B, SEAT

12272-MBA-300

Unavailable

11

STAY, RR. AIR CLEANER MOUNT

12285-MBA-000

$7.93

12

FIN, L. RR. CYLINDER HEAD

12290-MBA-710

Unavailable

13

RUBBER C, SEAT

12292-MBA-300

$2.11

14

STAY, CHOKE CABLE

12295-MBA-000

$6.20

15

INSULATOR, CARBURETOR

16211-MAW-600

$26.57

16

BAND A, INSULATOR

16218-MN8-750

$9.68

17

BOLT, FLANGE

90004-GHB-770

$5.44

18

BOLT, STUD (8X50)

90013-MF5-000

$4.97

19

BOLT, STUD

90016-MBA-000

$4.39

20

BOLT ASSY., SPECIAL (6X22)

90020-MCL-000

Unavailable

21

BOLT ASSY., SPECIAL (6X25)

90030-MBA-000

$9.07

22

BOLT, FLANGE

90066-MC7-000

$4.05

23

BOLT, CYLINDER

90081-MZ8-H01

$10.31

24

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

24

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

24

NUT, FLANGE (10MM)

94050-10000

$1.59

25

WASHER (8MM)

90401-MZ8-H00

$2.51

26

WASHER (10MM)

90410-HC4-000

$3.81

27

WASHER, SEALING (5MM)

90452-323-000

$1.59

28

RUBBER, MOUNTING

90543-MBA-000

$2.92

29

SCREW, PAN (5X8)

93500-05008-0A

$1.49

30

SCREW, PAN (5X25)

93500-05025-0G

$1.49

31

NUT, FLANGE (8MM)

94050-08080

$1.49

32

PIN, DOWEL (8X14)

94301-08140

$2.25

33

PIN, DOWEL (10X16)

94301-10160

$2.28

34

PIN, DOWEL (14X20)

94301-14200

$2.28

35

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

36

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

36

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

36

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

36

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

36

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

36

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
