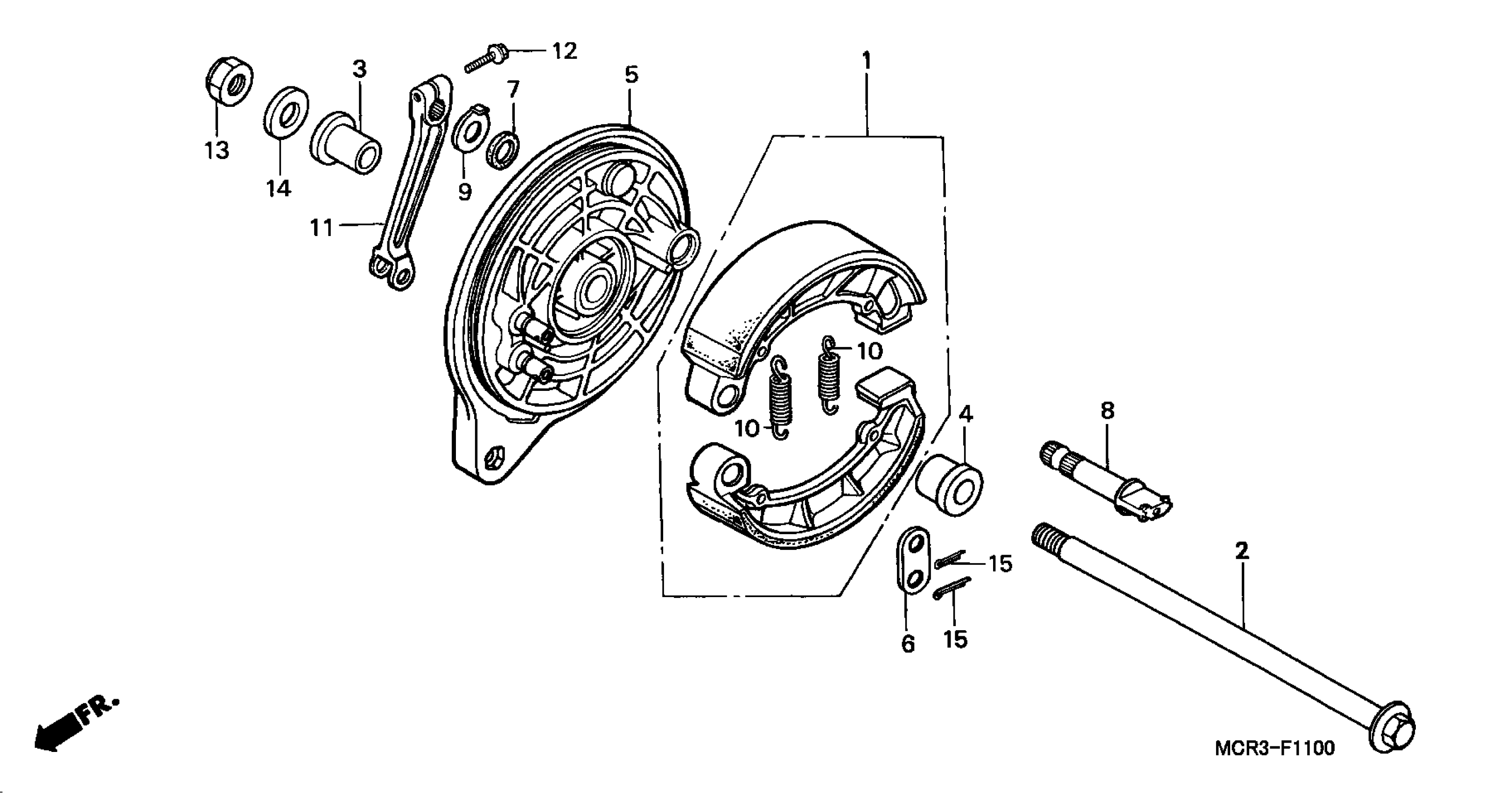

Honda VT750DCAA (03) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-3M700001 TO JH2RC440-3M799999 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB)

06430-MCL-700

$58.34

AXLE, RR. WHEEL

42301-MM5-000

$100.43

COLLAR, RR. WHEEL SIDE

42311-MCL-000

Unavailable

COLLAR, L. RR. WHEEL SIDE

42312-MCL-000

Unavailable

PANEL, RR.

43100-MJ1-832

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE This part replaces 43141-MCL-000.

43141-MCL-003

$32.05

CAM, RR. BRAKE

43141-MCL-003

$32.05

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MJ1-000

$57.50

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

NUT, U (18MM)

90305-KZ4-891

$15.83

WASHER (18X32X2)

90401-MBA-000

$4.65

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49
