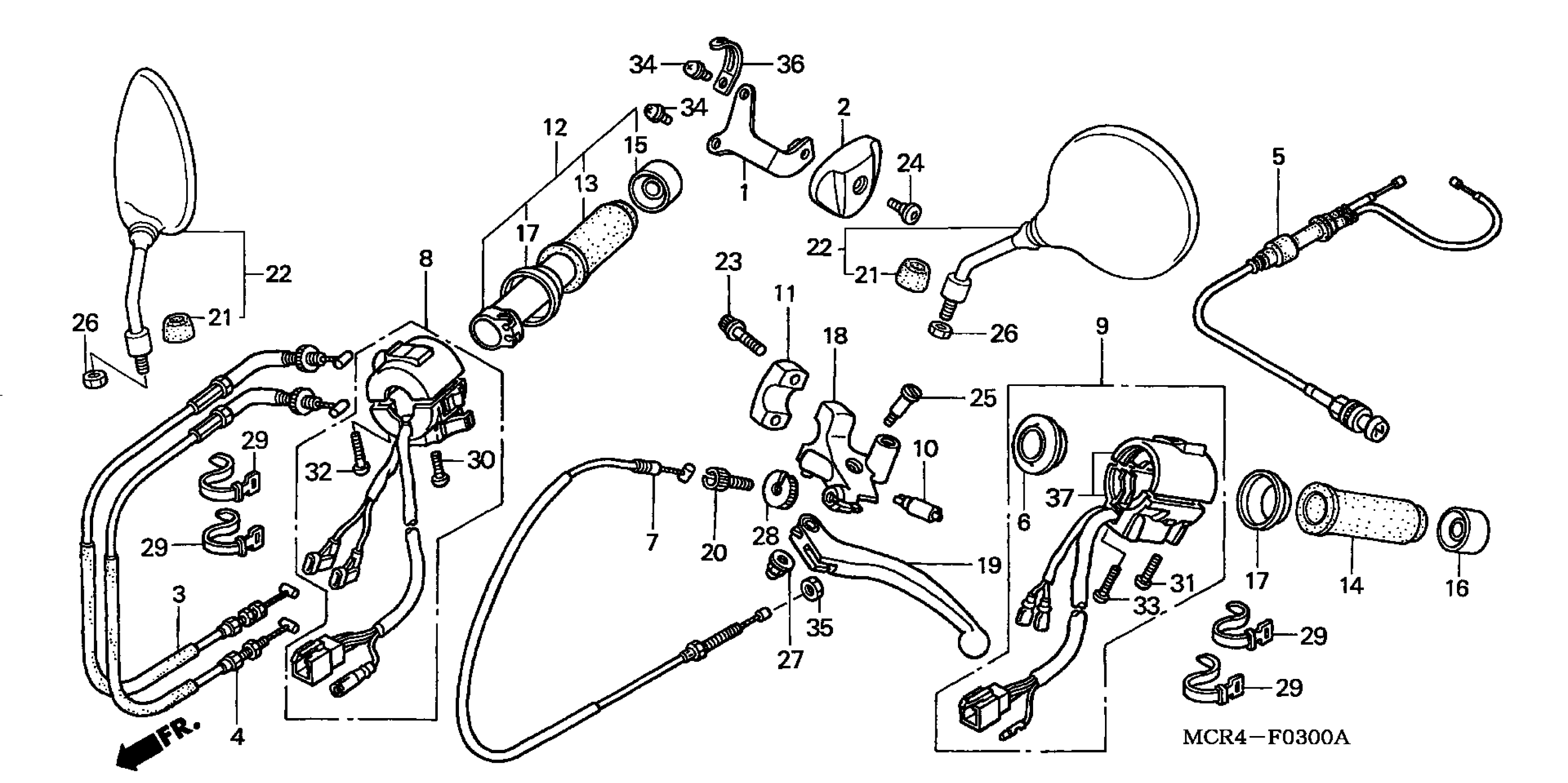

Honda VT750DCA (02) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-2K600001 TO JH2RC440-2K609999 SWITCH + CABLE Diagram

#

Description
Price

1

STAY, THROTTLE LINK COVER

16111-MCL-000

Unavailable

2

COVER, THROTTLE LINK

16112-MR1-000

$20.78

3

CABLE A, THROTTLE

17910-MCL-000

Unavailable

4

CABLE B, THROTTLE

17920-MCL-000

Unavailable

5

CABLE, CHOKE

17950-MBA-000

$52.16

6

ADAPTER

17962-MR1-000

$17.70

7

CABLE, CLUTCH

22870-MCL-000

Unavailable

8

SWITCH SET, STARTER STOP This part replaces 35013-MCL-000.

35013-MCL-020

Unavailable

8

SWITCH SET, STARTER STOP This part replaces 35013-MCL-010.

35013-MCL-020

Unavailable

8

SWITCH SET, STARTER STOP

35013-MCL-020

Unavailable

9

SWITCH SET, TURN SIGNAL

35020-MBK-750

Unavailable

9

SWITCH SET, TURN SIGNAL This part replaces 35020-MCR-A00.

35020-MBK-750

Unavailable

10

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$20.11

11

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$25.01

12

GRIP, R. HANDLE

53145-MCL-000

$45.69

12

GRIP, R. HANDLE This part replaces 53145-MCL-305.

53145-MCL-000

$45.69

13

GRIP,R HANDLE(COO This part replaces 53165-MCL-300.

53165-MJA-305

$35.46

14

GRIP, L. HANDLE

53166-MCL-300

$24.57

14

GRIP, L. HANDLE This part replaces 53166-MCL-305.

53166-MCL-300

$24.57

15

CAP, R. GRIP END

53167-MCL-000

$7.88

16

CAP, L. GRIP END

53168-MCL-300

$7.88

17

RING, GRIP

53170-MCL-300

$6.43

18

BRACKET, HANDLE LEVER

53172-MR1-000

$32.76

19

LEVER, L. HANDLE

53178-MAH-000

$17.39

19

LEVER, L. HANDLE This part replaces 53178-MFR-305.

53178-MAH-000

$17.39

20

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

21

COVER, LOCK NUT

88113-KN8-000

$5.38

22

MIRROR

88210-MCR-A00

$72.89

23

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

24

SCREW A, COWL SETTING (LOWER)

90105-MJ6-841

$2.79

25

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

26

NUT, HEX. (10MM)

94031-10020

$0.90

27

NUT, CAP (6MM)

90201-415-000

$1.99

28

NUT, FIXING

90321-MA6-750

$9.59

29

BAND, WIRE HARNESS

90652-MB0-000

$3.00

30

SCREW, PAN (5X20)

93500-05020-0B

$1.18

31

SCREW, PAN (5X22)

93500-05022-0B

$1.21

32

SCREW, PAN (5X25)

93500-05025-0B

$1.53

33

SCREW, PAN (5X32)

93500-05032-0B

$1.34

34

SCREW-WASHER (4X6)

93892-04006-00

$0.54

35

NUT, HEX. (8MM)

94002-08070-0S

$1.21

36

CLIP (4X40)

94591-44000

$2.13
