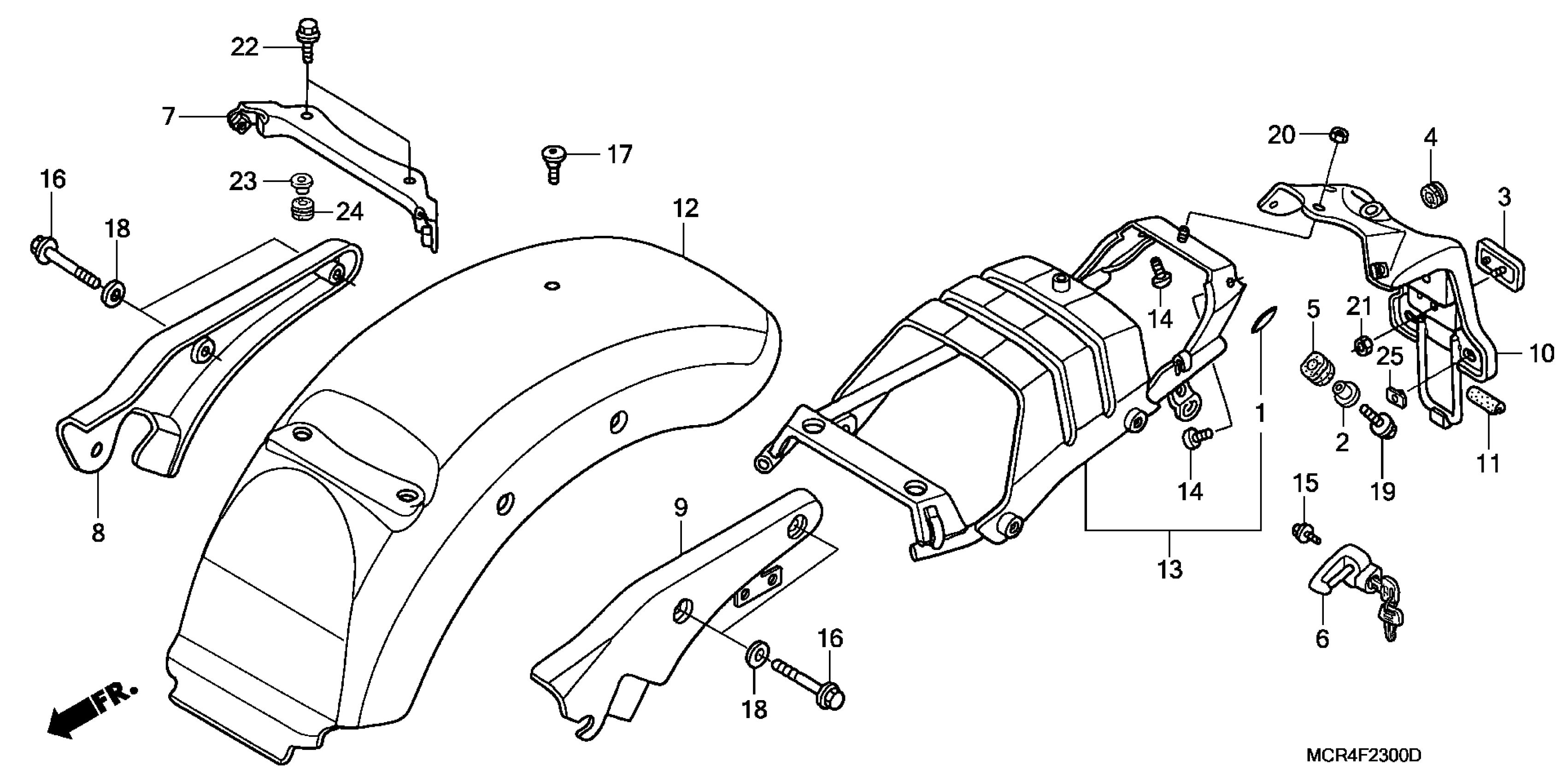

Honda VT750DCA (02) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-2K600001 TO JH2RC440-2K609999 REAR FENDER Diagram

#

Description
Price

1

CUSHION

19105-MR8-300

$2.34

2

COLLAR, TAILLIGHT MOUNTING

33718-GE3-760

Unavailable

3

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

4

GROMMET B, TUBE

36038-657-000

Unavailable

5

RUBBER, TAILLIGHT SETTING

50451-GB6-920

$2.69

6

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.51

6

HOLDER ASSY., HELMET (COO)

50710-GCN-305

$26.51

7

STAY, SEAT

77201-MCL-000

Unavailable

8

GRAB RAIL, R.

77330-MCL-000

$103.41

9

GRAB RAIL, L.

77340-MCL-000

Unavailable

10

FENDER A, RR.

80105-MCR-A00

$94.04

11

TUBE, PROTECTOR

80106-MCL-000

Unavailable

12

FENDER SET, RR. (TYPE1) (WL)

80110-MCR-A00ZA

Unavailable

12

FENDER SET, RR. (TYPE2) (WL)

80110-MCR-A00ZB

Unavailable

12

FENDER SET, RR. (TYPE3) (WL)

80110-MCR-A10ZA

Unavailable

13

FRAME, RR.

80125-MCR-D00

Unavailable

14

SCREW, PAN (6X10)

90106-GBB-710

$1.16

15

BOLT, HELMET HOLDER SETTING

90107-MJ1-000

$5.01

16

BOLT, SPECIAL (10X44)

90130-MCR-A00

$4.81

17

BOLT, SEAT SETTING

90190-MCL-000

$2.74

18

WASHER, PLAIN (10MM)

90502-MM8-610

$2.80

19

SCREW, PAN (5X18)

93500-05018-0H

$0.65

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

20

NUT, HEX. (6MM)

94001-06200-0S

$1.21

21

NUT, FLANGE (5MM)

94050-05080

$0.34

22

BOLT, FLANGE (8X16)

95701-08016-08

$1.62

23

WASHER, CHAIN CASE SETTING

90563-KC5-000

$2.03

24

RUBBER, CONTROL BOX

90852-898-000

Unavailable

25

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67
