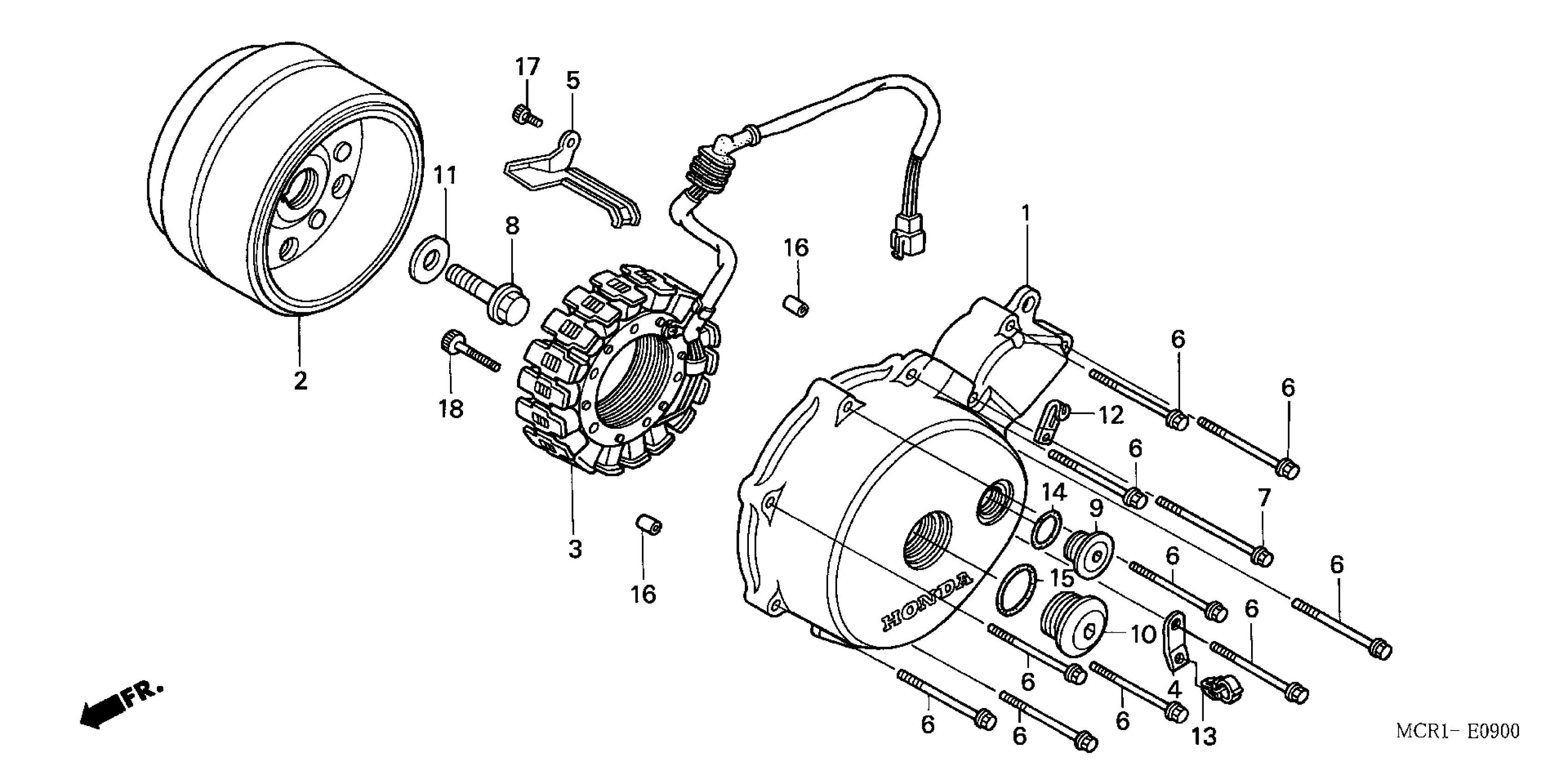

Honda VT750DCA (02) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-2K600001 TO JH2RC440-2K609999 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-MBA-A40

$184.53

FLYWHEEL (DENSO)

31110-MBA-004

Unavailable

STATOR (DENSO)

31120-MBA-004

$418.21

STAY, CLIP

32105-MBA-000

$3.38

CLAMP, ALTERNATOR WIRE

32961-MBA-000

Unavailable

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X45) (NSHF)

90006-GHB-720

$1.87

BOLT, FLANGE

90025-MN8-000

$13.74

CAP (22MM)

90084-MR1-700

$33.31

CAP (30MM)

90087-MR1-700

$33.31

WASHER (12.5X34X5)

90402-MCL-000

$4.62

CLIP (4X50)

90601-KJ9-000

$3.08

CLIP, HARNESS

90659-734-K51

$2.13

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, SOCKET (6X12) This part replaces 96700-06012-00.

96600-06012-00

$1.74

BOLT, SOCKET (6X32)

96700-06032-00

$1.80
