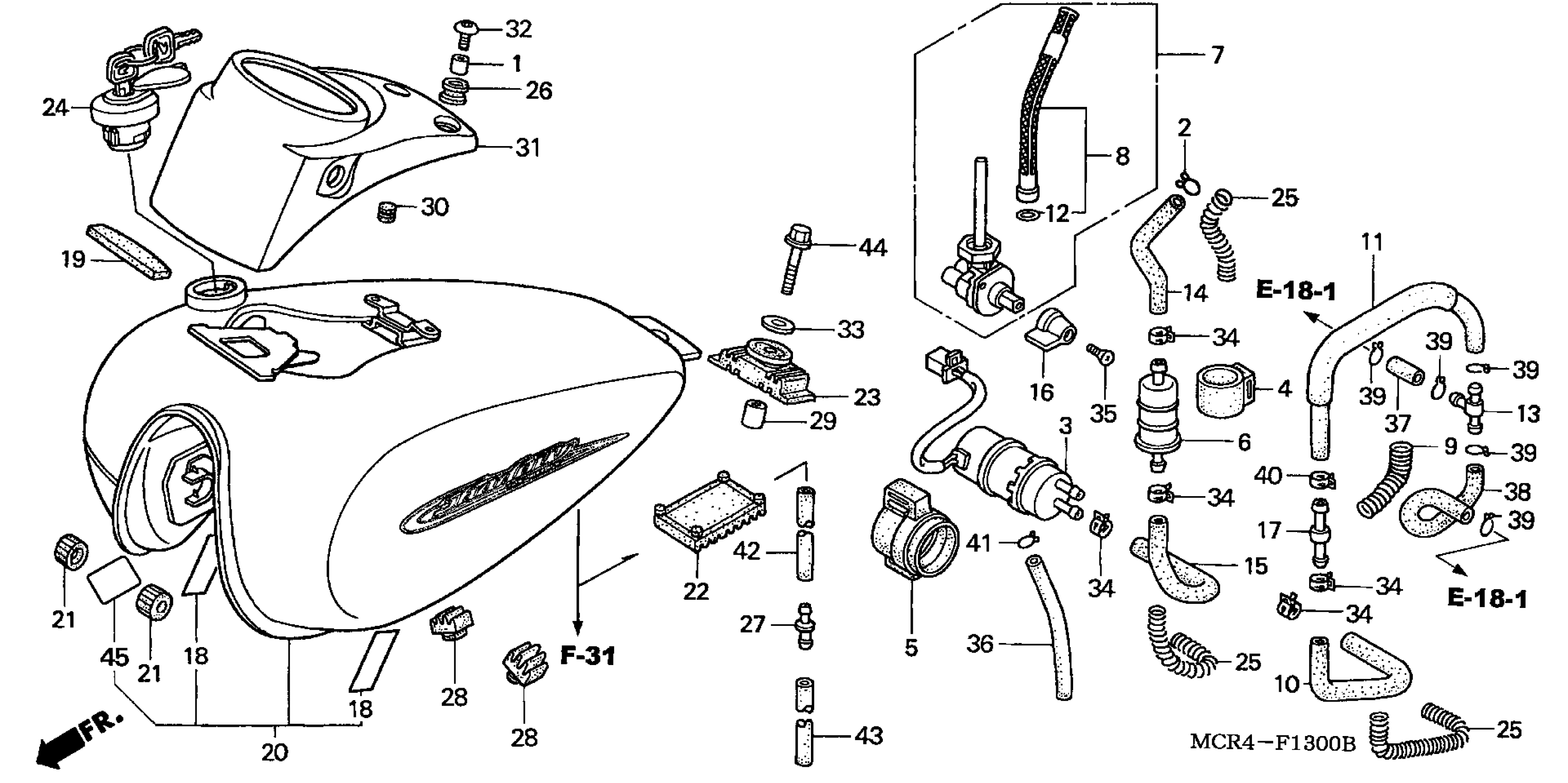

Honda VT750DCA (02) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-2K600001 TO JH2RC440-2K609999 FUEL TANK + FUEL PUMP Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER

11346-371-300

$10.56

2

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

3

PUMP ASSY., FUEL (MITSUBISHI) (MSDS) This part replaces 16710-MBA-611.

16710-MBA-612

$182.38

3

PUMP ASSY., FUEL (MITSUBISHI) (MSDS)

16710-MBA-612

$182.38

4

HOLDER, STRAINER

16711-MF2-000

$17.60

5

RUBBER, FUEL PUMP MOUNTING

16711-MZ7-000

$23.80

6

FILTER, FUEL

16900-MG8-003

$23.49

7

PETCOCK ASSY. This part replaces 16950-MCR-A02.

16950-MCR-A03

$95.64

7

PETCOCK ASSY.

16950-MCR-A03

$95.64

8

SCREEN SET, FUEL STRAINER

16952-MCL-013

$21.38

9

WIRE B, GUARD

16952-MF5-000

$13.34

10

TUBE C, FUEL

16953-MCL-000

$9.49

11

TUBE D, FUEL

16955-MBA-000

$9.55

12

O-RING

16958-KM9-005

$3.89

13

JOINT, FUEL TUBE

16958-MB0-000

$12.10

14

TUBE A, FUEL

16961-MCL-000

$5.66

15

TUBE B, FUEL

16962-MCL-000

$6.89

16

LEVER, PETCOCK

16963-MY5-610

$14.29

17

JOINT, FUEL TUBE

16966-MR1-000

$7.57

18

TAPE, TANK GUARD

17506-GCS-300

$3.31

19

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.35

20

TANK SET, FUEL (TYPE1) (WL)

17520-MCR-A00ZA

Unavailable

20

TANK SET, FUEL (TYPE2) (WL)

17520-MCR-A00ZB

Unavailable

20

TANK SET, FUEL (TYPE3) (WL)

17520-MCR-A10ZD

Unavailable

21

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

21

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

22

CUSHION, RR. FUEL TANK

17612-MCL-000

$13.97

23

CUSHION, RR. FUEL TANK

17613-KY1-000

$11.67

24

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

25

WIRE, GUARD

17672-MY1-000

$6.93

26

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

27

JOINT, TUBE

19103-ML7-000

$6.22

28

RUBBER, STAND STOPPER

50505-GR1-000

$4.78

29

COLLAR, CUSHION RUBBER BUSH (SHOWA)

52486-074-000

$3.77

30

PLUG, HOLE

61110-388-000

$3.24

31

COVER, METER This part replaces 83510-MCL-000.

83510-MCL-010

$133.54

32

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.33

33

WASHER (8.5X28)

90534-MV4-000

$2.89

34

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

35

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

36

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

95001-45003-60M

$36.67

37

BULK HOSE, FUEL (7.5X8000) (7.5X35)

95001-75008-60M

$103.82

38

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$103.82

39

CLIP, TUBE (B12)

95002-02120

$2.00

40

CLAMP, TUBE (D12)

95002-41200-08

$2.34

41

CLIP, TUBE (C9)

95002-50000

$1.49

42

BULK HOSE, VACUUM (4.5X1000) (4.5X540)

95005-45001-20M

$34.14

43

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

44

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

45

TAPE, TANK GUARD

17528-MR4-900

$2.33
