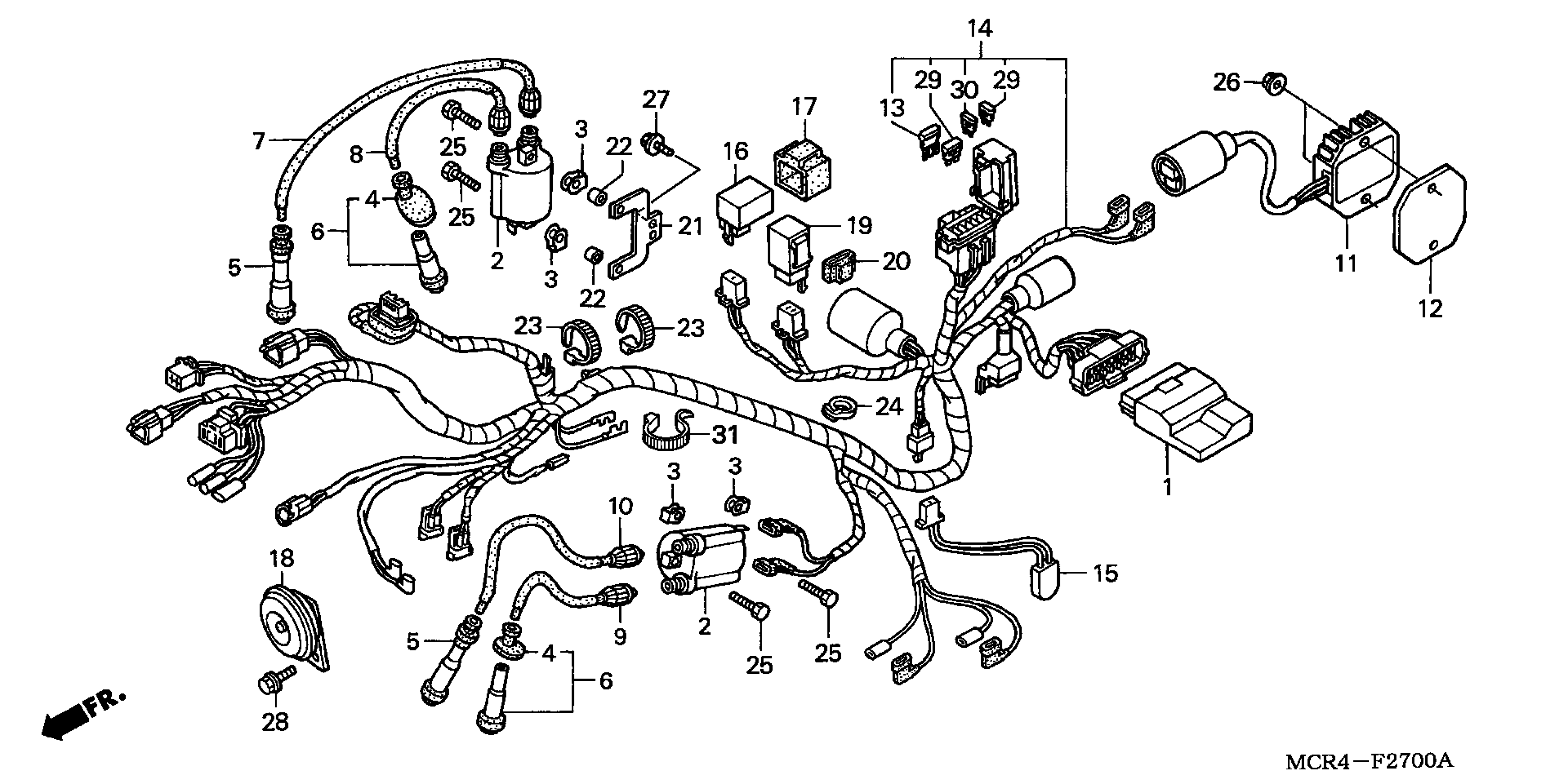

Honda VT750DCA (01) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-1K400001 TO JH2RC440-1K449999 WIRE HARNESS Diagram

MODULE ASSY., IGNITION CONTROL (CDI)

30410-MCR-A01

Unavailable

COIL, IGNITION

30510-MCC-003

$89.93

SPACER, IGNITION COIL

30520-ML7-000

$3.77

SEAL, PLUG CAP

30605-MF5-000

$20.15

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$36.46

WIRE, R. FR. IGNITION (L=670MM) This part replaces 30751-MCL-003.

30751-MCR-A61

$20.20

WIRE, R. FR. IGNITION (L=670MM)

30751-MCR-A61

$20.20

WIRE, L. FR. IGNITION (L=430MM)

30752-MCL-003

$16.50

WIRE, L. RR. IGNITION (L=600MM)

30753-MCL-003

$18.70

WIRE, R. RR. IGNITION (L=380MM)

30754-MCL-003

Unavailable

RECTIFIER ASSY., REGULATOR This part replaces 31600-MCR-A00.

31600-MCR-A01

$261.33

RECTIFIER ASSY., REGULATOR

31600-MCR-A01

$261.33

SPACER, REGULATOR RECTIFIER

31605-MCR-D00

$10.80

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MCR-A00

Unavailable

SWITCH ASSY., THERMOSTAT

35250-GBJ-J71

Unavailable

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

HORN (HIGH) This part replaces 38110-MCR-A00.

38110-MCR-A01

Unavailable

HORN (HIGH)

38110-MCR-A01

Unavailable

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

SUSPENSION, TURN SIGNAL RELAY

38302-MCR-D00

Unavailable

STAY, IGNITION COIL

50172-MCL-000

Unavailable

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49
