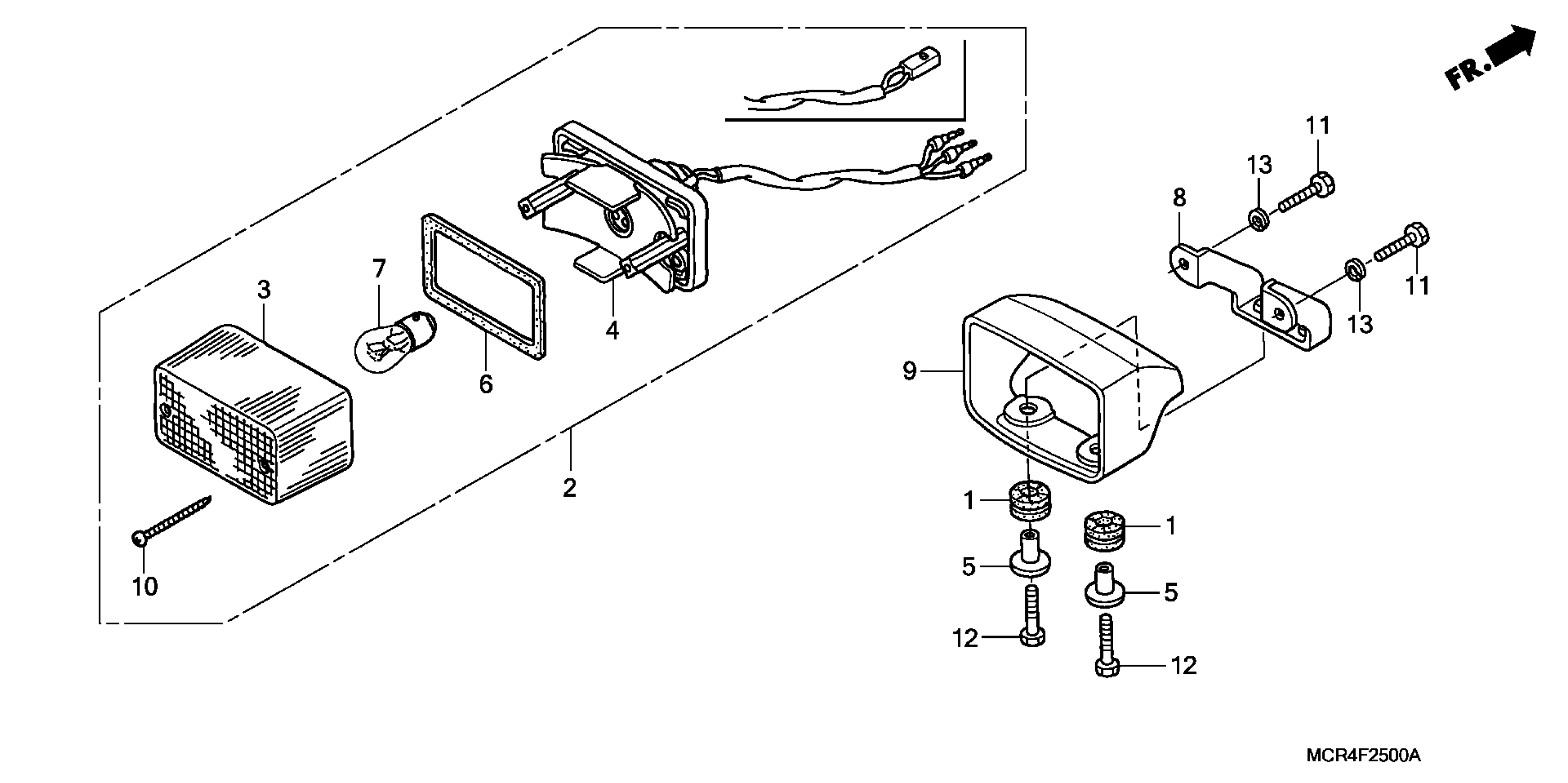

Honda VT750DCA (01) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-1K400001 TO JH2RC440-1K449999 TAILLIGHT Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

TAILLIGHT UNIT (12V 32/3CP)

33701-MCR-A01

Unavailable

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

LENS, TAILLIGHT (COO) (STANLEY)

33702-MGR-305

$27.88

SOCKET, TAILLIGHT

33703-MCR-A01

Unavailable

COLLAR, TAILLIGHT MOUNTING

33707-MCR-A00

$4.16

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

STAY, TAILLIGHT

80128-MCR-A00

$7.52

COVER, TAILLIGHT

80350-MCR-A00

$51.36

SCREW, TAPPING (4X40)

90105-GAM-000

$4.92

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

BOLT, HEX. (5X25)

92101-05025-0G

$1.49

WASHER, SPRING (5MM)

94111-05800

$1.49
