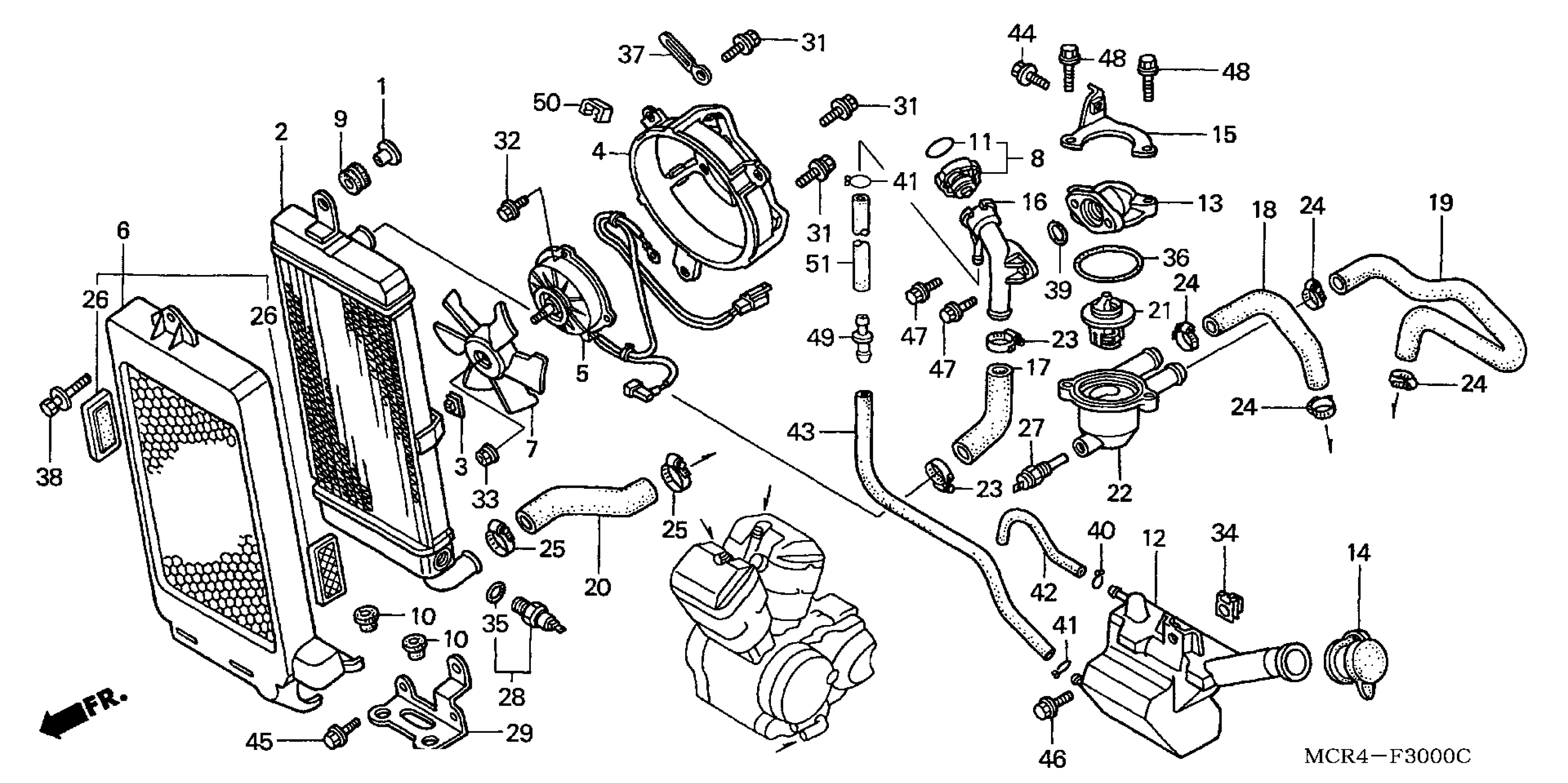

Honda VT750DCA (01) SHADOW SPIRIT 750, JPN, VIN# JH2RC440-1K400001 TO JH2RC440-1K449999 RADIATOR Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$5.87

2

RADIATOR (TOYO)

19010-MBA-013

$538.43

3

NUT, SETTING (6MM)

19014-KEA-003

$2.95

4

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$49.69

4

SHROUD (COO)

19015-MBA-305

$49.69

5

MOTOR ASSY., FAN

19030-MCL-003

Unavailable

6

GRILLE, RADIATOR

19035-MBA-670

Unavailable

7

FAN, COOLING (TOYO)

19040-MF5-751

$58.41

8

CAP, RADIATOR

19045-MY3-621

$37.14

8

CAP, RADIATOR This part replaces 19045-MY3-671.

19045-MY3-621

$37.14

9

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.83

10

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.31

11

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.49

11

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$8.49

12

TANK ASSY., RESERVE This part replaces 19101-MBA-000.

19101-MBA-010

$27.52

13

CAP, THERMOSTAT

19103-MBA-000

$45.47

14

CAP, RESERVE TANK

19104-MB0-700

$11.16

15

STAY, THERMOSTAT CASE

19105-MCL-000

$4.66

16

NECK, FILLER

19106-MCL-003

Unavailable

17

HOSE, RADIATOR (UPPER)

19107-MCL-000

Unavailable

18

HOSE, FR. OUTLET WATER

19108-MCL-000

Unavailable

19

HOSE, RR. OUTLET WATER

19109-MBA-000

$28.03

20

HOSE, RADIATOR (LOWER)

19115-MBA-000

$22.35

21

THERMOSTAT ASSY.

19300-KE8-000

$56.87

22

CASE, THERMOSTAT

19311-MBA-000

$60.16

23

CLAMP, WATER HOSE

19505-ML3-770

$6.75

24

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

25

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

26

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$26.01

27

SWITCH ASSY., THERMO

37760-MAV-003

$59.75

28

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$66.01

29

STAY, RADIATOR

50175-MBA-000

$15.81

31

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

32

BOLT, FLANGE (5X10)

90196-MN5-000

$2.06

33

NUT, SPECIAL (5MM)

90303-MBB-003

$3.47

34

NUT, CLIP (6MM)

90305-GK8-000

$2.21

35

O-RING (13.5X1.4)

91307-PH7-660

$2.80

35

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.80

36

O-RING (47.5X2)

91311-KE8-000

$2.21

37

CLIP (2X70)

91413-679-000

$8.51

38

BOLT-WASHER (6X40)

93401-06040-07

$1.72

39

O-RING (23X2.4)

94608-30000

$1.10

40

CLIP, TUBE (C9)

95002-50000

$1.16

41

CLIP, TUBE (C11)

95002-70000

$1.51

42

BULK HOSE, VACUUM (5X3000) (5X170)

95005-50003-30M

$22.30

43

BULK HOSE, VACUUM (7X3000) (7X420)

95005-70003-30M

$29.04

44

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

45

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

46

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

47

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

48

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

49

JOINT, BREATHER TUBE

17359-419-670

$1.90

50

CLIP, HARNESS (TOYO)

19017-PK1-004

$8.91

51

BULK HOSE, VACUUM (7X3000) (7X200)

95005-70003-30M

$29.04
