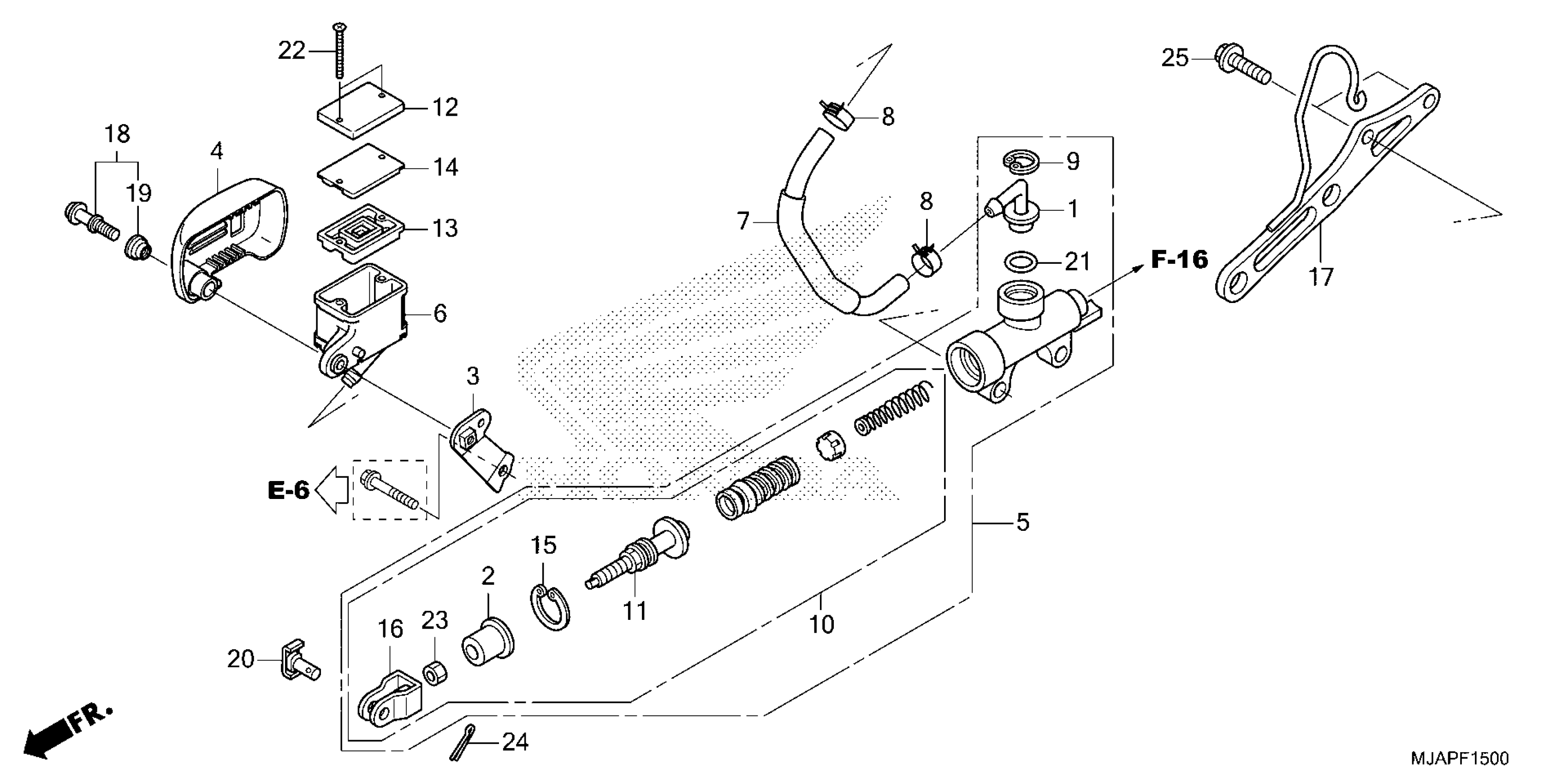

Honda VT750CSAC (24) MOTORCYCLE, JPN, VIN# JH2RC508-RK200001 TO JH2RC508-RK999999 REAR BRAKE MASTER CYLINDER Diagram

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$8.94

BOOT

43504-MB2-006

$9.01

STAY, OIL CUP

43505-MEG-H10

$9.07

COVER, OIL CUP

43506-MEG-H10

$24.54

MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN) This part replaces 43510-MEG-H11.

43510-MJA-305

$171.41

MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)

43510-MJA-305

$171.41

CUP, OIL

43511-KV3-831

$21.29

HOSE, RR. MASTER CYLINDER

43512-MEG-H11

$30.49

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

PISTON SET, RR. MASTER CYLINDER

43520-MEG-H11

$81.33

ROD, PUSH (NISSIN)

43530-MW0-006

$27.93

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-MAH-671

$13.01

BRACKET, RR. BRAKE MASTER CYLINDER

50616-MEG-H10

$50.94

BOLT ASSY., SPECIAL (6X26.6)

90110-MEG-H10

$20.12

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.80

PIN, JOINT

90751-MEH-000

$2.97

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

BOLT, FLANGE (6X20)

95701-06020-07

$1.48
