Description

Price

1

COLLAR, RADIATOR MOUNTING

19052-MEG-H10

$9.59

2

RADIATOR (COO)

19010-MFE-305

$456.19

2

RADIATOR (COO) This part replaces 19010-MFE-641.

19010-MFE-305

$456.19

3

NUT, SETTING (6MM)

19014-KEA-003

$2.95

4

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$49.69

5

CLIP, HARNESS (T.RAD)

19017-PK1-004

$8.91

6

MOTOR ASSY., FAN

19030-MFE-641

$238.51

7

GRILLE, RADIATOR

19032-MEG-H10

$88.60

8

CAP, RADIATOR

19037-GEE-710

$27.80

9

FAN, COOLING (TOYO)

19040-MF5-751

$58.41

10

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

11

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.83

12

HOSE, BYPASS

19071-MFE-640

$22.06

13

TANK, RESERVE

19101-MEG-000

$27.81

14

HOSE, RESERVE TANK

19102-MEG-000

$8.04

15

CAP, THERMOSTAT

19103-MBA-000

$45.47

16

CAP, RESERVE TANK

19104-MB0-700

$11.16

17

STAY, THERMOSTAT CASE

19105-MFE-640

$3.88

18

NECK, FILLER

19106-MFE-641

$30.15

19

HOSE, RADIATOR (UPPER)

19107-MFE-640

$9.03

20

HOSE, FR. OUTLET WATER

19108-MFE-640

$10.44

21

HOSE, RR. OUTLET WATER

19110-MFE-640

$12.59

22

MOUNT, RADIATOR (LOWER)

19112-MF5-840

$4.88

23

HOSE A, RADIATOR (LOWER)

19115-MEG-A60

$11.74

24

HOSE B, RADIATOR (LOWER)

19116-MEG-A60

$14.68

25

THERMOSTAT ASSY.

19300-MCH-A00

$43.86

26

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

27

CASE, THERMOSTAT

19311-MFE-640

$53.26

28

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48

29

CLAMP, WATER HOSE

19505-ML3-770

$6.75

30

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

31

JOINT, THREE WAY HOSE

19507-MFE-640

$5.71

32

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

33

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$28.22

34

BOLT, FLANGE (6MM)

90111-162-000

$2.66

35

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

36

BOLT, FLANGE (5X10)

90196-MBB-003

$2.46

37

NUT, SPECIAL (5MM)

90303-MBB-003

$3.47

38

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

39

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.41

40

O-RING (23X2.4)

94608-30000

$1.10

41

CLIP, TUBE (C11)

95002-70000

$1.51

42

BULK HOSE, VACUUM (7X3000) (7X730)

95005-70003-30M

Unavailable

43

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

44

BOLT, FLANGE (6X28)

95701-06028-07

$1.04

45

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

46

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

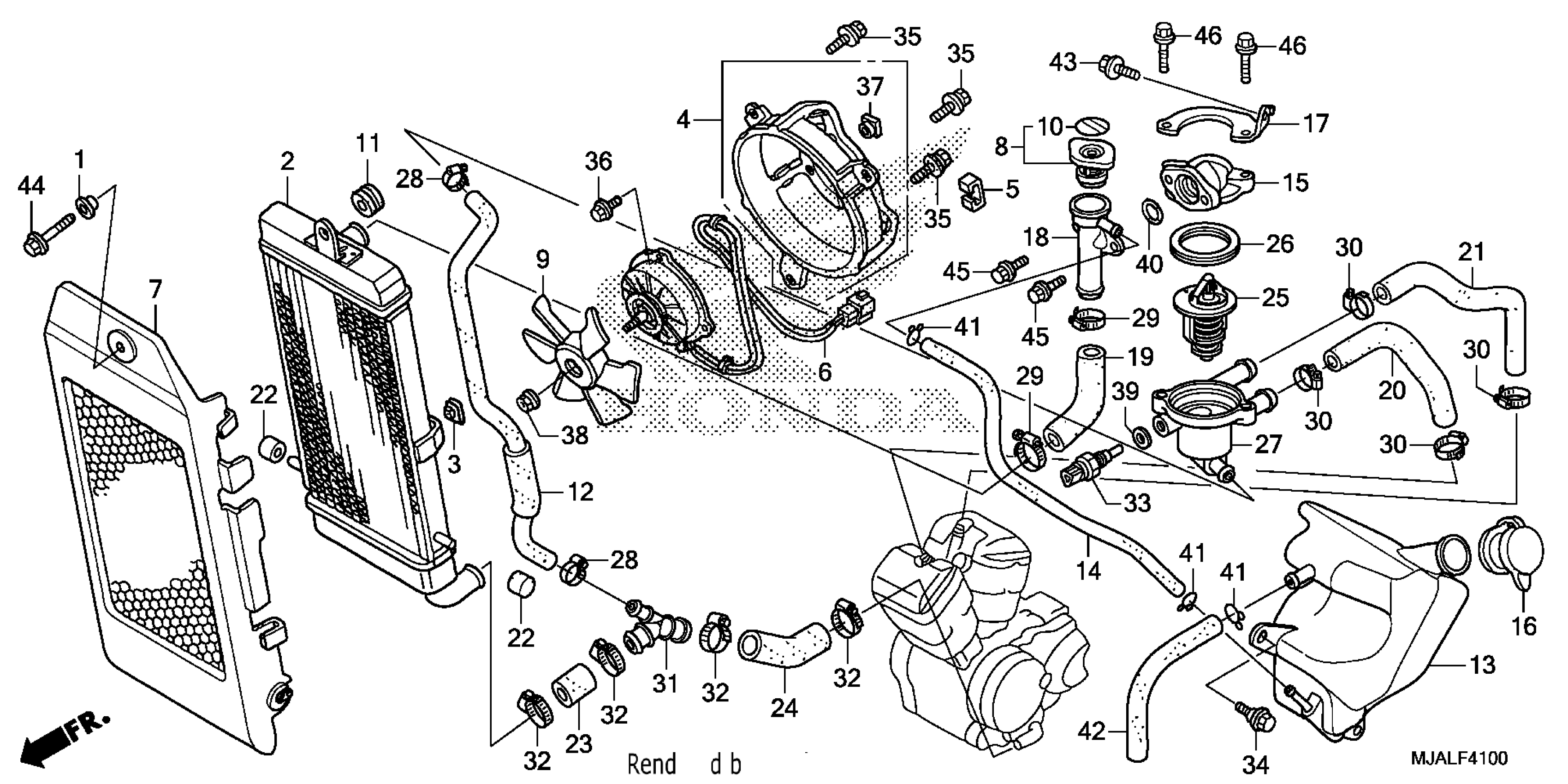

Honda VT750CSAC (20) MOTORCYCLE, JPN, VIN# JH2RC508-LK800001 TO JH2RC508-LK899999 RADIATOR Diagram
