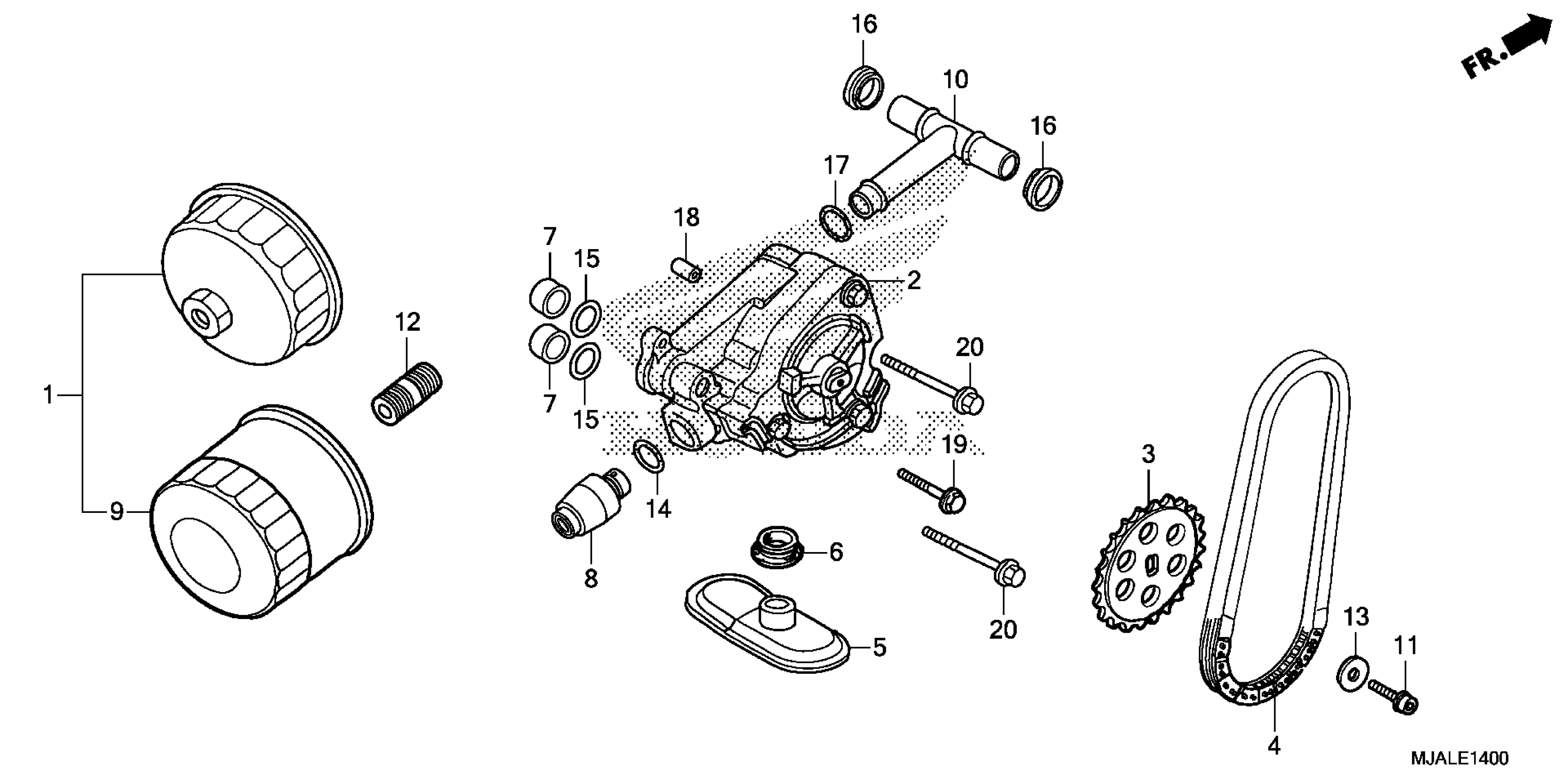

Honda VT750CSAC (20) MOTORCYCLE, JPN, VIN# JH2RC508-LK800001 TO JH2RC508-LK899999 OIL PUMP Diagram

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MFE-A41

$146.64

SPROCKET, OIL PUMP DRIVEN (27T)

15134-MEW-920

$37.92

CHAIN, OIL PUMP DRIVE (70L) (DAIDO)

15141-MEG-A21

$19.54

STRAINER, OIL

15153-MZ6-000

$18.77

GASKET, OIL STRAINER

15154-425-000

$7.99

COLLAR, O-RING

15155-300-000

$3.47

VALVE ASSY., RELIEF

15220-MFE-A41

$44.93

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 2517425. This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

PIPE, OIL

15510-MY1-000

$33.77

BOLT, FLANGE SOCKET (6X14)

90009-MZ8-H00

$1.56

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

WASHER (6X2.3)

90488-MB0-000

$4.37

O-RING (14.7X2.2)

91302-MGS-D30

$2.11

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

OIL SEAL, PIPE

91315-MF5-003

$4.13

O-RING (13X2.5)

91319-300-000

$5.07

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
