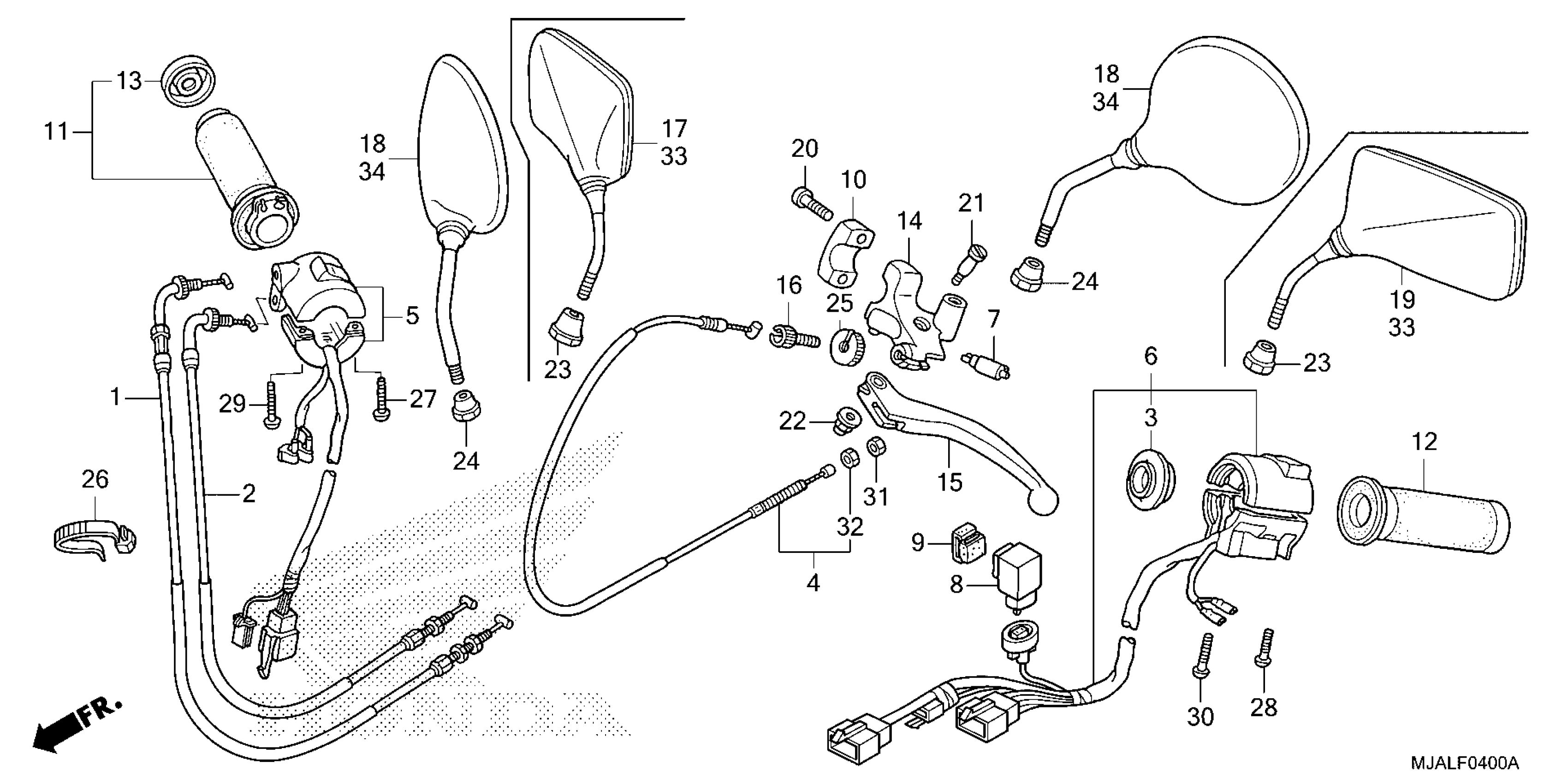

Honda VT750CSAC (20) MOTORCYCLE, JPN, VIN# JH2RC508-LK800001 TO JH2RC508-LK899999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MEG-D50

$24.88

2

CABLE B, THROTTLE

17920-MEG-D50

$23.38

3

ADAPTER

17962-MR1-000

$17.70

4

CABLE, CLUTCH

22870-MEG-A41

$24.61

5

SWITCH ASSY., STARTER STOP

35130-MEG-A42

$108.37

6

SWITCH ASSY., TURN SIGNAL

35200-MEG-A41

$111.80

7

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$20.11

8

RELAY, TURN SIGNAL (MITSUBA)

38301-MEG-000

$36.10

9

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.53

10

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.60

11

GRIP ASSY., R.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.63

14

BRACKET, HANDLE LEVER

53172-MEG-000

$29.15

15

LEVER, L. HANDLE

53178-MAH-000

$17.39

16

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

18

MIRROR

88210-MEG-670

Unavailable

20

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

21

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

22

NUT, CAP (6MM)

90201-415-000

Unavailable

24

NUT, LOCK

90314-MS9-000

$4.35

25

NUT, FIXING

90321-MA6-750

$9.59

26

BAND, WIRE HARNESS

90620-SB2-003

$25.84

27

SCREW, PAN (5X20)

93500-05020-0A

$0.82

28

SCREW, PAN (5X22)

93500-05022-0A

$0.62

29

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.28

30

SCREW, PAN (5X32)

93500-05032-0A

Unavailable

31

NUT, HEX. (8MM)

94002-08070-0S

$1.31

32

NUT, HEX. (8MM)

94030-08070

$0.44

34

MIRROR SET

88100-MJA-305

$75.06
